Runco CL-420 Owner’s Operating Manual 1 1.1 About This Manual This Owner’s Manual describes how to install, set up and operate the Runco Reflection CL-420 DLP Projector. Throughout this manual, the Runco Reflection CL-420 DLP Projector is referred to simply as the “CL-420.” Target AudienceRunco has prepared this manual to help home theater installers and end users get the most out of the CL-420. Runco has made every effort to ensure that this manual is accurate as of the date it was printed....
Page 12
Introduction 2 Runco CL-420 Owner’s Operating Manual Graphic Conventions: These symbols appear in numerous places throughout the manual, to emphasize points that you must keep in mind to avoid problems with your equipment or injury: 1.2 Using This Manual Use the following table to locate the specific information you need in this manual. TIPS highlight time-saving short cuts and helpful guidelines for using certain features. NOTES emphasize text with unusual importance or special significance....
Page 13
Introduction Runco CL-420 Owner’s Operating Manual 3 1.3 Description, Features and Benefits The Runco Reflection CL-420 DLP Projector combines a highly efficient optical light engine with broad installation and integration options. Runco has implemented a host of advancements into the projector’s light engine to take full advantage of its widescreen, high-definition SuperOnyx™ Digital Micromirror Device (DMD™) chip. The CL-420 features Enhanced GEN 3™ technology to produce deeper blacks, greater...
Page 14
Introduction 4 Runco CL-420 Owner’s Operating Manual Parts List Your CL-420 is shipped with the following items. If any items are missing or damaged, please contact your Runco dealer or Runco Customer Service at (800) 23-RUNCO. Reflection CL-420 DLP Projector Remote Control Unit and two (2), AAA-size batteries HD 15-pin VGA to HD 15-pin VGA cable DVI-D to DVI-D cable AC Power Cord Warranty information and registration card Runco CL-420 Owner’s Operating Manual (this document) Optional...
Page 15

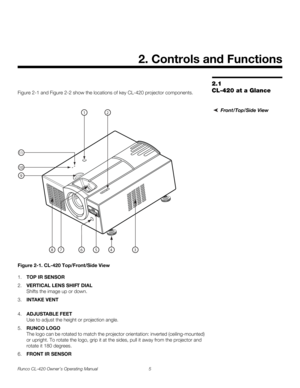

Runco CL-420 Owner’s Operating Manual 5 2.1 CL-420 at a GlanceFigure 2-1 and Figure 2-2 show the locations of key CL-420 projector components. Front/Top/Side View Figure 2-1. CL-420 Top/Front/Side View 1.TOP IR SENSOR 2.VERTICAL LENS SHIFT DIAL Shifts the image up or down. 3.INTAKE VENT 4.ADJUSTABLE FEET Use to adjust the height or projection angle. 5.RUNCO LOGO The logo can be rotated to match the projector orientation: inverted (ceiling-mounted) or upright. To rotate the logo, grip it at the...
Page 16

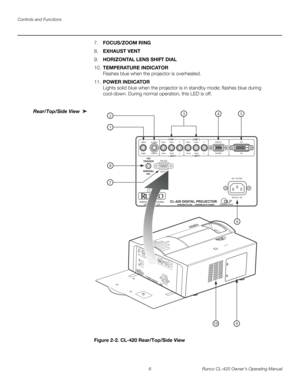

Controls and Functions 6 Runco CL-420 Owner’s Operating Manual 7.FOCUS/ZOOM RING 8.EXHAUST VENT 9.HORIZONTAL LENS SHIFT DIAL 10.TEMPERATURE INDICATOR Flashes blue when the projector is overheated. 11.POWER INDICATOR Lights solid blue when the projector is in standby mode; flashes blue during cool-down. During normal operation, this LED is off. Rear/Top/Side View Figure 2-2. CL-420 Rear/Top/Side View ➤ AC 11 0-240 AC 11 0-240 S-VIDEO VIDEO PR/CRPB/CBY PR/CRPB/CBY RGB-HDDVI S-VIDEO VIDEO...
Page 17
Controls and Functions Runco CL-420 Owner’s Operating Manual 7 1.COMPOSITE VIDEO INPUT Standard composite video input for connecting a VCR, camcorder, laser disc player or other composite video source. 2.S-VIDEO Standard S-Video input for connecting a DVD player, satellite receiver or Super VHS (S-VHS) VCR. 3.COMPONENT VIDEO (RCA connectors) Standard-definition (480i/576i) or high-definition (720p/1080i), YPrPb component input. This is the input for component video from sources such as DVD...
Page 18

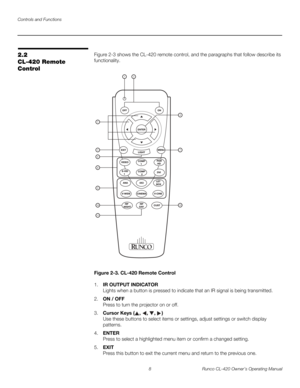

Controls and Functions 8 Runco CL-420 Owner’s Operating Manual 2.2 CL-420 Remote Control Figure 2-3 shows the CL-420 remote control, and the paragraphs that follow describe its functionality. Figure 2-3. CL-420 Remote Control 1.IR OUTPUT INDICATOR Lights when a button is pressed to indicate that an IR signal is being transmitted. 2.ON / OFF Press to turn the projector on or off. 3.Cursor Keys (, , , ) Use these buttons to select items or settings, adjust settings or switch display patterns....
Page 19
Controls and Functions Runco CL-420 Owner’s Operating Manual 9 6.LIGHT Press this button to illuminate the buttons. 7.MENU Press this button to access the on-screen display (OSD) controls. 8.Source Selection Buttons: VIDEO Press to switch to the Composite video input. COMP 1 (Component 1) Press to switch to the Component 1 (480i/576i/720p/1080i) video input. RGB HD Press to switch to the RGB HD input. S-VID 1 (S-Video) Press to switch to the S-Video input. COMP 2 (Component 2)...
