Samsung Gear VR 2016 User Manual




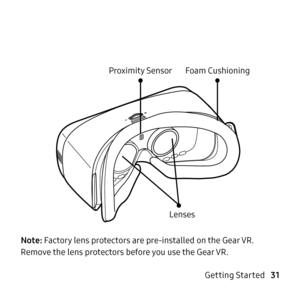

Proximity

 Sensor
Foam Cushioning
Lenses
Note: Factory lens protectors are pre-installed on the Gear VR.
Remove the lens protectors before you use the Gear VR.
Getting Started 31

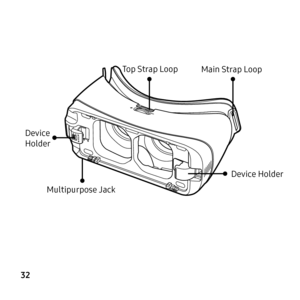

 Device Holder
Device
Holder
Multipurpose Jack  Main Strap Loop
Top Strap Loop
32








Controls
Back:
• Press to return to the previous screen.
• Press and hold to access the Universal menu. You can
view the status of the Gear VR and con�gure settings.
Home : Press to return to the Home screen.
Volume : Press to adjust the volume.
Focus Adjustment Wheel : Rotate to focus by adjusting
the distance between the mobile device and the Gear VR’s
lenses.
To u c hp a d :
• Swipe across to move around the screen. Move to the
next/previous item by swiping...




Setting Up the Device

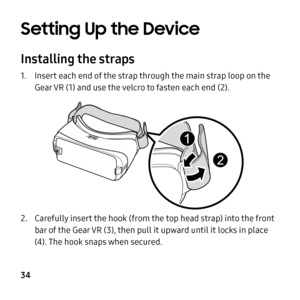

Installing the straps
1.	  Insert each end of the strap through the main strap loop on the
Gear VR (1) and use the velcro to fasten each end (2).
2.	 Carefully insert the hook (from the top head strap) into the front
bar of the Gear VR (3), then pull it upward until it locks in place
(4). The hook snaps when secured.
34





44
33
55
3.	  Slide the top head strap through the loop and use the velcro to
fasten it (5).
Note: The head strap contains a longer velcro strip and is used to
secure the front of the Gear VR frame.
Getting Started 35





Caution: Do not put on the Gear VR when you are wearing glasses.
Doing so may cause facial injuries. If you need corrective lenses, it is
recommended that you wear contact lenses when using the Gear VR.
If you are farsighted or there is a big difference between your left and
right eyes’ vision, wear corrective lenses before using the Gear VR.
36




Removing the straps
►	 Remove the top strap by pulling its loop towards the foam
cushioning. Then, remov
e the main strap.
Getting Started 37








Installing the Mobile Device
This section outlines the process for removing the cover, replacing
the device holder, and then installing the desired device type.
Removing the Cover
►	  Gently pull the
right device holder
outwards, then
gently remove the
protective front
cover.
Note:  Keep the enses clean and protect them from getting scratched.
If the lenses get dirty or steam up, clean them with the lens cleaning
cloth. When you are not wearing the Gear VR, do not place objects...





Connecting the Mobile Device
1.	 Pull the device holder (right) to the right (1), verify the Lock
Switch is in the correct “locked” position (2), and gently push the
device holder into either position A or B (3) depending on the size
of the mobile device screen you want to use.
2.	  Verify that your device volume is on and not set to silent.
3.	  Carefully insert the mobile device (face down) at an angle into
the center of the Gear VR and then insert the Gear VR connector
(1)...



Position B
Position A
Indicates the current
mobile device size  Device Holder
(left)
32
1
A
B
• Position A
: is used for larger devices.
• Position B: is used for smaller devices.
