Samsung HL-R5656W Dlp Tv Owners Instructions

Sound Control
BP68-00524A-00(048~061)  6/3/05  3:26 PM  Page 61

Sound Control
English - 62

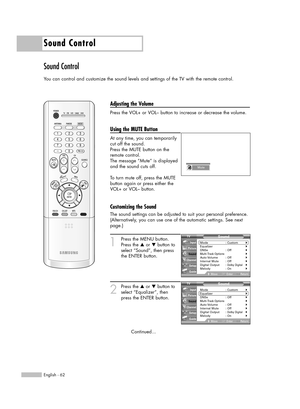

Sound Control
You can control and customize the sound levels and settings of the TV with the remote control.
Adjusting the Volume
Press the VOL+ or VOL– button to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily
cut off the sound.
Press the MUTE button on the
remote control.
The message “Mute” is displayed
and the sound cuts off.
To turn mute off, press the MUTE
button again or press either the
VOL+ or VOL– button.
Customizing the Sound...

English - 63
3
Press the œor √button to select a
particular item to be changed.
Press the …or †button to increase or
decrease the selected frequency.
Press the EXIT button to exit.
NOTES
•If you make any changes to the equalizer settings, the sound mode is automatically switched
to the custom mode.
•
L/R Sound Balance Adjustment
To adjust the sound balance of the L/R speakers.
•
Bandwidth Adjustment (100, 300, 1K, 3K, 10K)
To adjust the level of different bandwidth frequencies.
Using Automatic Sound...

Sound Control
English - 64

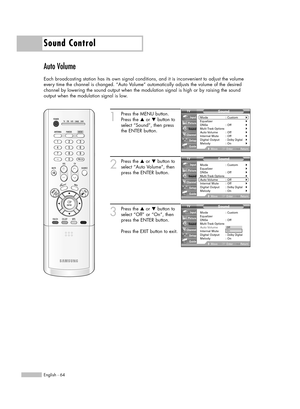

Auto Volume
Each broadcasting station has its own signal conditions, and it is inconvenient to adjust the volume
every time the channel is changed. “Auto Volume” automatically adjusts the volume of the desired
channel by lowering the sound output when the modulation signal is high or by raising the sound
output when the modulation signal is low.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select...

English - 65

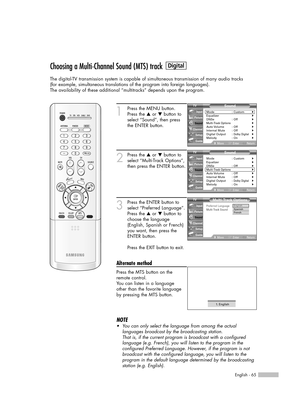

Choosing a Multi-Channel Sound (MTS) track
The digital-TV transmission system is capable of simultaneous transmission of many audio tracks
(for example, simultaneous translations of the program into foreign languages).
The availability of these additional “multitracks” depends upon the program.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select “Multi-Track Options”,
then press the ENTER button.
3
Press the ENTER...

Sound Control
English - 66

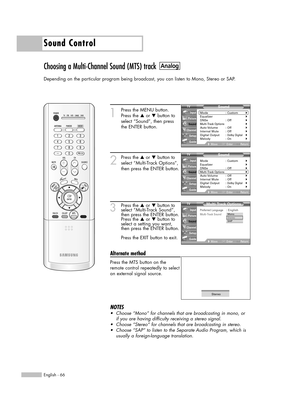

Choosing a Multi-Channel Sound (MTS) track
Depending on the particular program being broadcast, you can listen to Mono, Stereo or SAP.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select “Multi-Track Options”,
then press the ENTER button.
3Press the …or †button to
select “Multi-Track Sound”,
then press the ENTER button.
Press the …or †button to
select a setting you want,
then press the ENTER button....

English - 67

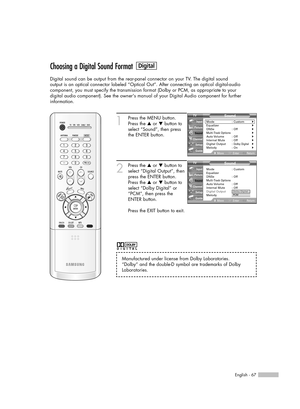

Choosing a Digital Sound Format
Digital sound can be output from the rear-panel connector on your TV. The digital sound
output is an optical connector labeled “Optical Out”. After connecting an optical digital-audio
component, you must specify the transmission format (Dolby or PCM, as appropriate to your
digital audio component). See the owners manual of your Digital Audio component for further
information.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the...

English - 68
Sound Control

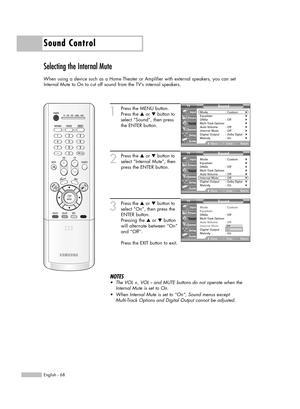

Selecting the Internal Mute
When using a device such as a Home Theater or Amplifier with external speakers, you can set
Internal Mute to On to cut off sound from the TV’s internal speakers.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select “Internal Mute”, then
press the ENTER button.
3
Press the …or †button to
select “On”, then press the
ENTER button.
Pressing the …or †button
will alternate between...

English - 69

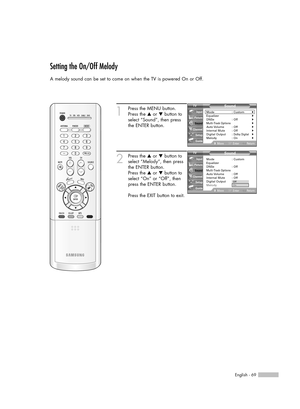

Setting the On/Off Melody
A melody sound can be set to come on when the TV is powered On or Off.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select “Melody”, then press
the ENTER button.
Press the …or †button to
select “On” or “Off”, then
press the ENTER button.
Press the EXIT button to exit.
Sound
Mode : Custom√Equalizer√DNSe : Off√Multi-Track Options√Auto Volume :  Off√Internal Mute : Off√Digital Output : Dolby...

Sound Control
English - 70

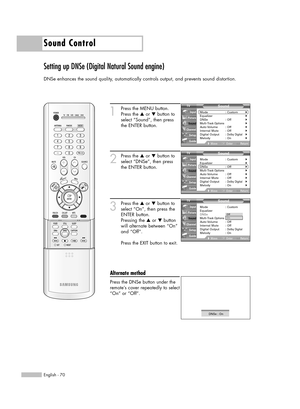

Setting up DNSe (Digital Natural Sound engine)
DNSe enhances the sound quality, automatically controls output, and prevents sound distortion.
1
Press the MENU button.
Press the …or †button to
select “Sound”, then press
the ENTER button.
2
Press the …or †button to
select “DNSe”, then press
the ENTER button.
3
Press the …or †button to
select “On”, then press the
ENTER button.
Pressing the …or †button
will alternate between “On”
and “Off”.
Press the EXIT button to exit.
Alternate...
