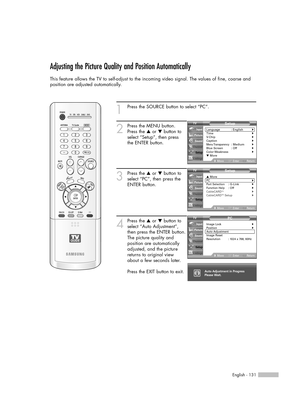

Samsung HL-R6767W Dlp Tv Owners Instructions

1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the …or †button to
select “Setup”, then press
the ENTER button.
3
Press the …or †button to
select “PC”, then press the
ENTER button.
4
Press the …or †button to
select “Auto Adjustment”,
then press the ENTER button.
The picture quality and
position are automatically
adjusted, and the picture
returns to original view
about a few seconds later.
Press the EXIT button to exit.
English - 131
Setup
Language :...

PC Display

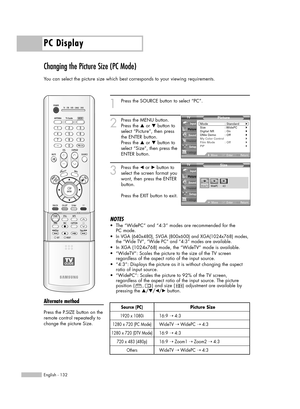

English - 132
Changing the Picture Size (PC Mode)
You can select the picture size which best corresponds to your viewing requirements.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the …or †button to
select “Picture”, then press
the ENTER button.
Press the …or †button to
select “Size”, then press the
ENTER button.
3
Press the œor √button to
select the screen format you
want, then press the ENTER
button.
Press the EXIT button to exit.
NOTES
•The “WidePC” and “4:3”...

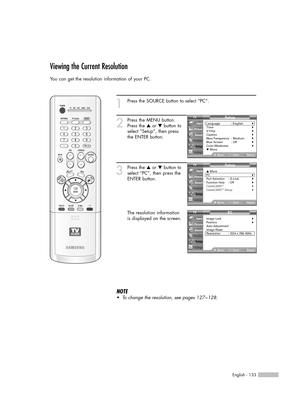

English - 133
Viewing the Current Resolution
You can get the resolution information of your PC.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the …or †button to
select “Setup”, then press
the ENTER button.
3
Press the …or †button to
select “PC”, then press the
ENTER button.
The resolution information
is displayed on the screen.
NOTE
•To change the resolution, see pages 127~128.
Setup
Language : English√Time√V-Chip√Caption√Menu Transparency: Medium√Blue Screen : Off√Color...

PC Display

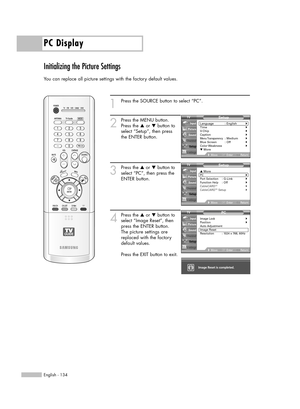

English - 134
Initializing the Picture Settings
You can replace all picture settings with the factory default values.
1
Press the SOURCE button to select “PC”.
2
Press the MENU button.
Press the …or †button to
select “Setup”, then press
the ENTER button.
3
Press the …or †button to
select “PC”, then press the
ENTER button.
4
Press the …or †button to
select “Image Reset”, then
press the ENTER button.
The picture settings are
replaced with the factory
default values.
Press the EXIT button to...

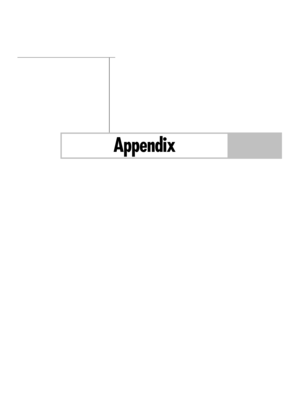

Appendix
BP68-00469B-00(124~143)  9/13/05  3:12 PM  Page 135

Appendix
English - 136

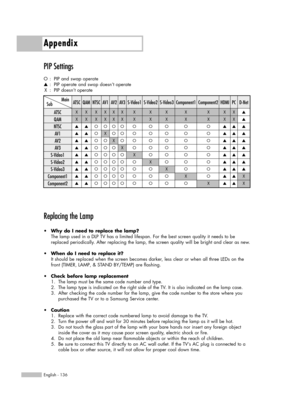

PIP Settings
O:PIP and swap operate
▲:PIP operate and swap doesn’t operate
X:PIP doesn’t operate
Replacing the Lamp
•Why do I need to replace the lamp?
The lamp used in a DLP TV has a limited lifespan. For the best screen quality it needs to be
replaced periodically. After replacing the lamp, the screen quality will be bright and clear as new.
•When do I need to replace it?
It should be replaced when the screen becomes darker, less clear or when all three LEDs on the
front (TIMER,...

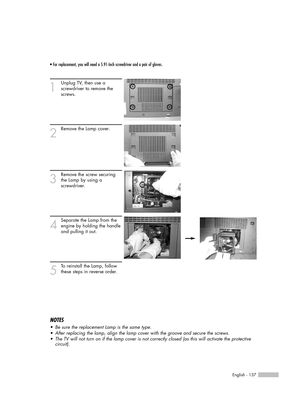

English - 137
• For replacement, you will need a 5.91-Inch screwdriver and a pair of gloves.
1
Unplug TV, then use a
screwdriver to remove the
screws.
2
Remove the Lamp cover.
3
Remove the screw securing
the Lamp by using a
screwdriver.
4
Separate the Lamp from the
engine by holding the handle
and pulling it out.
5
To reinstall the Lamp, follow
these steps in reverse order.
NOTES
•Be sure the replacement Lamp is the same type.
•After replacing the lamp, align the lamp cover with the groove and secure...

Appendix

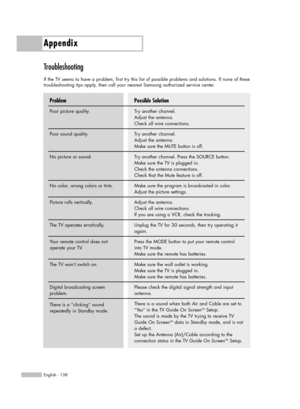

English - 138
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these
troubleshooting tips apply, then call your nearest Samsung authorized service center.
Possible Solution
Try another channel.
Adjust the antenna.
Check all wire connections.
Try another channel.
Adjust the antenna.
Make sure the MUTE button is off.
Try another channel. Press the SOURCE button.
Make sure the TV is plugged in.
Check the antenna connections....

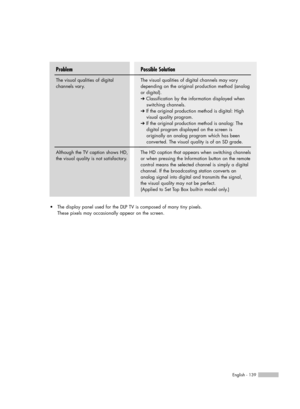

English - 139
Possible Solution
The visual qualities of digital channels may vary
depending on the original production method (analog
or digital).
➔ Classification by the information displayed when
switching channels.
➔ If the original production method is digital: High
visual quality program.
➔ If the original production method is analog: The
digital program displayed on the screen is
originally an analog program which has been
converted. The visual quality is of an SD grade.
The HD caption...

Appendix

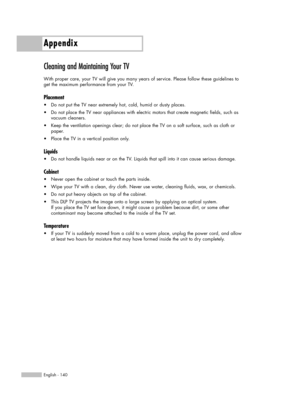

English - 140
Cleaning and Maintaining Your TV
With proper care, your TV will give you many years of service. Please follow these guidelines to
get the maximum performance from your TV.
Placement
•Do not put the TV near extremely hot, cold, humid or dusty places.
•Do not place the TV near appliances with electric motors that create magnetic fields, such as
vacuum cleaners.
•Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth or
paper.
•Place the TV in a...
