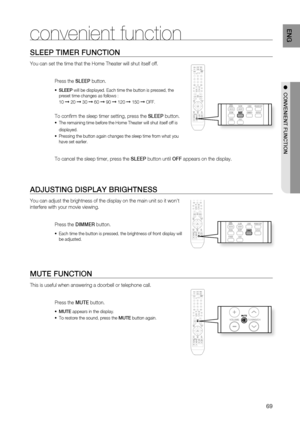

Page 71
ENg SLEEP TIMEr FUNCTION You can set the time that the Home Theater will shut itself off. Press the SLEEP button. SLEEP will be displayed. Each time the button is pressed, the preset time changes as follows : 10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF. To confi rm the sleep timer setting, press the SLEEP button. The remaining time before the Home Theater will shut itself off is displayed. Pressing the button again changes the sleep time from what you have set earlier. To cancel the sleep...

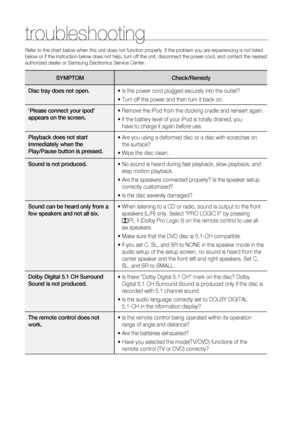

Page 72
0 troubleshooting Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. SYMPTOMCheck/remedy Disc tray does not open.• Is the power cord plugged securely into the outlet? • Turn off the power and then turn it back on. ‘Please connect your ipod’ appears on the...

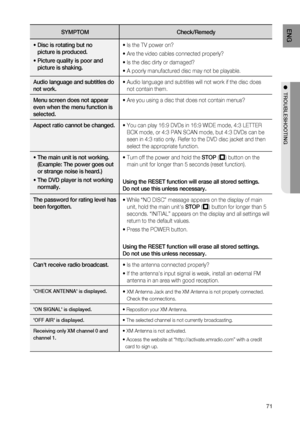

Page 73
1 ENg ● TrOUBLESHOOTINg SYMPTOM Check/remedy • Disc is rotating but no picture is produced. • Picture quality is poor and picture is shaking. • Is the TV power on? • Are the video cables connected properly? • Is the disc dirty or damaged? • A poorly manufactured disc may not be playable. Audio language and subtitles do not work. • Audio language and subtitles will not work if the disc does not contain them. Menu screen does not appear even when the menu function is selected. •...

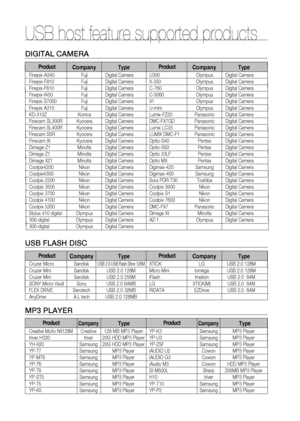

Page 74
DIgITAL CAMErA ProductCompanyType Finepix-A340 Fuji Digital Camera Finepix-F810 Fuji Digital Camera Finepix-F610 Fuji Digital Camera Finepix-f450 Fuji Digital Camera Finepix S7000 Fuji Digital Camera Finepix A310 Fuji Digital Camera KD-310Z Konica Digital Camera Finecam SL300R Kyocera Digital Camera Finecam SL400R Kyocera Digital Camera Finecam S5R Kyocera Digital Camera Finecam Xt Kyocera Digital Camera Dimage-Z1 Minolta Digital Camera Dimage Z1 Minolta Digital Camera Dimage...
Page 75

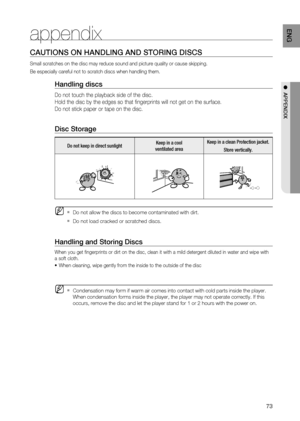

3 ENg ● APPENDIX appendix CAUTIONS ON HANDLINg AND STOrINg DISCS Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them. Handling discs Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface. Do not stick paper or tape on the disc. Disc Storage Do not keep in direct sunlightKeep in a cool ventilated area Keep in a clean Protection...

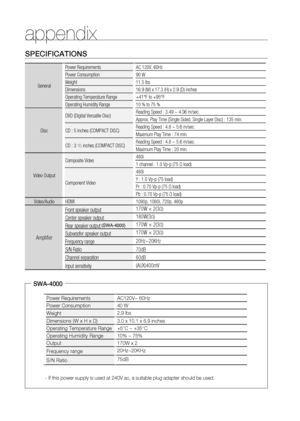

Page 76
appendix SPECIFICATIONS General Power Requirements AC 120V, 60Hz Power Consumption 90 W Weight 11.5 Ibs Dimensions 16.9 (W) x 17.3 (H) x 2.9 (D) inches Operating Temperature Range +41°F to +95°F Operating Humidity Range 10 % to 75 % Disc DVD (Digital Versatile Disc) Reading Speed : 3.49 ~ 4.06 m/sec. Approx. Play Time (Single Sided, Single Layer Disc) : 135 min. CD : 5 inches (COMPACT DISC) Reading Speed : 4.8 ~ 5.6 m/sec. Maximum Play Time : 74 min. CD : 3 1/2 inches (COMPACT DISC) Reading...

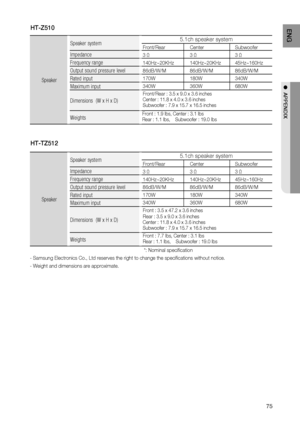

Page 77
5 ENg ● APPENDIX HT-Z510 HT-TZ512 Speaker Speaker system5.1ch speaker system Impedance Frequency range Output sound pressure level Rated input Maximum input Dimensions (W x H x D) Weights Front/Rear 3 Ω 140Hz~20KHz 86dB/W/M 170W 340W Center 3 Ω 140Hz~20KHz 86dB/W/M 180W 360W Subwoofer 3 Ω 45Hz~160Hz 86dB/W/M 340W 680W Front/Rear : 3.5 x 9.0 x 3.6 inchesCenter : 11.8 x 4.0 x 3.6 inchesSubwoofer : 7.9 x 15.7 x 16.5 inches Front : 1.9 Ibs, Center : 3.1 Ibs Rear : 1.1 Ibs, Subwoofer : 19.0 Ibs...

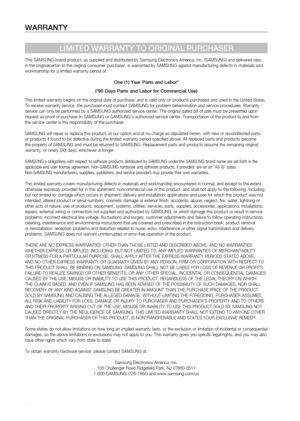

Page 78
WArrANTY LIMITED WArrANTY TO OrIgINAL PUrCHASEr This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor* (*90 Days Parts and Labor for Commercial Use) This limited warranty begins on the original date of purchase, and is valid...

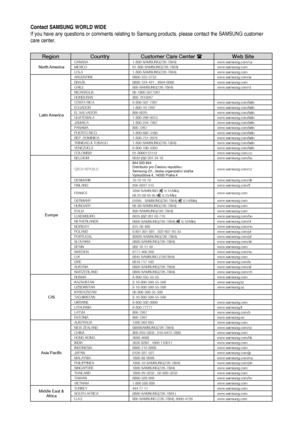

Page 79
Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. RegionCountryCustomer Care Center Web Site North AmericaCANADA1-800-SAMSUNG(726-7864)www.samsung.com/caMEXICO01-800-SAMSUNG(726-7864)www.samsung.comU.S.A1-800-SAMSUNG(726-7864)www.samsung.com Latin America ARGENTINE0800-333-3733www.samsung.com/arBRAZIL0800-124-421 ,...
