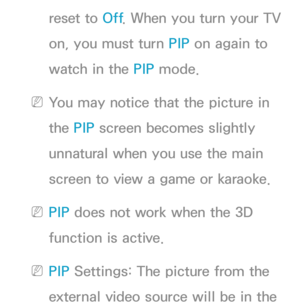

reset to Off. When you turn your TV
on, you must turn PIP  on again to
watch in the PIP  mode.

NYou may notice that the picture in
the PIP  screen becomes slightly
unnatural when you use the main
screen to view a game or karaoke.

NPIP  does not work when the 3D
function is active.

NPIP  Settings: The picture from the
external video source will be in the

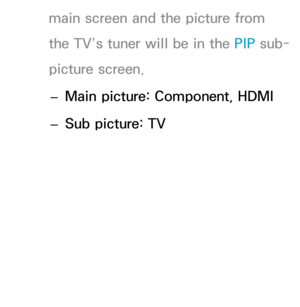

main screen and the picture from
the TV’s tuner will be in the PIP sub-
picture screen.

– Main picture: Component, HDMI

– Sub picture: TV

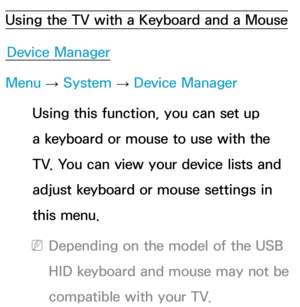

Using the TV with a Keyboard and a MouseDevice Manager
Menu  → System

→  Device Manager
Using this function, you can set up
a keyboard or mouse to use with the
TV. You can view your device lists and
adjust keyboard or mouse settings in
this menu.

NDepending on the model of the USB
HID keyboard and mouse may not be
compatible with your TV.

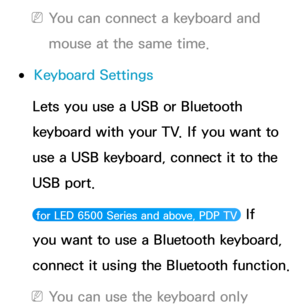

NYou can connect a keyboard and
mouse at the same time.

●Keyboard Settings
Lets you use a USB or Bluetooth
keyboard with your TV. If you want to
use a USB keyboard, connect it to the
USB port.
 for LED 6500 Series and above, PDP TV  If
you want to use a Bluetooth keyboard,
connect it using the Bluetooth function.

NYou can use the keyboard only

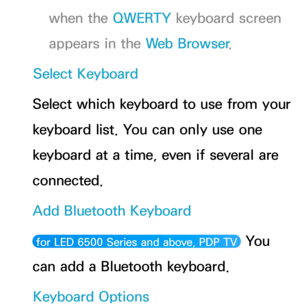

when the QWERTY keyboard screen
appears in the Web Browser.
Select Keyboard
Select which keyboard to use from your
keyboard list. You can only use one
keyboard at a time, even if several are
connected.
Add Bluetooth Keyboard
 for LED 6500 Series and above, PDP TV  You
can add a Bluetooth keyboard.
Keyboard Options

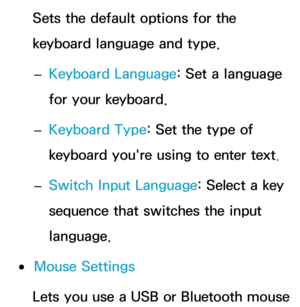

Sets the default options for the
keyboard language and type.
– Keyboard Language: Set a language
for your keyboard.

– Keyboard Type: Set the type of
keyboard you're using to enter text.

– Switch Input Language: Select a key
sequence that switches the input
language.

●Mouse Settings
Lets you use a USB or Bluetooth mouse

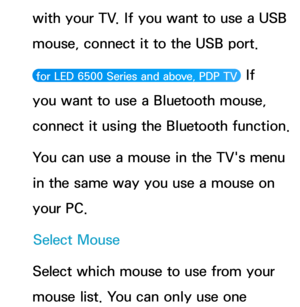

with your TV. If you want to use a USB
mouse, connect it to the USB port.
 for LED 6500 Series and above, PDP TV  If
you want to use a Bluetooth mouse,
connect it using the Bluetooth function.
You can use a mouse in the TV's menu
in the same way you use a mouse on
your PC.
Select Mouse
Select which mouse to use from your

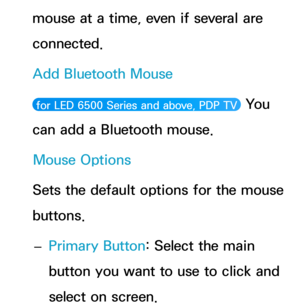

mouse list. You can only use one

mouse at a time, even if several are
connected.
Add Bluetooth Mouse
 for LED 6500 Series and above, PDP TV  You
can add a Bluetooth mouse.
Mouse Options
Sets the default options for the mouse
buttons.
– Primary Button: Select the main
button you want to use to click and
select on screen.

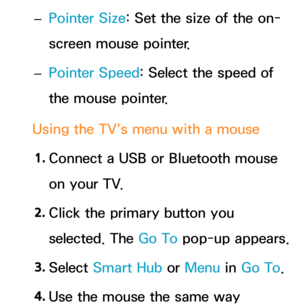

– Pointer Size: Set the size of the on-
screen mouse pointer.

– Pointer Speed: Select the speed of
the mouse pointer.
Using the TV's menu with a mouse 1.
Connect a USB or Bluetooth mouse
on your TV.
2.
Click the primary button you
selected. The Go To pop-up appears.
3.
Select  Smart Hub or  Menu in Go To.
4.
Use the mouse the same way

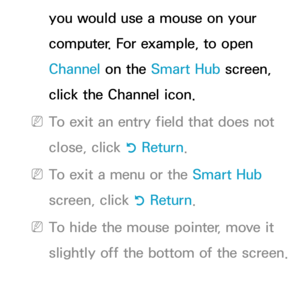

you would use a mouse on your
computer. For example, to open
Channel on the Smart Hub screen,
click the Channel icon.

NTo exit an entry field that does not
close, click  R Return
.

NTo exit a menu or the Smart Hub
screen, click  R Return
.

NTo hide the mouse pointer, move it
slightly off the bottom of the screen.
