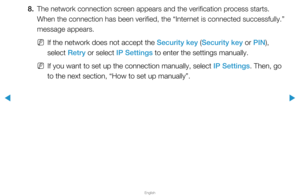

8. The network connection screen appears and the verification process starts.
When the connection has been verified, the “Internet is connected successfully.”
message appears.

NIf the network does not accept the Security key (Security key or PIN),
select Retry or select IP Settings to enter the settings manually.

NIf you want to set up the connection manually, select IP Settings. Then, go
to the next section, “How to set up manually”.

▶
English
▶

■

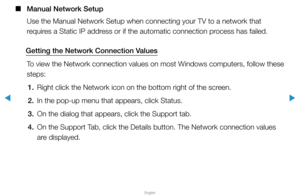

Manual Network Setup
Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address or if the automatic connection process has failed.
Getting the Network Connection Values To view the Network connection values on most Windows computers, follow these
steps:1.  Right click the Network icon on the bottom right of the screen.
2.  In the pop-up menu that appears, click Status.
3.  On the dialog that appears, click the Support tab.
4.  On the Support Tab,...

▶
English
▶

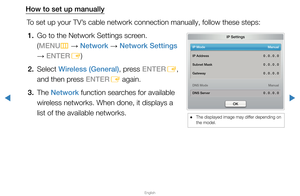

How to set up manuallyTo set up your TV’s cable network connection manually, follow these steps:1.  Go to the Network Settings screen.  (MENU m
→  Network
→ Network Settings
→  ENTER
E)
2. Select  Wireless (General), press ENTER
E,
and then press ENTER E again.
3. The  Network function searches for available
wireless networks. When done, it displays a
list of the available networks.
IP Settings
IP Mode   Manual
DNS Mode   Manual
DNS Server   0 . 0 . 0 . 0
IP Address
 0 . 0 . 0 . 0...

▶
English
▶

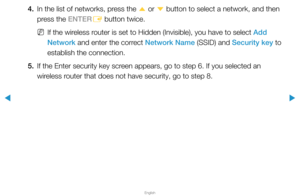

4. In the list of networks, press the
u or
d button to select a network, and then
press the ENTER E button twice.

NIf the wireless router is set to Hidden (Invisible), you have to select Add
Network and enter the correct Network Name (SSID) and Security key to
establish the connection.
5.  If the Enter security key screen appears, go to step 6. If you selected an
wireless router that does not have security, go to step 8.

▶
English
▶

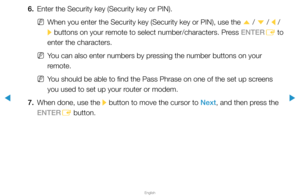

6. Enter the Security key (Security key or PIN).

NWhen you enter the Security key (Security key or PIN), use the
u /
d  /
l  /
r  buttons on your remote to select number/characters. Press ENTER
E to
enter the characters.

NYou can also enter numbers by pressing the number buttons on your
remote.

NYou should be able to find the Pass Phrase on one of the set up screens
you used to set up your router or modem.
7.  When done, use the
r button to move the cursor to Next, and then...

▶
English
▶

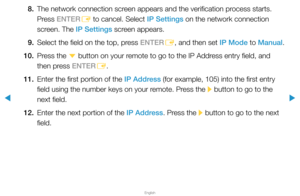

8. The network connection screen appears and the verification process starts.
Press ENTER
E to cancel. Select IP Settings on the network connection
screen. The IP Settings screen appears.
9.  Select the field on the top, press ENTER
E, and then set IP Mode to Manual.
10.  Press the
d button on your remote to go to the IP Address entry field, and
then press ENTER E.
11.  Enter the first portion of the IP Address (for example, 105) into the first entry
field using the number keys on your...

▶
English
▶

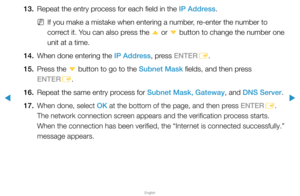

13. Repeat the entry process for each field in the IP Address.

NIf you make a mistake when entering a number, re-enter the number to
correct it. You can also press the
u or
d button to change the number one
unit at a time.
14.  When done entering the IP Address, press ENTER
E.
15.  Press the
d button to go to the Subnet Mask fields, and then press
ENTER E.
16.  Repeat the same entry process for Subnet Mask, Gateway, and DNS Server.
17.
When done, select OK at the bottom of the page,...

▶
English
▶

■

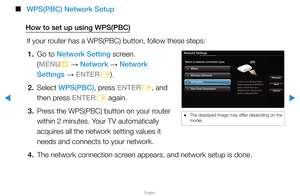

WPS(PBC) Network Setup
How to set up using WPS(PBC) If your router has a WPS(PBC) button, follow these steps:1.  Go to Network Setting screen.
(MENU
m
→  Network
→ Network
Settings  → ENTER
E).
2. Select  WPS(PBC), press ENTER
E, and
then press ENTER E again.
3.  Press the WPS(PBC) button on your router
within 2 minutes. Your TV automatically
acquires all the network setting values it
needs and connects to your network.
4.  The network connection screen appears, and network setup...

▶
English
▶

■

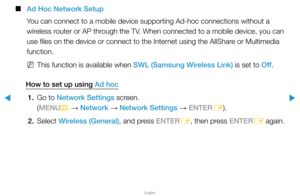

Ad Hoc Network Setup
You can connect to a mobile device supporting Ad-hoc connections without \
a
wireless router or AP through the TV. When connected to a mobile device, you can
use files on the device or connect to the Internet using the AllShare or Multimedia
function.

NThis function is available when SWL (Samsung Wireless Link) is set to Off .
How to set up using Ad hoc 1.  Go to Network Settings screen.
(MENU
m
→  Network
→ Network Settings
→ ENTER
E).
2. Select  Wireless...

▶
English
▶

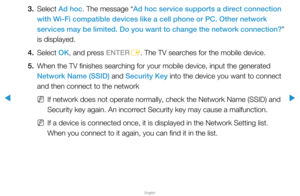

3. Select Ad hoc. The message “Ad hoc service supports a direct connection
with Wi-Fi compatible devices like a cell phone or PC. Other network
services may be limited. Do you want to change the network connection?”
is displayed.
4. Select  OK, and press ENTER
E. The TV searches for the mobile device.
5.  When the TV finishes searching for your mobile device, input the generated
Network Name (SSID) and Security Key into the device you want to connect
and then connect to the network

NIf...
