Samsung Television UN60D7050VF User Manual

▶
English
▶

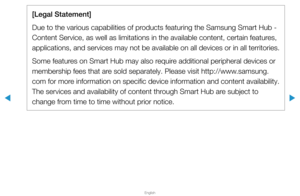

[Legal Statement]
Due to the various capabilities of products featuring the Samsung Smart Hub -
Content Service, as well as limitations in the available content, certai\
n features,
applications, and services may not be available on all devices or in all\
 territories.
Some features on Smart Hub may also require additional peripheral devices or
membership fees that are sold separately. Please visit http://www.samsung.
com for more information on specific device information and content...

▶
English
▶

■

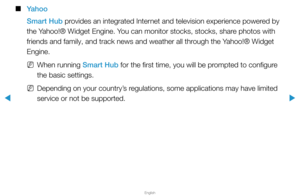

Yahoo
Smart Hub provides an integrated Internet and television experience powered by
the Yahoo!® Widget Engine. You can monitor stocks, stocks, share photos with
friends and family, and track news and weather all through the Yahoo!® Widget
Engine.

NWhen running Smart Hub for the first time, you will be prompted to configure
the basic settings.

NDepending on your country’s regulations, some applications may have limited
service or not be supported.

▶
English
▶

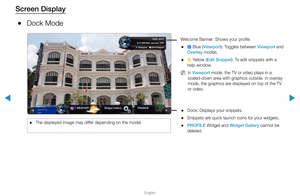

Screen Display

●Dock Mode

● Dock: Displays your snippets.

● Snippets are quick launch icons for your widgets.

● PROFILE Widget and Widget Gallery cannot be
deleted.
Welcome Banner: Shows your profile.

● } Blue (Viewport): Toggles between Viewport and
Overlay modes.

● { Yellow (Edit Snippet): To edit snippets with a
help window.

N In Viewport mode, the TV or video plays in a
scaled-down area with graphics outside. In overlay
mode, the graphics are displayed on top of the TV...

▶
English
▶

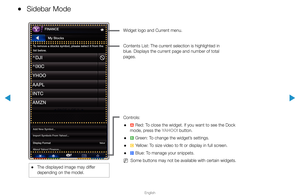

●Sidebar Mode
Widget logo and Current menu.
Contents List: The current selection is highlighted in
blue. Displays the current page and number of total
pages.
Controls:

● a Red: To close the widget. If you want to see the Dock
mode, press the YAHOO! button.

● b Green: To change the widget’s settings.

● { Yellow: To size video to fit or display in full screen.

● } Blue: To manage your snippets.

N Some buttons may not be available with certain widgets.

● The displayed image may...

▶
English
▶

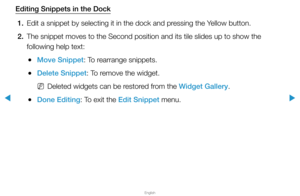

Editing Snippets in the Dock1.  Edit a snippet by selecting it in the dock and pressing the Yellow button.
2.  The snippet moves to the Second position and its tile slides up to show \
the
following help text:

●Move Snippet: To rearrange snippets.

●Delete Snippet: To remove the widget.

NDeleted widgets can be restored from the Widget Gallery.

●Done Editing: To exit the Edit Snippet menu.

▶
English
▶

■

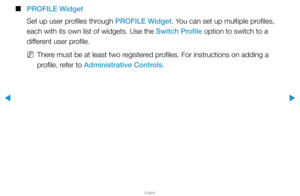

PROFILE Widget
Set up user profiles through PROFILE Widget. You can set up multiple profiles,
each with its own list of widgets. Use the Switch Profile option to switch to a
different user profile.

NThere must be at least two registered profiles. For instructions on adding a
profile, refer to Administrative Controls.

▶
English
▶

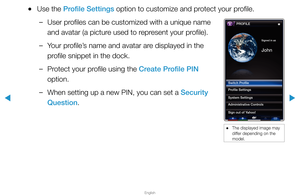

●Use the Profile Settings option to customize and protect your profile.

–User profiles can be customized with a unique name
and avatar (a picture used to represent your profile).

–Your profile’s name and avatar are displayed in the
profile snippet in the dock.

–Protect your profile using the Create Profile PIN
option.

–When setting up a new PIN, you can set a Security
Question.

● The displayed image may
differ depending on the
model.
PROFILE
Switch Profile
System Settings...

▶
English
▶

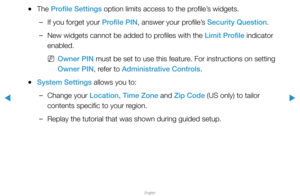

●The Profile Settings option limits access to the profile’s widgets.

–If you forget your Profile PIN, answer your profile’s Security Question.

–New widgets cannot be added to profiles with the Limit Profile indicator
enabled.

NOwner PIN must be set to use this feature. For instructions on setting
Owner PIN, refer to Administrative Controls.

●System Settings allows you to:

–Change your Location, Time Zone and Zip Code (US only) to tailor
contents specific to your region....

▶
English
▶

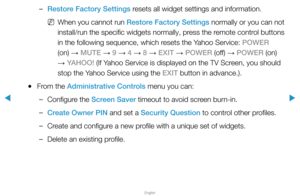

–Restore Factory Settings resets all widget settings and information.

NWhen you cannot run Restore Factory Settings normally or you can not
install/run the specific widgets normally, press the remote control buttons
in the following sequence, which resets the Yahoo Service: POWER
(on)  → MUTE
→ 9
→ 4
→ 8
→ EXIT
→ POWER (off)
→ POWER (on)
→  YAHOO! (If Yahoo Service is displayed on the TV Screen, you should
stop the Yahoo Service using the EXIT button in advance.).

●From the...

▶
English
▶

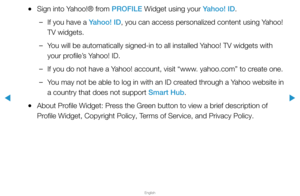

●Sign into Yahoo!® from PROFILE Widget using your Yahoo! ID.

–If you have a Yahoo! ID, you can access personalized content using Yahoo!
TV widgets.

–You will be automatically signed-in to all installed Yahoo! TV widgets with
your profile’s Yahoo! ID.

–If you do not have a Yahoo! account, visit “www. yahoo.com” to create one.

–You may not be able to log in with an ID created through a Yahoo website in
a country that does not support Smart Hub.

●About Profile Widget: Press the...
