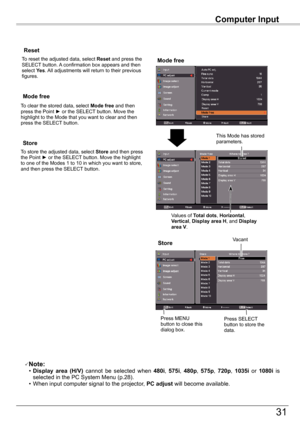

Computer	Input
Store
To	store	the	adjusted	data,	select Store and	then	press	the	Point	►	or	the	SELECT	button.	Move	the	highlight	to	one	of	the	Modes	1	to	10	in	which	you	want	to	store,	and	then	press	the	SELECT 	button.
Mode	free
To	clear	the	stored	data,	select	Mode	free	and	then	press	the	Point	►	or	the	SELECT 	button.	Move	the	highlight	to	the	Mode	that	you	want	to	clear	and	then	press	the	SELECT	button.
Note:	 •	Display	area	(H/V)	cannot	 be	selected	 when	480i,	575i,	480p,	575p,	720p,	1035i...

3

Computer	InputComputer	Input
Image	select	Menu
IMAGE	button
Dynamic
Real
Image	1
Image	2
Image	3
Image	Mode	Selection
Image	4
Blackboard(Green)
Standard
Remote	Control
IMAGE	button

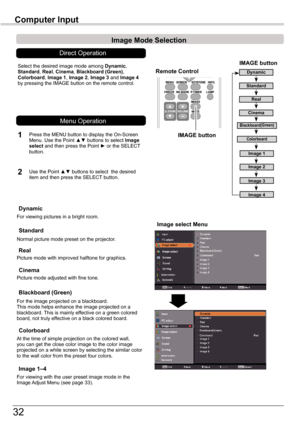

Select	the	desired	image	mode	among	Dynamic,	Standard,	Real,	Cinema,	Blackboard	(Green),	Colorboard,	Image	1,	Image	2,	Image	3	and	Image	4	by	pressing	the	IMAGE	button	on	the	remote	control.
Standard
Picture	mode	with	improved	halftone	for	graphics.
Real
Blackboard	(Green)
Image	1–4
For	the	image	projected	on	a...

33

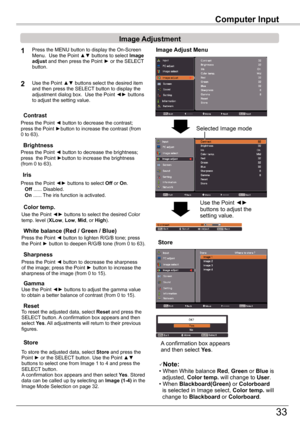

Computer	Input
Image	Adjust	Menu
Image	Adjustment
Reset
Press	the	MENU	button	to	display	the	On-Screen	Menu.		Use	the	Point	▲▼	buttons	to	select	Image	adjust	and	then	press	the	Point	►	or	the	SELECT 	button.
1
2Use	the	Point	▲▼	buttons	select	the	desired	item	and	then	press	the	SELECT 	button	to	display	the	adjustment	dialog	box.		Use	the	Point	◄►	buttons	to	adjust	the	setting	value.
Note:•	When	White	balance	Red,	Green	or	Blue	is				adjusted,	Color temp .	will	change	to	User.•	When...

34

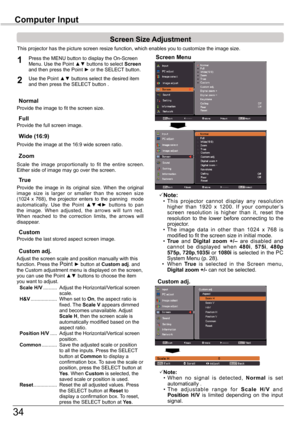

Computer	InputComputer	Input
This	projector	has	the	picture	screen	resize	function,	which	enables	you	to	customize	the	image	size.
Screen Menu
Screen	Size	Adjustment
Provide	the	image	to	fit	the	screen	size.Normal
True
Provide	the	image	 in	its	 original	 size.	When	 the	original		image 	size 	is 	larger 	or 	smaller 	than 	the 	screen 	size	(104	 x	768),	 the	projector	 enters	to	the	 panning	 	 mode		automatically. 	Use 	the 	Point 	▲▼◄► 	buttons 	to 	pan	the 	image. 	When 	adjusted, 	the...

35

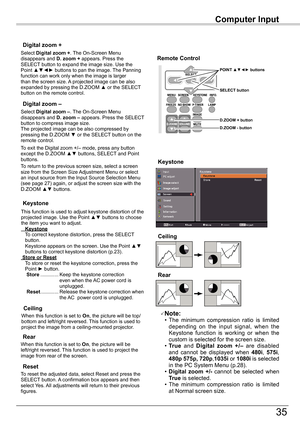

Computer	Input
Select	Digital	zoom	+.	The	On-Screen	Menu	disappears	and	D.	zoom	+	appears.	Press	the	SELECT 	button	to	expand	the	image	size.	Use	the	Point	▲▼◄►	buttons	to	pan	the	image.	 The	Panning	function	can	work	only	when	the	image	is	larger	than	the	screen	size.	A	projected	image	can	be	also	expanded	by	pressing	the	D.ZOOM	▲	or	the	SELECT 	button	on	the	remote	control.
To	exit	the	Digital	zoom	+/–	mode,	press	any	button	except	the	D.ZOOM	▲▼	buttons,	SELECT	and	Point	buttons.
Digital	zoom	+...

36

Video	InputVideo	Input

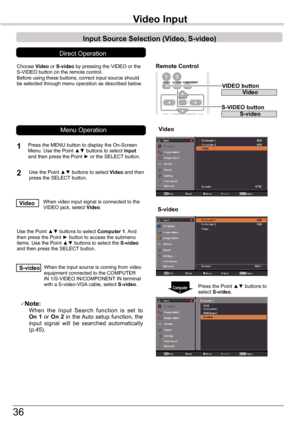

Choose	Video	or	S-video	by	pressing	the	VIDEO	or	the	S-VIDEO	button	on	the	remote	control.Before	using	these	buttons,	correct	input	source	should	be	selected	through	menu	operation	as	described	below.
1
2
Video
Input	Source	Selection	(Video,	S-video)
Direct	Operation
When	video	input	signal	is	connected	to	the	VIDEO	jack,	select	Video.Video
When	the	input	source	is	coming	from	video	equipment	connected	to	the	COMPUTER	IN	1/S-VIDEO	IN/COMPONENT	IN	terminal	with	a	S-video-VGA...

37

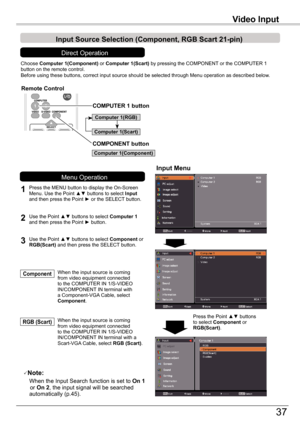

Video	Input
Choose	Computer	1(Component)	or	Computer	1(Scart)	by	pressing	the	COMPONENT	or	the	COMPUTER	1	button	on	the	remote	control.Before	using	these	buttons,	correct	input	source	should	be	selected	through	Menu	operation	as	described	below.
1
Input	Menu
2Use	the	Point	▲▼	buttons	to	select	Computer 1	and	then	press	the	Point	►	button.
Input	Source	Selection	(Component,	RGB	Scart	21-pin)
When	the	input	source	is	coming	from	video	equipment	connected	to	the	COMPUTER	IN	1/S-VIDEO	IN/COMPONENT	IN...

38

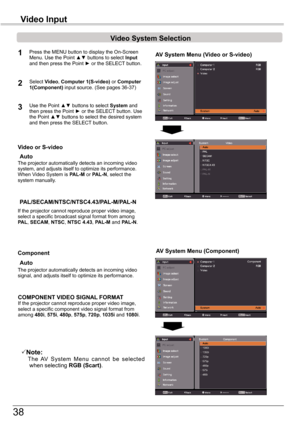

Video	System	Selection
1AV	System	Menu	(Video	or	S-video)
AV	System	Menu	(Component)
2
If	the	projector	cannot	reproduce	proper	video	image,	select	a	specific	broadcast	signal	format	from	among	PAL,	SECAM,	NTSC,	NTSC	4.43,	PAL-M	and	PAL-N.
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
The	projector	automatically	detects	an	incoming	video	signal,	and	adjusts	itself	to	optimize	its	performance.
If	the	projector	cannot	reproduce	proper	video	image,	select	a	specific	component	video	signal	format	from	among	480i,...

39

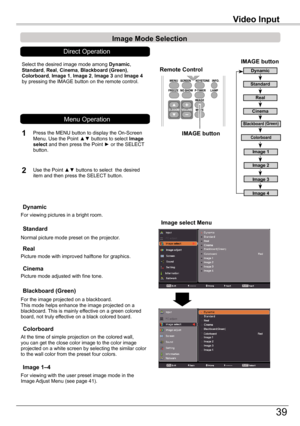

Video	Input
Image	select	Menu
IMAGE	button
Dynamic
Real
Image	1
Image	2
Image	3
Image	Mode	Selection
Image	4
Blackboard	(Green)
Standard
Remote	Control
IMAGE	button
Select	the	desired	image	mode	among	Dynamic,	Standard,	Real,	Cinema,	Blackboard	(Green),	Colorboard,	Image	1,	Image	2,	Image	3	and	Image	4	by	pressing	the	IMAGE	button	on	the	remote	control.
Standard
Picture	mode	with	improved	halftone	for	graphics.
Real
Blackboard	(Green)
Image	1–4
For	the	image	projected	on	a	blackboard.This	mode...

40

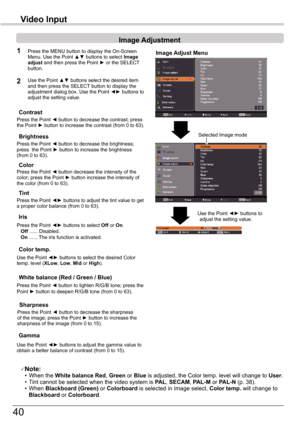

Image	Adjustment
1
2
Press	the	Point	◄	button	to	decrease	the	contrast;	press	the	Point	►	button	to	increase	the	contrast	(from	0	to	63).
Press	the	Point	◄	button	to	decrease	the	brightness;	press		the	Point	►	button	to	increase	the	brightness	(from	0	to	63).
Contrast
Brightness
Press	the	Point	◄	button	to	lighten	R/G/B	tone;	press	thePoint	►	button	to	deepen	R/G/B	tone	(from	0	to	63).
White	balance	(Red	/	Green	/	Blue)
Use	the	Point	◄►	buttons	to	select	the	desired	Color	temp.	level	(XLow,	Low,	Mid...
