Computer Input
Choose	Computer   by	 pressing	 the	INPUT 	button	 on	the	 top	control	 or	press	 the	COMPUTER	 button	on	the
remote	control.
Before	using	these	buttons,	correct	input	source	should	be	selected	through	Menu	operation	as	described
below.

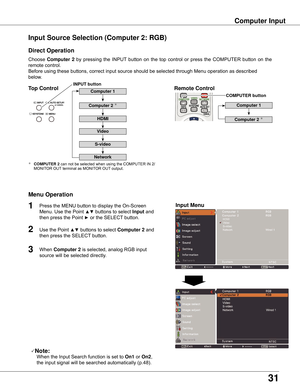

Input Source Selection (Computer : RGB)
Direct Operation
Menu Operation
Note:
	 		When	the	Input	Search	function	is	set	to	On1 	or	On ,
the	input	signal	will	be	searched	automatically	(p.48).
1

3
Press	the	MENU	button	to...

3

Computer Input
PC System Menu
PC System Menu

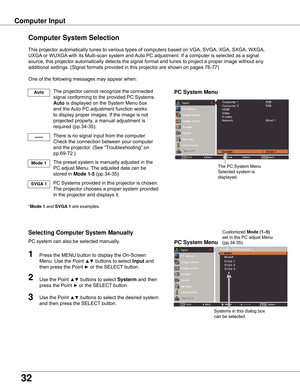

Computer System Selection
This	projector	automatically	tunes	to	various	types	of	computers	based	on	VGA,	SVGA,	XGA,	SXGA,	WXGA,
UXGA	or	WUXGA 	with	its	Multi-scan	system	and	 Auto	PC	adjustment.	If	a	computer	is	selected	as	a	signal
source,	this	projector	automatically	detects	the	signal	format	and	tunes	to	project	a	proper	image	without	any
additional	settings.	(Signal	formats	provided	in	this	projector	are	shown	on	pages	76-77)
One	of	the...

33

Computer Input
Auto	PC	adjustment	function	is	provided	to	automatically	adjust	Fine sync,	Total dots ,	Horizontal ,	Vertical,
Clamp,	Display area H  and	Display area V positions	to	conform	to	your	computer.
PC adjust Menu

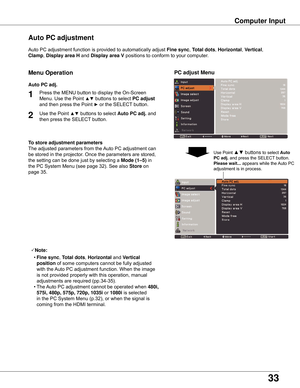

Auto PC adjustment
To store adjustment parameters
The	adjusted	parameters	from	the	 Auto	PC	adjustment	can
be	stored	in	the	projector.	Once	the	parameters	are	stored,
the	setting	can	be	done	just	by	selecting	a
Mode (1–5) 	in
the	PC	System	Menu	(see	page	32).	See	also
Store...

34

Computer Input
PC adjust Menu

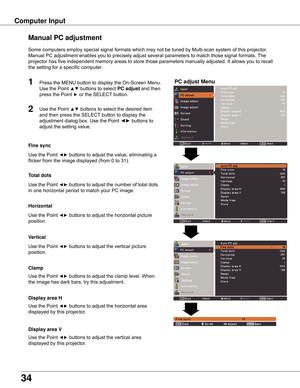

Manual PC adjustment
Some	computers	employ	special	signal	formats	which	may	not	be	tuned	by	Multi-scan	system	of	this	projector.
Manual	PC	adjustment	enables	you	to	precisely	adjust	several	parameters	to	match	those	signal	formats.	The
projector	has	five	independent	memory	areas	to	store	those	parameters	manually	adjusted.	It	allows	you	to	recall
the	setting	for	a	specific	computer.
1

Use	the	Point	◄►	buttons	to	adjust	the	value,	eliminating	a
flicker	from...

35

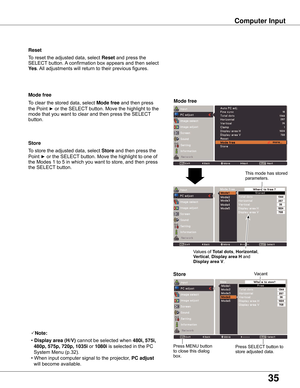

Store
To	store	the	adjusted	data,	select	Store	and	then	press	 the
Point
►	or	the	SELECT 	button.	Move	the	highlight	to	one	of
the	Modes	1	to	5	in	which	you	want	to	store,	and	then	press
the	SELECT 	button.
Mode free
To	clear	the	stored	data,	select	Mode free	and	then	press
the	Point
►	or	the	SELECT 	button.	Move	the	highlight	to	the
mode	that	you	want	to	clear	and	then	press	the	SELECT
button.
Note:
•
Display area (H/V)  cannot	be	selected	when 480i, 575i,
  480p, 575p, 70p, 1035i...

36

Computer Input
Image Select Menu
IMAGE button
Dynamic
Real
Image 1
Image 3

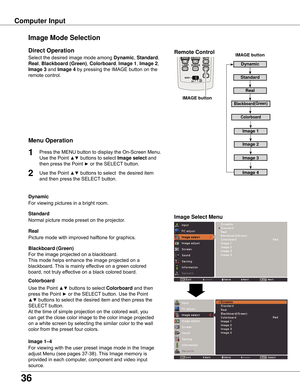

Image Mode Selection
Image 4
Blackboard(Green)
Standard
Remote Control
IMAGE button
Select	the	desired	image	mode	 among	Dynamic, Standard,
Real,	Blackboard (Green), Colorboard, Image 1 ,	Image  ,
Image 3	and Image 4 	by	pressing	the	IMAGE	button	on	the
remote	control.
Standard
Picture	mode	with	improved	halftone	for	graphics.
Real
Blackboard (Green)
Image 1–4
Dynamic
Direct Operation
For	viewing	pictures...

37

Computer Input
Image Adjust Menu

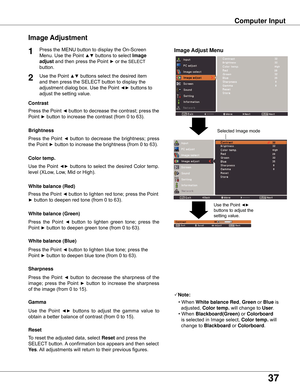

Image Adjustment
Reset
Press	the	MENU	button	to	display	the	On-Screen
Menu.	Use	the	Point
▲▼	buttons	to	select	Image
adjust	and	then	press	the	Point	►	or	the	SELECT
button.
1
Use	the	Point	▲▼	buttons	select	the	desired	item
and	then	press	the	SELECT 	button	to	display	the
adjustment	dialog	box.	Use	the	Point
◄►	buttons	to
adjust	the	setting	value.
Note:
•	When
White balance Red ,	Green	or	Blue	is
		adjusted,	 Color temp . 	will	change	to
User.
•...

38

Computer Input
Store

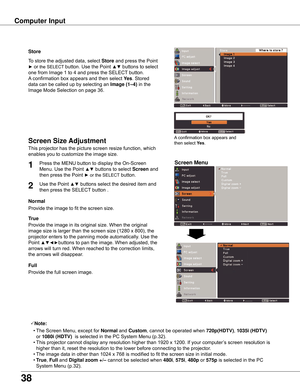

This	projector	has	the	picture	screen	resize	function,	which
enables	you	to	customize	the	image	size.
Screen Menu
Screen Size Adjustment
Provide	the	image	to	fit	the	screen	size.
Normal
True
Provide	the	image	in	its	original	size.	When	the	original
image	size	is	larger	than	the	screen	size	(1280	x	800),	the
projector	enters	to	the	panning	mode	automatically.	Use	the
Point
▲▼◄►buttons	to	pan	the	image.	When	adjusted,	the
arrows	will	turn	red.	When	reached	to	the	correction...

39

Computer Input

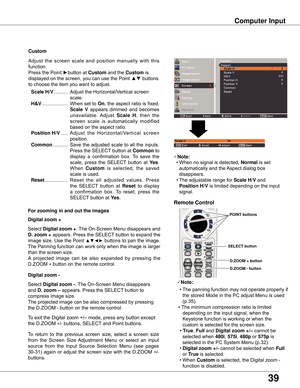

Select	Digital zoom +.	The	 On-Screen	 Menu	disappears	 and
D . zoom + 	appears.	 Press	the	SELECT 	button	 to	expand	 the
image	 size.	Use	the	Point
▲▼◄►	buttons	 to	pan	 the	image.
The	Panning	function	can	work	only	when	the	image	is	larger
than	the	screen	size.
A 	projected 	image 	can 	be 	also 	expanded 	by 	pressing 	the
D.ZOOM
+	button	on	the	remote	control.
To	exit	the	Digital	zoom	+/–	mode,	press	any	button	except
the	D.ZOOM
+/-	buttons,	SELECT 	and	Point	buttons....

40

Choose	Video	or	S-video 	by	pressing	the	INPUT 	button	on
the	top	control	or	the	VIDEO	button	on	the	remote	control.
1

Video
Input Menu

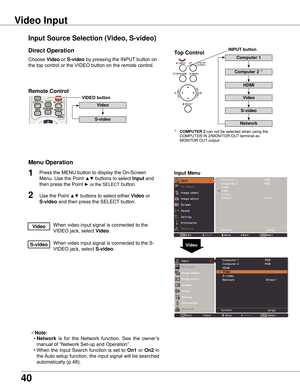

Input Source Selection (Video, S-video)
Video Input
Direct Operation
Menu Operation
When	video	input	signal	is	connected	to	the
VIDEO	jack,	select
Video.Video
When	video	input	signal	is	connected	to	the	S-
VIDEO	jack,	select
S-video.S-video
Note:
	 •	Network 	is	 for	 the	 Network	 function.	 See	the	owner’s
manual	of	“Network	Set-up	and	Operation”	.
	 •...
