Part Names and FunctionsPart Names and Functions
⑤
③
⑨
⑬
④
⑭
⑫
⑩
①②

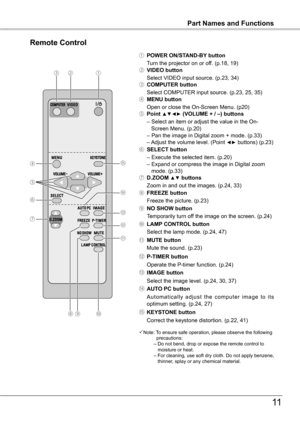

Remote Control
⑥
⑦
⑧
⑮
⑪
① POWER ON/STAND-By  button
  Turn the projector on or off. (p.18, 19)
② VIDEO button
  Select VIDEO input source. (p.3, 34)
③ COMPUTER button
  Select COMPUTER input source. (p.3, 5, 35)
④ MENU button
  Open or close the On-Screen Menu. (p0)
⑦ D .ZOOM ▲▼ buttons
  Zoom in and out the images. (p.4, 33)
⑭ AUTO PC button
  A u t o m a t i c a l l y  a d j u s t  t h e  c o m p u t e r...

InstallationPart Names and Functions
1

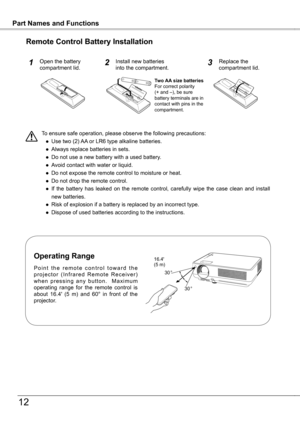

To ensure safe operation, please observe the following precautions:
 ●  Use two (2) AA or LR6 type alkaline batteries.
  ●  Always replace batteries in sets.
  ●  Do not use a new battery with a used battery.
  ●  Avoid contact with water or liquid.
  ●  Do not expose the remote control to moisture or heat.
  ●  Do not drop the remote control.
  ●  If  the  battery  has  leaked  on  the  remote  control,  carefully  wipe  the  case  clean  and  install
new...

13

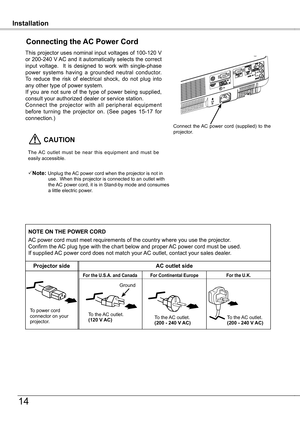

InstallationPart Names and Functions
 Note:
  • The  brightness  in  the  room  has  a  great  influence  on  picture  quality.    It  is  recommended  to  limit
ambient lighting in order to obtain the best image.
  • The values shown below are approximate and may vary from the actual sizes.

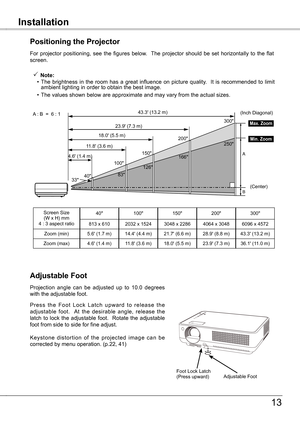

Positioning the Projector
For  projector  positioning,  see  the  figures  below.   The  projector  should  be  set  horizontally  to  the  flat screen.
Projection  angle  can  be  adjusted  up  to  10.0...

InstallationInstallation
14
This projector uses nominal input voltages of 100-10 V
or 00-40 V AC and it automatically selects the correct
input  voltage.    It  is  designed  to  work  with  single-phase power  systems  having  a  grounded  neutral  conductor.  To  reduce  the  risk  of  electrical  shock,  do  not  plug  into any other type of power system.If  you  are  not  sure  of  the  type  of  power  being  supplied, consult your authorized dealer or service station.Connect  the...

InstallationInstallation
15

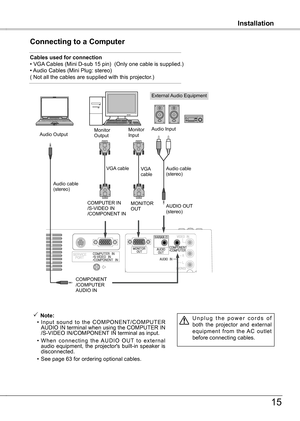

Connecting to a Computer
Cables used for connection • VGA Cables (Mini D-sub 15 pin)  (Only one cable is supplied.)• Audio Cables (Mini Plug: stereo)( Not all the cables are supplied with this projector.)
External Audio Equipment
VGA cable
Audio cable (stereo)
Audio cable  (stereo)
Audio Output
COMPONENT/COMPUTERAUDIO IN
AUDIO OUT (stereo)
Audio InputMonitor Output
COMPUTER IN  /S-VIDEO IN/COMPONENT IN
 Note:
  • Input  sound  to  the  COMPONENT/COMPUTER
AUDIO IN...

InstallationInstallation
16

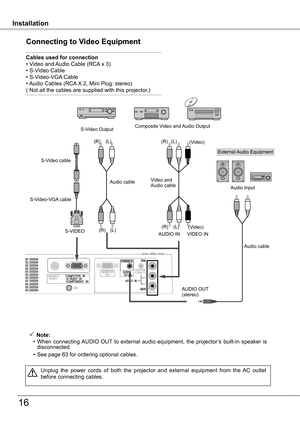

Connecting to Video Equipment
Cables used for connection• Video and Audio Cable (RCA x 3) • S-Video Cable• S-Video-VGA Cable
• Audio Cables (RCA X , Mini Plug: stereo)
( Not all the cables are supplied with this projector.)
 Note:
  • When  connecting AUDIO  OUT  to  external  audio  equipment,  the  projector’s  built-in  speaker  is
disconnected.
  • See page 63 for ordering optional
cables.
Unplug  the  power  cords  of  both  the  projector  and  external...

InstallationInstallation
17

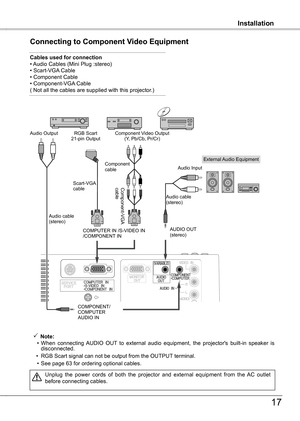

Connecting to Component Video Equipment
Cables used for connection • Audio Cables (Mini Plug :stereo)  • Scart-VGA Cable  • Component Cable  • Component-VGA Cable  ( Not all the cables are supplied with this projector.)
External Audio Equipment
COMPUTER IN /S-VIDEO IN/COMPONENT IN
COMPONENT/ COMPUTERAUDIO IN
Audio cable   (stereo)
Audio cable  (stereo)
Audio Input
Component Video Output(Y, Pb/Cb, Pr/Cr)RGB Scart
1-pin OutputAudio Output
Scart-VGA cable  Component-VGA...

Basic OperationBasic Operation

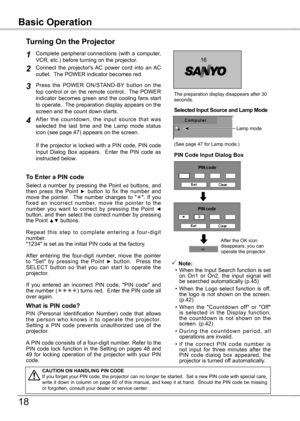

18
Connect  the  projector's AC  power  cord  into  an AC outlet.  The POWER indicator becomes red.
Press  the  POWER  ON/STAND-BY  button  on  the top  control  or  on  the  remote  control.    The  POWER indicator  becomes  green  and  the  cooling  fans  start to operate.  The preparation display appears on the screen and the count down starts.
2
3
1
4After  the  countdown,  the  input  source  that  was selected  the  last  time  and  the  Lamp  mode  status icon...

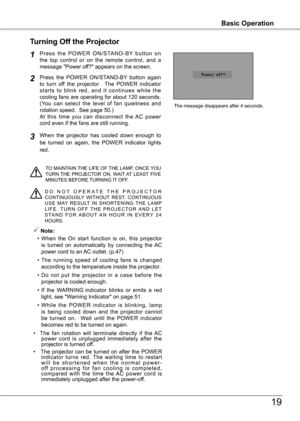

Basic OperationBasic Operation
19
P r e s s  t h e  P O W E R  O N / S TA N D - B Y  b u t t o n  o n the  top  control  or  on  the  remote  control,  and  a message "Power off?" appears on the screen.
Press  the  POWER  ON/STAND-BY  button  again to  turn  off  the  projector.    The  POWER  indicator starts  to  blink  red,  and  it  continues  while  the
cooling fans are operating for about 10 seconds.
(You  can  select  the  level  of  fan  quietness  and rotation speed.  See page...

Basic OperationBasic Operation
0

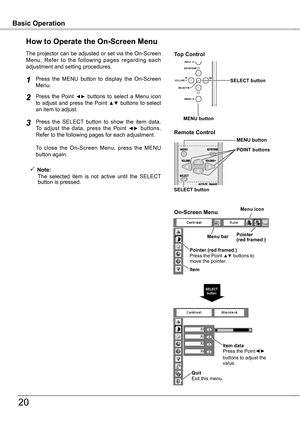

How to Operate the On-Screen Menu
The projector can be adjusted or set via the On-Screen Menu.  Refer  to  the  following  pages  regarding  each adjustment and setting procedures.
Press  the  Point ◄►  buttons  to  select  a  Menu  icon to  adjust  and  press  the  Point ▲▼  buttons  to  select an item to adjust.
Press  the  SELECT  button  to  show  the  item  data.  To  adjust  the  data,  press  the  Point ◄►  buttons.  Refer to the following pages for each...
