1
Basic OperationBasic Operation

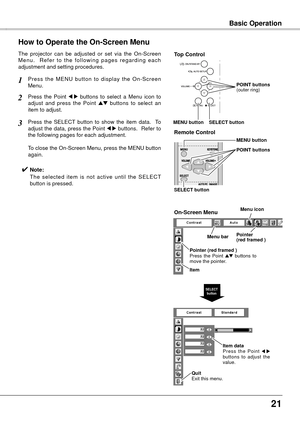

How to Operate the On-Screen Menu
The  projector  can  be  adjusted  or  set  via  the  On-Screen
M e n u .    R e f e r  t o  t h e  f o l l o w i n g  p a g e s  r e g a r d i n g  e a c h
adjustment and setting procedures.Press  the  Point
7  8  buttons  to  select  a  Menu  icon  to
adjust  and  press  the  Point ed  buttons  to  select  an
item to adjust.
Press  the  SELECT  button  to  show  the  item  data.    To
adjust the data, press the Point
7 8...


Basic Operation

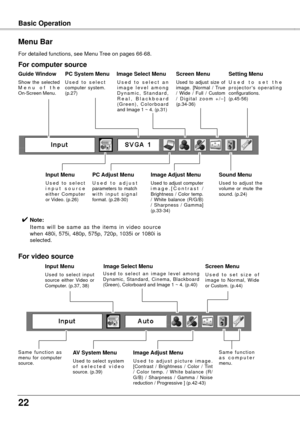

Menu Bar
PC System Menu
U s e d   t o   s e l e c t
computer  system.
(p.27)
Setting Menu
U s e d   t o   s e t   t h e
p r o j e c t o r ' s   o p e r a t i n g
configurations.
(p.45-56)
Image Select Menu
U s e d   t o   s e l e c t   a n
i m a g e   l e v e l   a m o n g
D y n a m i c ,   S t a n d a r d ,
R e a l ,   B l a c k b o a r d
( G r e e n ) ,   C o l o r b o a r d
and Image 1 ~ 4. (p.31)
For computer source
Guide Window
Show  the  selected
M e n u   o...


Basic OperationBasic Operation

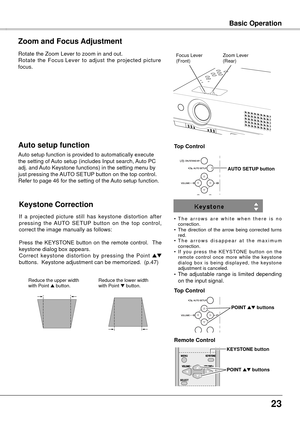

Rotate the Zoom Lever to zoom in and out.
Rotate  the  Focus Lever  to  adjust  the  projected  picture
focus.
Zoom and Focus Adjustment
Zoom Lever
(Rear)Focus Lever
(Front)
If  a  projected  picture  still  has  keystone  distortion  after
pressing  the  AUTO  SETUP  button  on  the  top  control,
correct the image manually as follows:
Press  the  KEYSTONE  button  on  the  remote  control.    The
keystone dialog box appears.
Correct  keystone  distortion...

4
Basic Operation

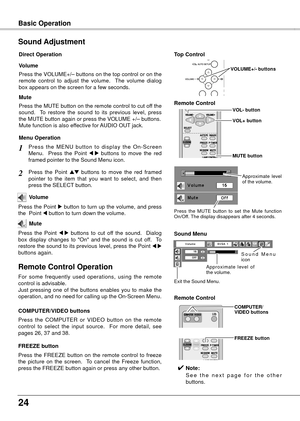

Press the VOLUME+/– buttons on the top control or on the
remote  control  to  adjust  the  volume.    The  volume  dialog
box appears on the screen for a few seconds.
Press the MUTE button on the remote control to cut off the
sound.    To  restore  the  sound  to  its  previous  level,  press
the MUTE button again or press the VOLUME +/– buttons.
Mute function is also effective for AUDIO OUT jack. Volume
Mute
Direct Operation
Sound Adjustment
1
2
Press  the  MENU  button  to...

5
Basic OperationBasic Operation
black out ➜ the captured image ➜ normal ➜ • • • • •

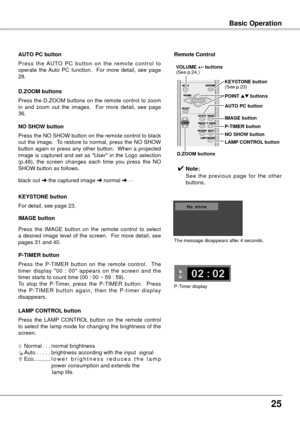

Press the NO SHOW button on the remote control to black
out the image.  To restore to normal, press the NO SHOW
button again or press any other button.  When a projected
image  is  captured  and  set  as  "User"  in  the  Logo  selection
(p.48),  the  screen  changes  each  time  you  press  the  NO
SHOW button as follows. NO SHOW button
P r e s s  t h e  A U TO  P C  b u t t o n  o n  t h e  r e m o t...

6
Computer Input

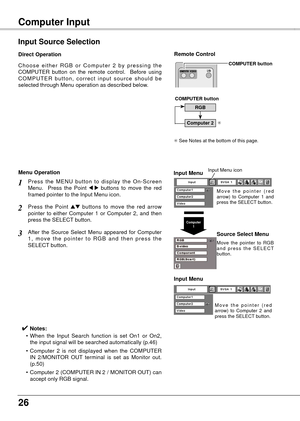

C h o o s e  e i t h e r  R G B  o r  C o m p u t e r  2  b y  p r e s s i n g  t h e
COMPUTER  button  on  the  remote  control.    Before  using
C O M P U T E R  b u t t o n ,  c o r r e c t  i n p u t  s o u r c e  s h o u l d  b e
selected through Menu operation as described below.
Input Source Selection
Direct Operation
RGB
COMPUTER button
✳ See Notes at the bottom of this page.
✳
Remote Control
COMPUTER button
Computer
Input Menu
Input Menu
M o v e   t h e   p o i n...

7
Computer Input Computer Input

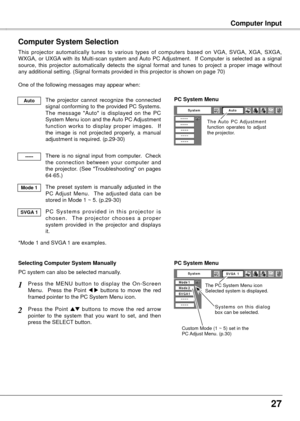

Computer System Selection
This  projector  automatically  tunes  to  various  types  of  computers  based  on  VGA,  SVGA,  XGA,  SXGA,
WXGA,  or  UXGA  with  its  Multi-scan  system  and Auto  PC Adjustment.    If  Computer  is  selected  as  a  signal
source,  this  projector  automatically  detects  the  signal  format  and  tunes  to  project  a  proper  image  without
any additional setting. (Signal formats provided in this projector is s\
hown on page 70)
One...

8
Computer Input

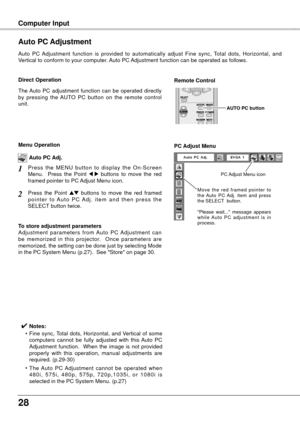

Auto  PC  Adjustment  function  is  provided  to  automatically  adjust  Fine  sync,  Total  dots,  Horizontal,  and
Vertical to conform to your computer. Auto PC Adjustment function can be operated as follows.
Auto PC Adjustment
The Auto  PC  adjustment  function  can  be  operated  directly
by  pressing  the  AUTO  PC  button  on  the  remote  control
unit.
Direct OperationRemote Control
AUTO PC button
Press  the  MENU  button  to  display  the  On-Screen
Menu.    Press  the...


Computer InputComputer Input

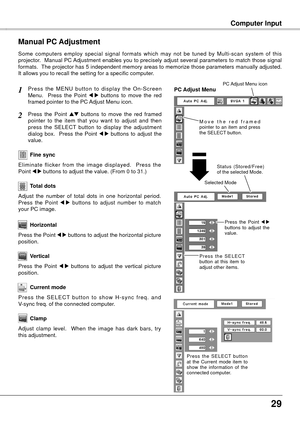

Press  the  MENU  button  to  display  the  On-Screen
Menu.    Press  the  Point 7  8  buttons  to  move  the  red
framed pointer to the PC Adjust Menu icon.
Press  the  Point ed  buttons  to  move  the  red  framed
pointer  to  the  item  that  you  want  to  adjust  and  then
press  the  SELECT  button  to  display  the  adjustment
dialog  box.    Press  the  Point
7  8  buttons  to  adjust  the
value.
Manual PC Adjustment
Some  computers  employ  special...

0
Computer Input

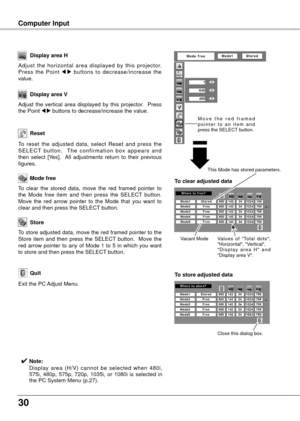

Adjust  the  horizontal  area  displayed  by  this  projector.
Press  the  Point 7  8  buttons  to  decrease/increase  the
value. Display area H
Adjust  the  vertical  area  displayed  by  this  projector.    Press
the Point 7 8 buttons to decrease/increase the value.
Display area V
Reset
Store
Exit the PC Adjust Menu.
Quit
To store adjusted data, move the red framed pointer to the
Store  item  and  then  press  the  SELECT  button.    Move  the
red  arrow  pointer  to  any...
