Sony Dev5 User Manual

1GB
Customizing this product

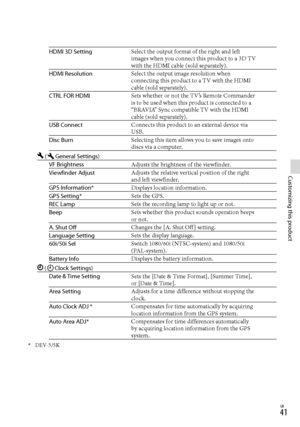

HDMI 3D SettingSelect the output format of the right and left
images when you connect this product to a 3D TV
with the HDMI cable (sold separately).
HDMI Resolution Select the output image resolution when
connecting this product to a TV with the HDMI
cable (sold separately).
CTRL FOR HDMI Sets whether or not the TV’s Remote Commander
is to be used when this product is connected to a
“BRAVIA” Sync compatible TV with the HDMI
cable (sold separately).
USB Connect...

GB
Additional information
 Troubleshooting
If you run into any problems using this
product, follow the steps below.
 Check the list (p. 42 to 43), and
inspect this product.
 Remove the power source, attach
the power source again after about 1
minute, and turn this product on.
 Press RESET (p. 53) using a pointed
object, and turn this product on.
If you press RESET, all settings,
including the clock setting, are reset.
 Contact your Sony dealer or local
authorized Sony service...

GB
Additional information

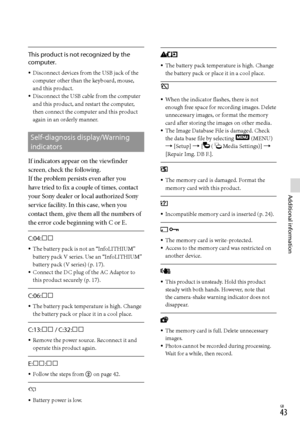

This product is not recognized by the
computer.
Disconnect devices from the USB jack of the
computer other than the keyboard, mouse,
and this product.
Disconnect the USB cable from the computer
and this product, and restart the computer,
then connect the computer and this product
again in an orderly manner.
Self-diagnosis display/Warning
indicators
If indicators appear on the viewfinder
screen, check the following.
If the problem persists even after you
have...

GB

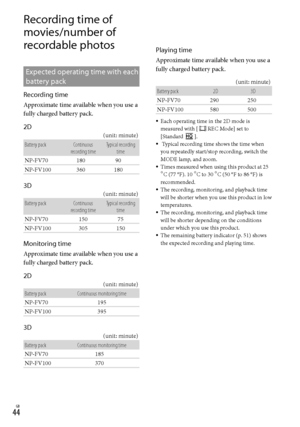

Recording time of
movies/number of
recordable photos
Expected operating time with each
battery pack
Recording time
Approximate time available when you use a
fully charged battery pack.
2D(unit: minute)
Battery pack Continuous  recording timeTypical recording
time
NP-FV70  180 90
NP-FV100 360 180
3D(unit: minute)
Battery pack Continuous  recording timeTypical recording
time
NP-FV70 150 75
NP-FV100 305 150
Monitoring time
Approximate time available when you use a
fully charged battery...

GB
Additional information

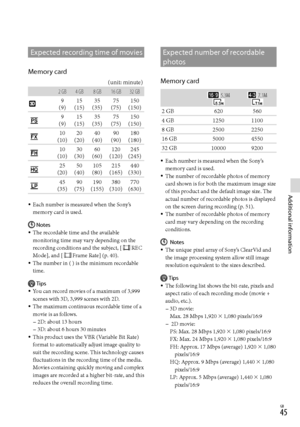

Expected recording time of movies
Memory card
(unit: minute)
2 GB 4 GB 8 GB 16 GB 32 GB
9
(9) 15
(15) 35
(35) 75
(75) 150
(150)
9
(9) 15
(15) 35
(35) 75
(75) 150
(150)
10
(10) 20
(20) 40
(40) 90
(90) 180
(180)
10
(10) 30
(30) 60
(60) 120
(120) 245
(245)
25
(20) 50
(40) 105
(80) 215
(165) 440
(330)
45
(35) 90
(75) 190
(155) 380
(310) 770
(630)
Each number is measured when the Sony’s
memory card is used.
Notes
The recordable time and the available
monitoring time may...

GB
The photo recording pixels and the aspect ratio.Photo recording mode:
3,072  2,304 dots/4:3
3,072  1,728 dots/16:9
1,600  1,200 dots/4:3
640  480 dots/4:3

Precautions
On use and care
Do not use or store this product and accessories
in the following locations:Anywhere extremely hot, cold or humid.
Never leave them exposed to temperatures
ab
o

ve 60 C (140 °F), such as under direct
sunlight, near heaters or in a car parked in
the sun. They may malfunction or become
deformed....

GB
Additional information
On charging the pre-installed
rechargeable battery
This product has a pre-installed rechargeable
battery to retain the date, time, and other settings
even when this product is turned off. The pre-
installed rechargeable battery is always charged
while this product is connected to the wall outlet
(wall socket) via the AC Adaptor or while the
battery pack is attached. The rechargeable battery
will be fully discharged in about 3 months if you
do not use this...

GB
Specifications
SystemSignal format:HDTV 1080/60i, 1080/60p specification
NTSC color, EIA standards
HDTV 1080/50i, 1080/50p specification
PAL color, CCIR standards
Movie recording format: HD:
2D: MPEG-4 AVC/H.264 AVCHD format
Ver.2.0 compatible
3D: MPEG-4 MVC/H.264 AVCHD format
Ver.2.0 compatible
Audio recording system: Do
l

by Digital 2ch (48 kHz 16 bit)
Dolby Digital Stereo Creator
 Photo file format DCF Ver.2.0 Compatible
Exif Ver.2.3 Compatible
MPF Baseline Compatible
Recording media...

GB
Additional information

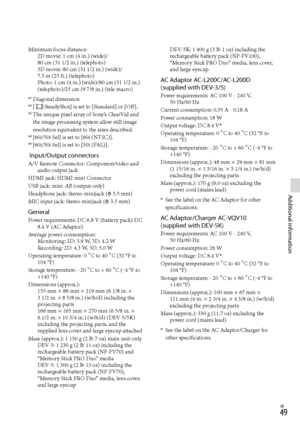

Minimum focus distance:2D movie: 1 cm (4 in.) (wide)/
80 cm (31  1/2
 in.) (telephoto)
3D movie: 80 cm (31 1/2 in.) (wide)/
7.5  m (25

 ft.) (telephoto)
Photo: 1 cm (4 in.) (wide)/80 cm (31 1/2 in.)
(telephoto)/25 cm (9 7/8 in.) (tele macro)
*1  Diagonal dimension*2 [SteadyShot] is set to [Standard] or [Off ].*3 The unique pixel array of Sony’s ClearVid and
the image processing system allow still image
resolution equivalent to the sizes described.
*4 [60i/50i...

0GB
Rechargeable battery pack NP-FV70
(supplied with DEV-3/5)
Maximum output voltage: DC 8.4 V
Output voltage: DC 6.8 V
Maximum charge voltage: DC 8.4 V
Maximum charge current: 3.0 A
CapacityTypic

al: 14.0 Wh (2 060 mAh)
Minimum: 13.0 Wh (1 960 mAh)
Type: Li-ion
Rechargeable battery pack NP-FV100
(supplied with DEV-5K)
Maximum output voltage: DC 8.4 V
Output voltage: DC 6.8 V
Maximum charge voltage: DC 8.4 V
Maximum charge current: 3.0 A
Capacity Typic

al: 26.5 Wh (3 900 mAh)
Minimum: 25.0 Wh (3...
