Cleaning the Air
Filter
When “Please clean the filter.” appears on
the screen, you should clean the air filter.
The air filter should be cleaned every 1,500
hours. This value varies depending on the
environment or how the projector is used.
1,500 hours are approximate.
After washing the air filter with a mild
detergent solution, dry it in a shaded place.
 When you clean the air filter, make sure you
do not damage it.
For details on how to attach and remove the
air filter, see...

 62
Specifications
System
Projection system
SXRD panel, 1 lens, projection
system
LCD panel 0.61-inch (15.4 mm) SXRD panel
6,220,800 pixels (2,073,600 pixels
× 3)
Lens 1.8 times zoom lens (motorized)
f18.7 to 33.7 mm/F2.54 to 3.53
Lamp 200 W Ultra High Pressure Lamp
Projection picture size
40 to 300 inches (1,016 mm to
7,620 mm) (measured diagonally)
Color system NTSC
3.58/PAL/SECAM/NTSC4.43/
PAL-M/PAL-N/PAL60 system,
switched automatically/manually
(PAL60 system not switched
manually)...

63
Others
Supplied accessories
Remote control RM-PJVW60 (1)
Size AA (R6) batteries (2)
AC power cord (1)
Lens Cap (1)
Operating Instructions (1)
CD-ROM (ImageDirector3) (1)
Design and specifications are subject to change
without notice.
Optional accessories
Projector Lamp LMP-H200 (for replacement)
Projector Suspension Support PSS-H10

 64
Warning on power connection
Use a proper power cord for your local power supply.
* Use a rated plug that complies with the regulation of each country/region and the specifications.
The following table shows the signals and video formats which you can project using this
unit.
When a signal other than the preset signal shown below is input, the picture may not be
displayed properly.
The United States,
CanadaContinental
EuropeUK, Ireland,
Australia,
New ZealandJapan China
Plug type YP-3 YP-12A *...

65
Others
9 1080/24PsF 1080/48i
(1920×1080i)27.000 48.000 SonG/Y –
10 720/60p 720/60p
(1280×720p)45.000 60.000 SonG/Y –
11 720/50p 720/50p
(1280×720p)37.500 50.000 SonG/Y –
12 1080/60p 1080/60p
(1920×1080p)67.500 60.000 – –
13 1080/50p 1080/50p
(1920×1080p)56.260 50.000 – –
14 1080/24p 1080/24p
(1920×1080p)26.973 23.976 – –
21 640 × 350 VGA-1 (VGA350) 31.469 70.086 H-pos, V-neg 800
22 VESA 85
(VGA350)37.861 85.080 H-pos, V-neg 832
23 640 × 400 NEC PC98 24.823 56.416 H-neg V-neg 848
24 VGA-2...

 66
Preset memory numbers for each input signal
Analog signal
Digital signal
50 1400 × 1050 SXGA + 65.317 59.978 H-neg, V-pos 1864
55 1280 × 768 1280 × 768/60 47.776 59.870 H-neg, V-pos 1664
56 1280 × 720 1280 × 720/60 44.772 59.855 H-neg, V-pos 1664
Signal Preset memory number
Video signal (VIDEO INPUT and
S VIDEO INPUT connectors) 1, 2
Component signal (INPUT A and Y P
B/CB PR/
CR connectors)3 to 11
Video GBR signal (INPUT A connector) 3 to 11
Computer signal (INPUT A connector) 21 to 39, 55 to 56...

67
Others
Some of the items in the menus cannot be adjusted depending on the input signal. The
following tables indicate them.
The items that cannot be adjusted are not displayed in the menu.
z : Adjustable/can be set
–  : Not adjustable/cannot be set
Input Signals and Adjustable/Setting Items
Item Input signal
Video signal Component
signalVideo GBR signal PC signal
Advanced Iriszzzz
Lamp Controlzzzz
Contrastzzzz
Brightnesszzzz
Color
z(except for B & W)zz–
Huez
(NTSC
3.58/
NTSC4.43 only,
except for...

 68
Screen menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*
1: This item is effective only when “Over Scan” is set to “On” in the Screen   menu.
*2: If the input signal is from a computer, the setting cannot be made when the aspect ratio is 16:9
or wider.
*
3: The setting can be made only when “Zoom” is selected in “Wide Mode”.
*4: The setting can be made only for analog signal.
When connecting a cable such as an HDMI cable, etc., check the type of the signal in the Information
 Menu...

69
Others
Ceiling Installation
Use the PSS-H10 Projector Suspension Support when you install the projector on a
ceiling. The projection distances for ceiling installation are shown below.

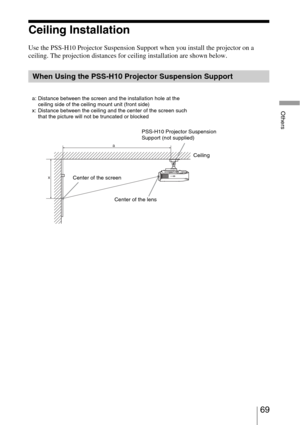

When Using the PSS-H10 Projector Suspension Support
a
x
a: Distance between the screen and the installation hole at the
ceiling side of the ceiling mount unit (front side)
x: Distance between the ceiling and the center of the screen such
that the picture will not be truncated or blocked
PSS-H10 Projector Suspension...

 70
When using the 16:9 aspect ratio screen
Unit: mm (inches)
To calculate the installation measurements (SS: Screen Size)
a (minimum) = 31.5 (1
1/4) × SS + 143.1 (5 3/4)
a (maximum) = 53.8 (2 1/8) × SS + 144.4 (5 3/4)
x (minimum) = 6.2263 (1/4) × SS
x (maximum) = 8.0876 (11/32) × SS + 268.5 (10 5/8)
When using the 4:3 aspect ratio screen
Unit: mm (inches)
To calculate the installation measurements (SS: Screen Size)
a (minimum) = 38.551 (1
9/16) × SS + 143.1 (5 3/4)
a (maximum) = 65.842 (2 5/8) × SS +...
