Sony Vpl Cx85 Projector User Manual

41 GBMaintenance
Maintenance
BMaintenance
Maintenance

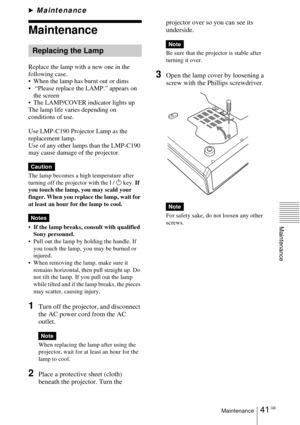

Replace the lamp with a new one in the
following case.
 When the lamp has burnt out or dims
  “Please replace the LAMP.” appears on
the screen
 The LAMP/COVER indicator lights up
The lamp life varies depending on
conditions of use.
Use LMP-C190 Projector Lamp as the
replacement lamp.
Use of any other lamps than the LMP-C190
may cause damage of the projector.
The lamp becomes a high temperature after
turning off the projector with the I /1...

GB 42Maintenance

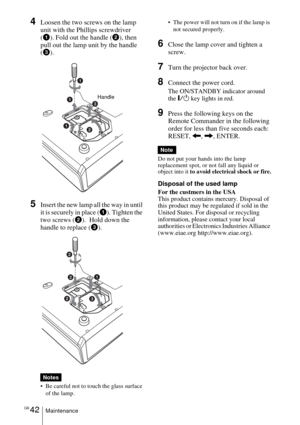

4Loosen the two screws on the lamp
unit with the Phillips screwdriver
(1). Fold out the handle (2), then
pull out the lamp unit by the handle
(3).
5Insert the new lamp all the way in until
it is securely in place (1). Tighten the
two screws (2).  Hold down the
handle to replace (3).
 Be careful not to touch the glass surface
of the lamp. The power will not turn on if the lamp is
not secured properly.
6Close the lamp cover and tighten a
screw.
7Turn the projector back...

43 GBMaintenance
Maintenance

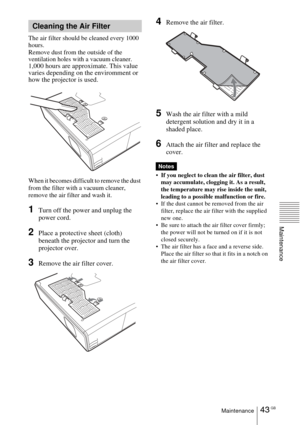

The air filter should be cleaned every 1000
hours.
Remove dust from the outside of the
ventilation holes with a vacuum cleaner.
1,000 hours are approximate. This value
varies depending on the enviromment or
how the projector is used.
When it becomes difficult to remove the dust
from the filter with a vacuum cleaner,
remove the air filter and wash it.
1Turn off the power and unplug the
power cord.
2Place a protective sheet (cloth)
beneath the projector and turn the...

GB 44Maintenance
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem
using the following instructions. If the problem persists, consult with qualified Sony
personnel.
Power
Symptom Cause and Remedy
The power is not turned on.  The power has been turned off and on with the I / 1 key at a short
interval.
cWait for about 60 seconds before turning on the power
(see page 25).
 The lamp cover is detached.
cClose the lamp cover securely (see page...

45 GBMaintenance
Maintenance
Symptom Cause and Remedy
No picture.  Cable is disconnected or the connections are wrong.
cCheck that the proper connections have been made
(see page 20).
 The connections are wrong.
cThis projector is compatible with a DDC2B (Digital Data
Channel 2B). If your computer is compatible with a DDC, turn
the projector on according to the following procedures.
1Connect the projector to the computer.
2Turn the projector on.
3Start the computer.
 Input selection is...

GB 46Maintenance
Sound
Remote Commander/Presentation tool
The picture is too dark.  Contrast or brightness has not been adjusted properly.
cAdjust the contrast or brightness in the “Adjust Picture...” menu
properly (see page 33).
 The lamp has burnt or dims.
cReplace the lamp with a new one (see page 41).
The picture is not clear.  Picture is out of focus.
cAdjust the focus (see page 25).
 Condensation has occurred on the lens.
cLeave the projector for about two hours with the power on.
The image...

47 GBMaintenance
Maintenance
Others
Warning Messages
Use the list below to check the meaning of the messages displayed on the screen.
The computer cannot be
controlled with the
presentation tool. The USB cable is used.
 The Air Shot is not used.
cThe presentation tool is designed to use with the Air Shot.
Use the Remote Commander to operate the device connected via
the USB cable.
Symptom Cause and Remedy
The LAMP/COVER
indicator flashes. The lamp cover or the air filter cover is detached.
cAttach...

GB 48Maintenance
Caution Messages
Use the list below to check the meaning of the messages displayed on the screen.
Frequency is out of range!  This input signal cannot be projected as the frequency is out of the
acceptable range of the projector.
cInput a signal that is within the range of the frequency.
 The resolution setting of the output signal of a computer is too
high.
cSet the setting of output to XGA (see page 20).
Please check Input-A
Signal Sel. You have input RGB signal from the computer...

49 GBSpecifications
Others
BOthers
Specifications
Optical characteristics
Projection system
3 LCD panels, 1 lens, projection
system
LCD panel 0.79-inch XGA panel, about
2,360,000 pixels (786,432
pixels × 3)
Lens 1.2 times zoom lens (powered)
f 23.5 to 28.2 mm/F1.6 to 1.78
Lamp 190 W UHP
Projection picture size
40 to 300 inches (measured
diagonally)
Light output ANSI lumen
1) 3000 lm
(When the Lamp Mode is set to
“High”)
Throwing distance (When placing on the floor)
When the XGA signal is input...

GB 50SpecificationsComposite sync input: 1-5 Vp-p
high impedance, positive/
negative
Horizontal sync input: 1-5 Vp-p
high impedance, positive/
negative
VD:
Vertical sync input: 1-5 Vp-p
high impedance, positive/
negative
AUDIO: Stereo minijack
(Common INPUT A/B)
500 mVrms, impedance more
than 47 kilohms
INPUT B Analog RGB: HD D-sub 15-pin
(female)
R: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G: 0.7 Vp-p ±2 dB (75 ohms
terminated)
G with sync: 1 Vp-p ±2 dB sync
negative (75 ohms terminated)
B: 0.7 Vp-p...
