Stiga Lawn Mower 8211 0208 10 Operators Manual
Here you can view all the pages of manual Stiga Lawn Mower 8211 0208 10 Operators Manual . The Stiga manuals for Lawn Mower are available online for free. You can easily download all the documents as PDF.
Page 1
DEUTSCHD 8211-0208-10
Page 2
SVENSKAS 2. 3.B4. 1. 6. FD E 5. B 7.
Page 3
SVENSKA S 12. Briggs & Stratton LS 45 ADD FULL FULL ADD 8.9. Briggs & Stratton LS 45 10. Briggs & Stratton XTE, LS 60, Intek 13. Briggs & Stratton XTE, LS 60 11. Honda GCV 14. Honda GCV15.FULL/MAX ADD/MIN I* B* G 3x 0,15 l. ADD FULL
Page 4
SVENSKAS 17. YX 19. Vänster / Left 22. Briggs & Stratton XTE, LS 60, Intek21. Briggs & Stratton LS 45 18. 23. Honda GCV24. 20. Höger / Right 0,75 mm Briggs & Stratton : 0,76 mm Honda: 0,7-0,8 mm 16.

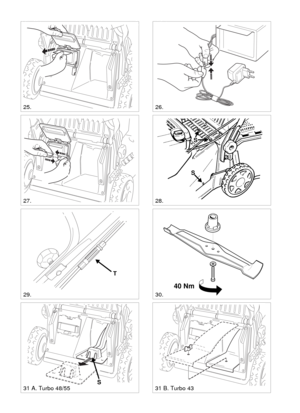

Page 5
SVENSKA S S S 26. 29. 28. 31 A. Turbo 48/55 30. 25. 27. 40 Nm S 31 B. Turbo 43 T
Page 6
5 ENGLISHGB SYMBOLS The following symbols can be found on the ma- chine to remind you of the care and attention that are required during use. The symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plug. IMPORTANT Equipment which is...
Page 7

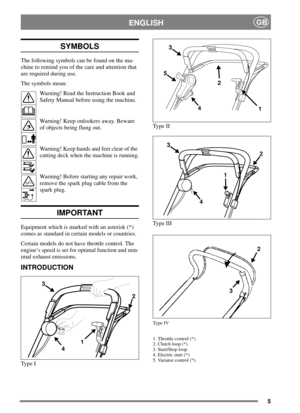

6 ENGLISHGB INSTALLATION LOOSE PARTS IN THE BOX 2 brackets for the grass collector 4 screws for the brackets 1 ignition key (*) 1 battery charger (*) 1 Allen key 1 socket wrench + Instruction books HANDLE (Type I-III) 1. Fold up the lower part of the handle. 2. Install the upper part of the handle mounts using screws, washers and locking wheels. A lug is installed on the right hand side for the starter handle (fig. 1). 3. Then tighten the locking wheels onto the lower part of the handle. When these have...
Page 8
7 ENGLISHGB To remove the plug, press in the catch (S). On re- installing the plug ensure that both pins are pressed firmly into the holes so that the plug snaps in place. Turbo43Combi: To remove the plug, unscrew the wing nut. 2. COLLECTION Assemble the grass collector provided (fig. 6, 8). Open the flap, remove the plug and instead hook the collector onto the rear of the machine. When mowing, the grass is collected in the collec- tor. Empty the grass onto the compost heap or spread it over borders as...
Page 9
8 ENGLISHGB STARTING THE ENGINE (Honda) 1. Place the lawnmower on flat, firm ground. Do not start in long grass. 2. Make sure the spark plug cable is connected to the spark plug. 3. Open the fuel tap (fig. 14). 4. Set the throttle controlBin the choke posi- tion . NOTE! It is not necessary to use the choke position when the engine is warm (fig. 15). 5. Press the Start/Stop loopGtowards the handle. NOTE! The Start/Stop loopGmust be kept pressed in to prevent the engine stopping (fig. 15). 6. Grasp the...
Page 10
9 ENGLISHGB If grass has dried on to the mower casing, it can be scraped clean. If necessary, touch up the underside with paint to prevent rust damage. Clean the silencer and the surrounding area regularly to remove grass, dirt and flammable waste products. Remove the transmission casing by removing the screwsS(fig. 28) and clean around the transmis- sion (*) and drive belts (*) with a brush or com- pressed air once or twice a year. Once every season, the drive wheels (*) should be cleaned internally....
