Stiga Lawn Mower 8211 0319 03 PWR330 ERMA Instructions For Use

DEUTSCHD
PWR330ERMA
8211-0319-03
INSTRUCTIONS FOR USE

2
SVENSKA S
1.
2.
1
3 2
43 = 40 mm
4 = 50 mm2 = 30 mm 1 = 20 mm
3
4
∅ 130 mm
∅ 160 mm
A
BC 12
12
4
5
3
7
8
97
7
7
2 2
3.
4.1

3
SVENSKAS
5.
6.
7.

4
ENGLISHGB
SAFETY INSTRUCTIONS
SYMBOLS
The following symbols can be found on the ma-
chine to remind you of the care and attention that
are required during use.
The symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep onlookers away. Beware
of objects being flung out.
Warning! Before carrying out any repair
work make sure the machine is unplugged.
Warning! Keep the extension cable away
from the cutting system.
Warning! Keep hands and feet clear...

5
ENGLISHGB
• Do not mow slopes with a gradient of more than
15°.
• Take great care when reversing or when pulling
the lawnmower towards yourself.
• Shut off the engine if the lawnmower has to be
tilted during transport on surfaces other than
grass, and when the lawnmower is being trans-
ported to and from the area to be mowed.
• Never operate the lawnmower with insufficient
protection or without safety devices in place,
e.g. a grass collector.
• Start the engine carefully, following the instruc-...

6
ENGLISHGB
INSTALLATION

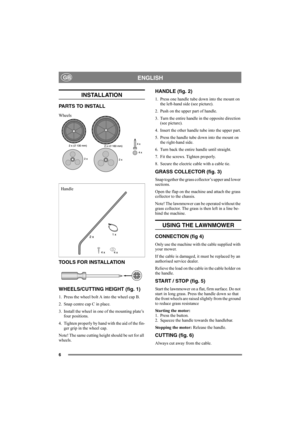

PARTS TO INSTALL
TOOLS FOR INSTALLATION
WHEELS/CUTTING HEIGHT (fig. 1)
1. Press the wheel bolt A into the wheel cap B.
2. Snap centre cap C in place.
3. Install the wheel in one of the mounting plate’s
four positions.
4. Tighten properly by hand with the aid of the fin-
ger grip in the wheel cap.
Note! The same cutting height should be set for all
wheels.
HANDLE (fig. 2)
1. Press one handle tube down into the mount on
the left-hand side (see picture).
2. Push on the upper...

7
ENGLISHGB
Empty the grass collector in good time to ensure
that the grass ejector does not become blocked, so
impairing the collecting ability.
To avoid overloading the motor, do not push the
lawnmower too fast in long grass.
MAINTENANCE
CHANGING THE BLADE
Always unplug at the mains before performing
maintenance, cleaning or other work on the ma-
chine.
Wear protective gloves. Loosen the blade bolt with
a 26 mm spanner. Fit the new blade, tightening
torque 15 Nm.
Always use genuine spare parts....

8
ENGLISHGB
wheels and cables
- normal wear
- engines. These are covered by the appropriate
manufacturer’s guarantees with separate terms
and conditions.
The purchaser is covered by each country’s nation-
al laws. The rights to which the purchaser is enti-
tled with the support of these laws are not
restricted by this guarantee.

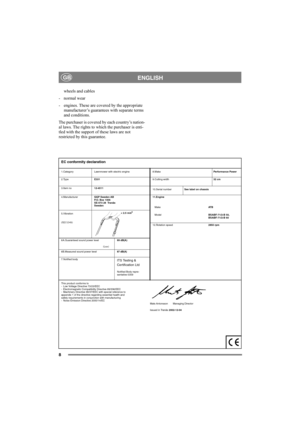

1.Category Lawnmower with electric engine
E331 2.Type
12-4511 3.Item no
GGP Sweden AB
P.O. Box 1006
SE-573 28  Tranås
Sweden 4.Manufacturer
STOP5.Vibration< 2.5 m/s2
(ISO...
