Stiga Lawn Mower 8211 0324 01 Turbo 48S 55S Roller Owners Manual

DEUTSCHD
8211-0324-01
Turbo 48 S Roller
Turbo 55 S Roller
Owner’s Manual

3
SVENSKAS
B
FD
E
2.
3.4.
1.
6.
8.
5.
7.

4
SVENSKA S
YX
S
T
O
P
9.
11.
14.
12.
15.
0,15 l.
ADD
FULL
10.
0,75 mm
16.
I G
13.

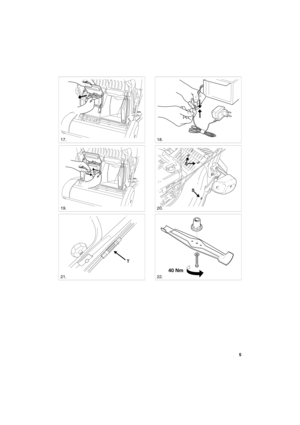

5
SVENSKAS
S
S
40 Nm
T
18.
19.
17.
21.
20.
22.

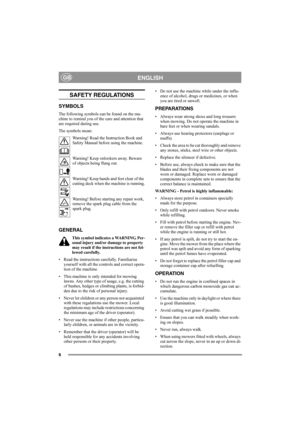

6
ENGLISHGB
SAFETY REGULATIONS
SYMBOLS
The following symbols can be found on the ma-
chine to remind you of the care and attention that
are required during use.
The symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep onlookers away. Beware
of objects being flung out.
Warning! Keep hands and feet clear of the
cutting deck when the machine is running.
Warning! Before starting any repair work,
remove the spark plug cable from the
spark plug....

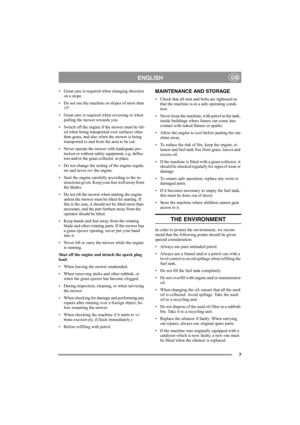

7
ENGLISHGB
• Great care is required when changing direction
on a slope.
• Do not use the machine on slopes of more than
15°.
• Great care is required when reversing or when
pulling the mower towards you.
• Switch off the engine if the mower must be tilt-
ed when being transported over surfaces other
than grass, and also when the mower is being
transported to and from the area to be cut.
• Never operate the mower with inadequate pro-
tection or without safety equipment, e.g. deflec-
tors and/or the...

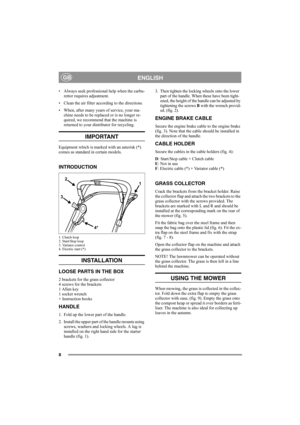

8
ENGLISHGB
• Always seek professional help when the carbu-
rettor requires adjustment.
• Clean the air filter according to the directions.
• When, after many years of service, your ma-
chine needs to be replaced or is no longer re-
quired, we recommend that the machine is
returned to your distributor for recycling.
IMPORTANT
Equipment which is marked with an asterisk (*)
comes as standard in certain models.
INTRODUCTION
1. Clutch loop
2. Start/Stop loop
3. Variator control
4. Electric start (*)...

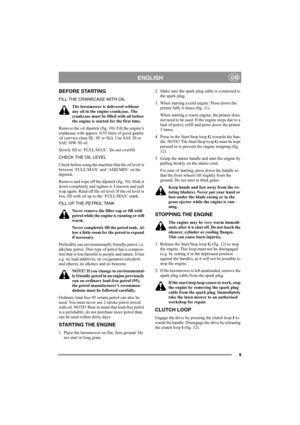

9
ENGLISHGB
BEFORE STARTING
FILL THE CRANKCASE WITH OIL
The lawnmower is delivered without
any oil in the engine crankcase. The
crankcase must be filled with oil before
the engine is started for the first time.
Remove the oil dipstick (fig. 10). Fill the engine’s
crankcase with approx. 0.55 litres of good quality
oil (service class SE, SF or SG). Use SAE 30 or
SAE 10W-30 oil.
Slowly fill to ‘FULL/MAX’. Do not overfill.
CHECK THE OIL LEVEL
Check before using the machine that the oil level is...

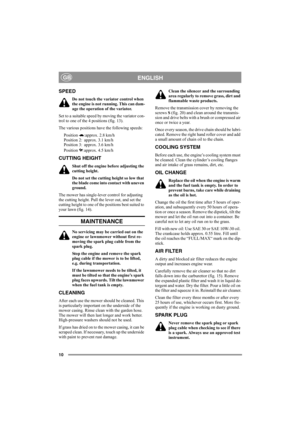

10
ENGLISHGB
SPEED
Do not touch the variator control when
the engine is not running. This can dam-
age the operation of the variator.
Set to a suitable speed by moving the variator con-
trol to one of the 4 positions (fig. 13).
The various positions have the following speeds:
Position  :approx. 2.8 km/h
Position 2:  approx. 3.1 km/h
Position 3:  approx. 3.6 km/h
Position  : approx. 4.5 km/h
CUTTING HEIGHT
Shut off the engine before adjusting the
cutting height.
Do not set the cutting height so low that...
