STIGA TURBO 55 S ROLLER 48 S ROLLER 8211-0324-02
Page 2
2 SVENSKA S A B 3 12 12 34 56 78
Page 3
3 SVENSKAS I* B* G Briggs & Stratton FULL/MAX ADD/MIN Honda 0,15 l. ADD FULL Briggs & Stratton 910 1112 1314 1516
Page 4
4 SVENSKA S Honda GCVBriggs & Stratton XTE YX Honda1718 2019 2122 2423
Page 5

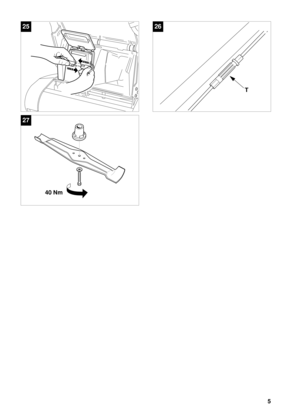

5 SVENSKAS T 40 Nm 2526 27
Page 6

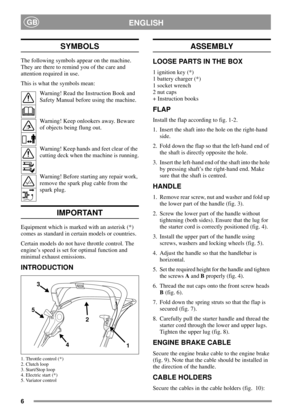

6 ENGLISHGB SYMBOLS The following symbols appear on the machine. They are there to remind you of the care and attentionrequiredinuse. This is what the symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plug. IMPORTANT Equipment which...
Page 7

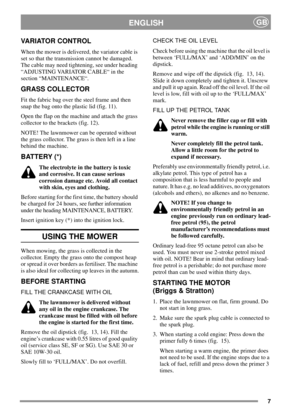

7 ENGLISHGB VARIATOR CONTROL When the mower is delivered, the variator cable is set so that the transmission cannot be damaged. The cable may need tightening, see under heading “ADJUSTING VARIATOR CABLE“ in the section “MAINTENANCE“. GRASS COLLECTOR Fit the fabric bag over the steel frame and then snap the bag onto the plastic lid (fig. 11). Open the flap on the machine and attach the grass collector to the brackets (fig. 12). NOTE! The lawnmower can be operated without the grass collector. The grass is...
Page 8

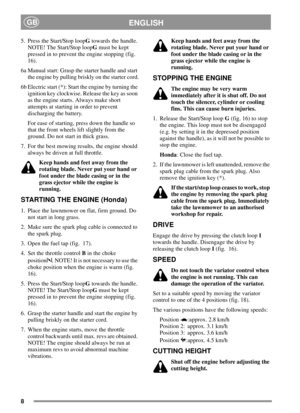

8 ENGLISHGB 5. Press the Start/Stop loopGtowards the handle. NOTE! The Start/Stop loopGmust be kept pressed in to prevent the engine stopping (fig. 16). 6a Manual start: Grasp the starter handle and start the engine by pulling briskly on the starter cord. 6b Electric start (*): Start the engine by turning the ignition key clockwise. Release the key as soon as the engine starts. Always make short attempts at starting in order to prevent discharging the battery. For ease of starting, press down the handle...
Page 9

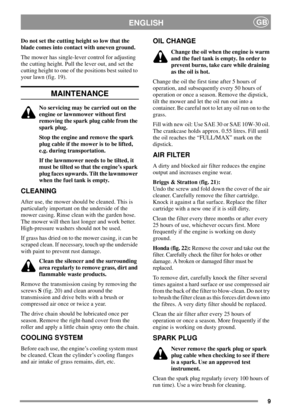

9 ENGLISHGB Do not set the cutting height so low that the blade comes into contact with uneven ground. The mower has single-lever control for adjusting the cutting height. Pull the lever out, and set the cutting height to one of the positions best suited to your lawn (fig. 19). MAINTENANCE No servicing may be carried out on the engine or lawnmower without first removing the spark plug cable from the spark plug. Stop the engine and remove the spark plug cable if the mower is to be lifted, e.g. during...
Page 10

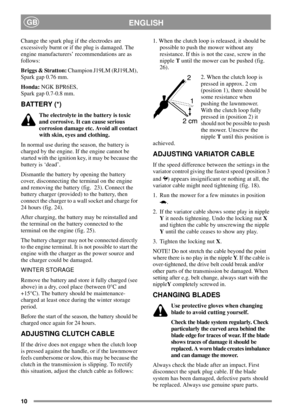

10 ENGLISHGB Change the spark plug if the electrodes are excessively burnt or if the plug is damaged. The engine manufacturers’ recommendations are as follows: Briggs & Stratton:Champion J19LM (RJ19LM), Spark gap 0.76 mm. Honda:NGK BPR6ES, Spark gap 0.7-0.8 mm. BATTERY (*) The electrolyte in the battery is toxic and corrosive. It can cause serious corrosion damage etc. Avoid all contact with skin, eyes and clothing. In normal use during the season, the battery is charged by the engine. If the engine...
