DEUTSCHD COMBI 8211-3442-054545S 45SE
Page 2
3 SVENSKAS 2. 3.4. A B 1. 5. 1 23 4 56 ADD FULL FULL ADD 6. LS45 0,15 l. ADD FULL 7. ES45
Page 3
4 SVENSKA S 3x STOP 10. 3x 9. ES45 11 . 8. LS45 G I* 12. F A A A 13. LS45 14. ES4515. LS45 F
Page 4
5 SVENSKAS 20. ES45 16. ES4517. Left18. Right 19. LS45 22.21. 0,75 mm 23.24.
Page 5
6 SVENSKA S 27. 25. 28. 45 Nm 26. 29. P S
Page 6
8 ENGLISHGB SYMBOLS The following symbols are displayed on the ma- chine in order to remind you about the safety pre- cautions and attention necessary when using the machine. The symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep spectators away. Beware of objects being flung out. Warning! Do not put hands or feet under the cover of the machine when it is run- ning. Warning! Before starting any repair work, remove the spark plug cable from the spark...
Page 7
9 ENGLISHGB 2. COLLECTION Assemble the enclosed grass collector (fig. 5). Open the cover, remove the plug and this time hook the collector in place onto the back of the ma- chine. During cutting, the grass is collected in the collec- tor. Empty the grass on the compost heap or spread it out on the flower bead as fertilizer. The machine is also excellent for collecting leaves in the au- tumn. BEFORE STARTING FILL THE CRANKCASE WITH OIL The lawn mower is delivered without any oil in the motor crankcase....
Page 8
10 ENGLISHGB 2. If the lawn mower is left unattended to, remove the lead from the spark plug. Also remove the starter key (*). If the start/stop loop no longer works, stop the engine by removing the lead from the spark plug. Immediately take the lawn mower to an authorised work- shop for repairs. REAR WHEEL DRIVE (*) Engage the drive by pressing coupling clampI against the steering handle. Disengage the drive by releasing coupling clampI(fig. 10). CUTTING HEIGHT Shut off the motor before adjusting the...
Page 9
11 ENGLISHGB CHANGING OIL Replace the oil when the engine is warm and the fuel tank is empty. Take care whiledrainingastheoilishot,thisisto prevent burns. Change the oil the first time after 5 hours of oper- ation, and subsequently after every 50 hours of op- eration or once a season. Remove the dip stick, tilt the mower and let the oil run out into a contain- er.Becarefulnottoletanyoilrunontothegrass. Fill with new oil: use oil of SAE 30 or SAE 10W- 30 quality. The crankcase holds approx. 0.6 litre....
Page 10

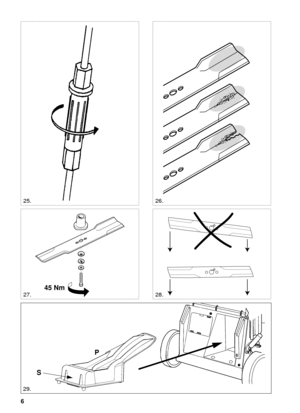

12 ENGLISHGB Always check the blade(s) after an impact.First disconnect the ignition cable.If the blade system has been damaged the defective parts must be changed. Always use genuine spare parts. To change blades, loosen the blade bolt. Mount the new blade so that it sits in the same way as the old one and tighten the blade bolt (fig. 27). Tightening torque: 45 Nm. When replacing the blade, the blade bolt should also be replaced. The guarantee does not cover damage to the blade, blade holder or engine...
