Page 1
DEUTSCHD 8211-3488-01
Page 2
DEUTSCH
Page 3
DEUTSCHD
Page 4
4 SVENSKA S STOP B* G G FLAT ADD FULL FULL ADD 12 34 2. 8.7. Honda 6. Briggs & Stratton5. 3. Not in use4. Not in use A 1.

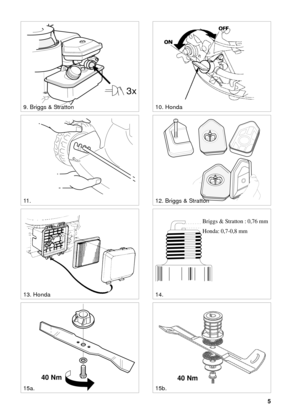

Page 5
5 SVENSKAS 3x 9. Briggs & Stratton10. Honda 11 .12. Briggs & Stratton 13. Honda 0,75 mm 14. Briggs & Stratton : 0,76 mm Honda: 0,7-0,8 mm 15a. 40 Nm 15b. 40 Nm

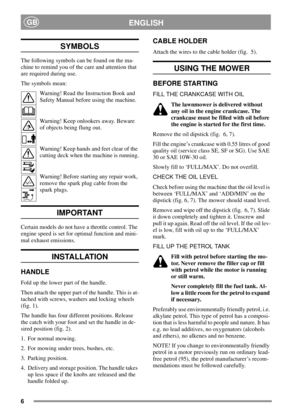

Page 6
6 ENGLISHGB SYMBOLS The following symbols can be found on the ma- chine to remind you of the care and attention that are required during use. The symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep onlookers away. Beware of objects being flung out. Warning! Keep hands and feet clear of the cutting deck when the machine is running. Warning! Before starting any repair work, remove the spark plug cable from the spark plugs. IMPORTANT Certain models do...

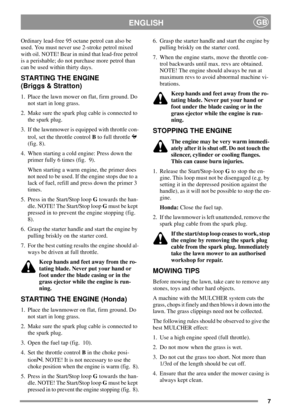

Page 7
7 ENGLISHGB Ordinary lead-free 95 octane petrol can also be used. You must never use 2-stroke petrol mixed with oil. NOTE! Bear in mind that lead-free petrol is a perishable; do not purchase more petrol than canbeusedwithinthirtydays. STARTING THE ENGINE (Briggs & Stratton) 1. Place the lawn mower on flat, firm ground. Do not start in long grass. 2. Make sure the spark plug cable is connected to the spark plug. 3. If the lawnmower is equipped with throttle con- trol, set the throttle controlBto full...

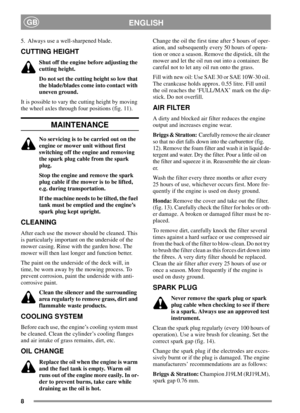

Page 8
8 ENGLISHGB 5. Always use a well-sharpened blade. CUTTING HEIGHT Shut off the engine before adjusting the cutting height. Do not set the cutting height so low that the blade/blades come into contact with uneven ground. It is possible to vary the cutting height by moving the wheel axles through four positions (fig. 11). MAINTENANCE No servicing is to be carried out on the engine or mower unit without first switching off the engine and removing the spark plug cable from the spark plug. Stop the engine and...

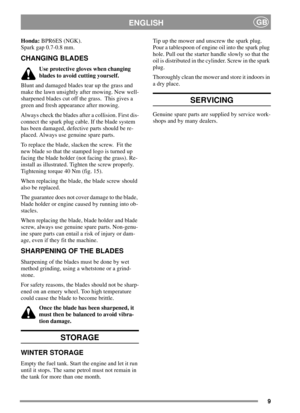

Page 9
9 ENGLISHGB Honda:BPR6ES (NGK). Spark gap 0.7-0.8 mm. CHANGING BLADES Use protective gloves when changing blades to avoid cutting yourself. Blunt and damaged blades tear up the grass and make the lawn unsightly after mowing. New well- sharpened blades cut off the grass. This gives a green and fresh appearance after mowing. Always check the blades after a collision. First dis- connect the spark plug cable. If the blade system has been damaged, defective parts should be re- placed. Always use genuine spare...
