Stiga Lawn Mower Collector 43, 43 S 71503876 0 Operators Manual

Add to Favourites
    Download as PDF

    View the Stiga Lawn Mower Collector 43, 43 S 71503876 0 Operators Manual for free. All the Stiga manuals and user’s guides are available for free view without any registration. You can also download the manual as PDF to your computer.

    Overview Comments

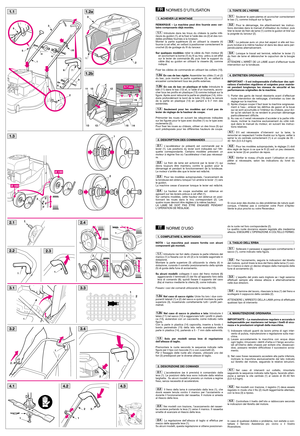

    Page 1 NORMES D’UTILISATION REMARQUE – La machine peut être fournie avec cer- tains composants déjà montés. Introduire dans les trous du châssis la partie infé- rieure du guidon (1), et la fixer à l’aide des vis (2) et des ron- delles profilées fournies à la livraison. Monter la partie supérieure (3) en utilisant la visserie (4) fournie à cet effet, en veillant à positionner correctement le crochet (5) de guidage du fil du lanceur. Sur quelques modèles:relier le câble du frein moteur (6) en accrochant la...

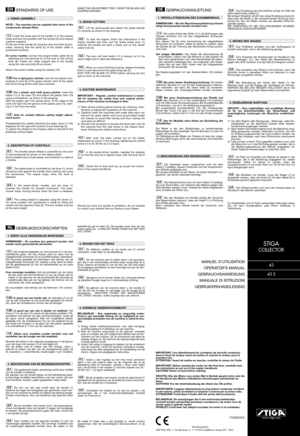

    Page 2 STANDARDS OF USE NOTE – The machine can be supplied with some of the components already fitted. Insert the lower part of the handle (1) in the chassis holes and lock into position with the screws (2) and shaped washers supplied. Fit the top of the handle (3) using the nuts and bolts (4) pro- vided, ensuring that the spiral (5) of the starter cable is positioned correctly. On some models:connect the engine brake cable (6) by attaching the wire terminal (7) to the hole on the control lever (8). Fasten...

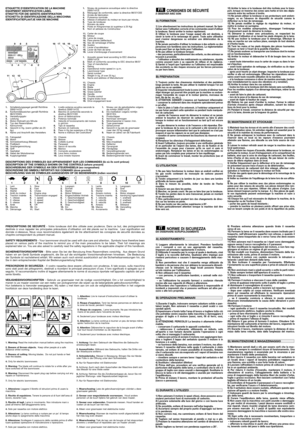

    Page 3 1. Attenzione:Leggere il libretto di istruzioni prima di usare la macchina. 2. Rischio di espulsione.Tenere le persone al di fuori dell’area di lavoro, durante l’uso. 3. Rischio di tagli.Lame in movimento. Non introdurre mani o piedi all’interno dell’alloggiamento lama. 4.Solo per rasaerba con motore elettrico 5. Attenzione:La lama continua a ruotare per un po’ di tempo anche dopo lo spegnimento della macchina 6. Attenzione:Scollegare il cappuccio della candela prima di effet- tuare qualsiasi...

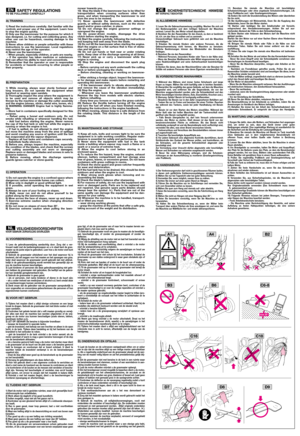

    Page 4 max 20° B2A4A1 C6-8B6B3 C18C16 SAFETY REGULATIONSTO BE FOLLOWED CAREFULLY 1) Read the instructions carefully. Get familiar with the controls and proper use of the equipment. Learn how to stop the engine quickly. 2) Only use the lawnmower for the purpose for which it was designed, i.e. for cutting and collecting grass. Any other use can be hazardous, causing damage to the machine. 3) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the...
    Start reading Stiga Lawn Mower Collector 43, 43 S 71503876 0 Operators Manual
