Stiga Lawn Mower COMBI 45, 45S 71503863 0 Operators Manual

1
2
3
4 DEUTSCH ......................................... 1
FRANÇAIS ........................................ 6
ITALIANO ........................................ 11
ČESKY ............................................ 16
MAGYAR ......................................... 21
POLSKI ........................................... 26
SLOVENSKO .................................. 31
NEDERLANDS ................................ 36
SVENSKA ....................................... 41
SUOMI...

6
8
13
7
9
12
P
R
G
J*
1011
«L»«R»
45 Nm

ENGLISHGBGB
SAFETY REGULATIONS
1) Read the instructions carefully. Get familiar
with the controls and proper use of the equip-
ment. Learn how to stop the engine quickly.
2) Only use the lawnmower for the purpose for
which it was designed, i.e. for cutting and col-
lecting grass. Any other use can be hazardous,
causing damage to the machine.
3) Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.
4) Never use the...

ENGLISHGBGB
tance from the rotating blade. This distance is
the length of the handle.
1) Keep all nuts, bolts and screws tight to be
sure the equipment is in safe working condition.
Regular maintenance is essential for safety and
performance.
2) Never store the equipment with fuel in the
tank inside a building where vapour may reach
a flame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an
enclosed space.
4) To reduce the fire hazard, keep the engine,
exhaust...

ENGLISHGBGB

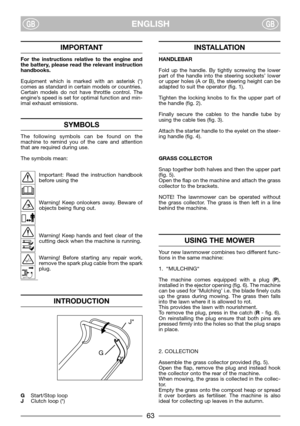

IMPORTANT
For the instructions relative to the engine and
the battery, please read the relevant instruction
handbooks.
Equipment which is marked with an asterisk (*)
comes as standard in certain models or countries.
Certain models do not have throttle control. The
engine’s speed is set for optimal function and min-
imal exhaust emissions.
SYMBOLS
The following symbols can be found on the
machine to remind you of the care and attention
that are required during use.
The symbols mean:
Important:...

ENGLISHGBGB

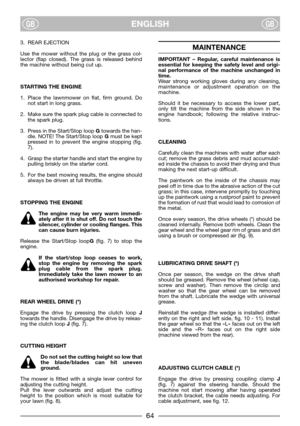

3. REAR EJECTION
Use the mower without the plug or the grass col-
lector (flap closed). The grass is released behind
the machine without being cut up.
STARTING THE ENGINE
1. Place the lawnmower on flat, firm ground. Do
not start in long grass.
2. Make sure the spark plug cable is connected to
the spark plug.
3. Press in the Start/Stop loop Gtowards the han-
dle. NOTE! The Start/Stop loop Gmust be kept
pressed in to prevent the engine stopping (fig.
7).
4. Grasp the starter handle and start...

ENGLISHGBGB

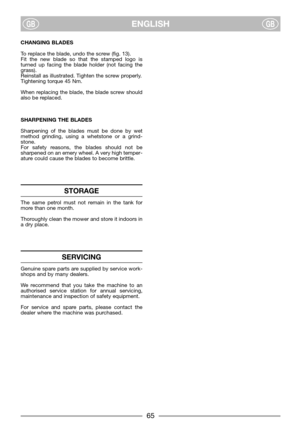

CHANGING BLADES
To replace the blade, undo the screw (fig. 13).
Fit the new blade so that the stamped logo is
turned up facing the blade holder (not facing the
grass).
Reinstall as illustrated. Tighten the screw properly.
Tightening torque 45 Nm.
When replacing the blade, the blade screw should
also be replaced.
SHARPENING THE BLADES
Sharpening of the blades must be done by wet
method grinding, using a whetstone or a grind-
stone.
For safety reasons, the blades should not be
sharpened on an...
