Stiga Lawn Mower DINO 45 EURO, DINO 45 Instructions Manual
Here you can view all the pages of manual Stiga Lawn Mower DINO 45 EURO, DINO 45 Instructions Manual. The Stiga manuals for Lawn Mower are available online for free. You can easily download all the documents as PDF.
Page 1
STIGA DINO 45 EURODINO 45 8211-3389-09
Page 2
SVENSKA S 12 34 7.8. EURO 2. 4. ADD FULL FULL ADD 6. STOP G 3. 5. 1. G
Page 3
SVENSKAS 1 2 3 3x 10.9. 12. 13. 11. 40 Nm 0.7-0.8 mm
Page 4
ENGLISHGB SYMBOLS The following symbols are displayed on the machine in order to remind you about the safety precautions and attention necessary when using the machine. The symbols mean:Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep spectators away. Beware of objects being flung out. Warning! Do not put hands or feet under the cover of the machine when it is running. Warning! Before starting any repair work, remove the spark plug cable from the...

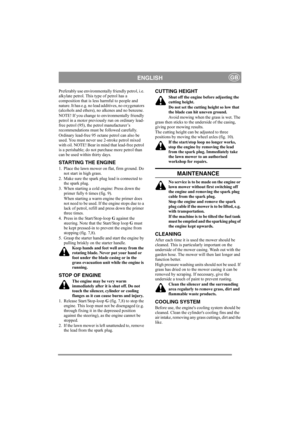

Page 5
ENGLISHGB Preferably use environmentally friendly petrol, i.e. alkylate petrol. This type of petrol has a composition that is less harmful to people and nature. It has e.g. no lead additives, no oxygenators (alcohols and ethers), no alkenes and no benzene. NOTE! If you change to environmentally friendly petrol in a motor previously run on ordinary lead- free petrol (95), the petrol manufacturer’s recommendations must be followed carefully. Ordinary lead-free 95 octane petrol can also be used....

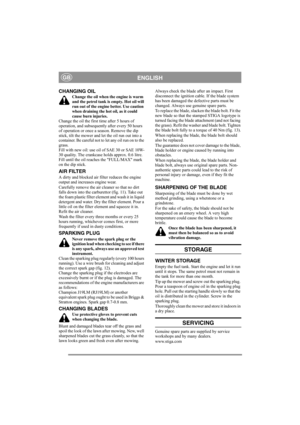

Page 6
ENGLISHGB CHANGING OIL Change the oil when the engine is warm and the petrol tank is empty. Hot oil will run out of the engine better. Use caution when draining the hot oil, as it could cause burn injuries. Change the oil the first time after 5 hours of operation, and subsequently after every 50 hours of operation or once a season. Remove the dip stick, tilt the mower and let the oil run out into a container. Be careful not to let any oil run on to the grass. Fill with new oil: use oil of SAE...

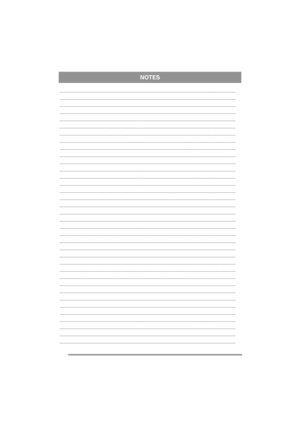

Page 7
NOTES .................................................................................................................................................................... ............................................................................................................................... ..................................... ............................................................................................................................... ........................................

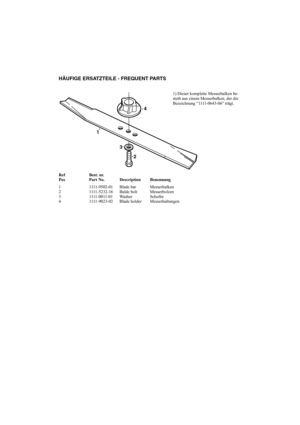

Page 8
SVENSKASHÄUFIGE ERSATZTEILE - FREQUENT PARTS 4 1 32 1) Dieser komplette Messerbalken be- steth aus einem Messerbalken, der die Bezeichnung “1111-0643-06” trägt. Ref Best. nr. Pos Part No. Description Benennung 1 1111-9502-01 Blade bar Messerbalken 2 1111-5232-16 Balde bolt Messerbolzen 3 1111-0011-01 Washer Scheibe 4 1111-9023-02 Blade holder Messerhaltungen
Page 9
MOWING AHEAD GGP Sweden AB · Box 1006 · SE-573 28 TRANÅS www.stiga.com
