Stiga Lawn Mower El 33 Instruction Manual

DEUTSCHD
El 33
8211-0207-08

3
SVENSKAS
2.
12
4
5
3
7
8
97
7
7
1.
1
1
2
2
3 3
4
4
55
6
7

4
SVENSKA S
4.
1
3 2
4
3 = 40 mm
4 = 50 mm2 = 30 mm 1 = 20 mm
3
4
∅ 130 mm
∅ 160 mm
A
BC 12
5.3.
x 2
1
2 2
3
3
44
5

5
SVENSKAS
6.7.
9. 8.
10.

6
SVENSKA S
11 .
INFORMATION OM STRØMFORBRUG
Flere og flere maskiner, som f.eks. plæneklippere, højtryksrensere pumper
og kompostkværne bliver elektriske. Det gør de bl.a. fordi dette som helhed
giver et bedre miljø; ingen udstødning, lavere støjniveau, lettere vedligehol-
delse, ingen startproblemer.
For at disse maskiner skal kunne have samme virkningsgrad som f.eks. ben-
zindrevne, bruger de flere watt end man normalt bruger når man anvender
elektriske husholdningsapparater, således finder man et...

7
ENGLISHGB

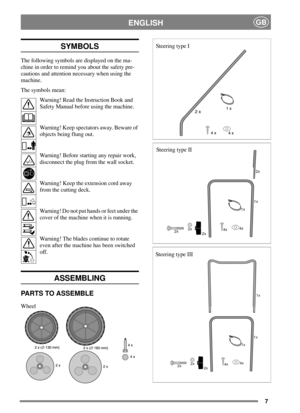

SYMBOLS
The following symbols are displayed on the ma-
chine in order to remind you about the safety pre-
cautions and attention necessary when using the
machine.
The symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep spectators away. Beware of
objects being flung out.
Warning! Before starting any repair work,
disconnect the plug from the wall socket.
Warning! Keep the extension cord away
from the cutting deck.
Warning! Do not put hands...

8
ENGLISHGB
TOOLS FOR ASSEMBLEY
WHEELS/CUTTING HEIGHT (fig. 4)
1. Insert the wheel bolt A in the hub cap B.
2. Snap-on the centre cup C.
3. Fit the wheel in one of the fixing plates four po-
sitions.
4. Tighten securely by hand using the finger-grip
holes in the hub cap.
NOTE! The same cutting height should be set on all
four wheels.
STEERING TYPE I (fig. 1)
1. Insert a steering tube into the bracket on the left-
hand side as illustrated.
2. Slide in the steerings upper section.
3. Turn the entire...

9
ENGLISHGB
resistance.
Starting the motor:
1. Press the button
2. Pull the handle towards the steering.
Stopping the motor:Release the handle.
CUTTING (fig. 9)
Always cut away from the cable.
Empty the grass collector in good time so that the
grass deflector does not get blocked and reduce
grass collection capacity.
To avoid overloading the motor, do not push the
mower too quickly in long grass.
MAINTENANCE
CHANGING BLADES (fig. 10)
Always pull out the plug before carrying out main-
tenance, cleaning or...
