DEUTSCHD Multiclip 46 S 46 SE 8 2 11-0203 -08
Page 2
SVENSKAS 3. 1. 4. F EE 2. ADD FULL FULL ADD 0,15 l. ADD FULL 7. Briggs & Stratton ES 45 6. Briggs & Stratton LS 45 / LS 38 8. Honda 5. Multiclip 46 SE A ADDFULL
Page 3
SVENSKA S STOP STOP N G 9. Tecumseh MAX MIN MAX MIN 10. Multiclip 46 S 11. Multiclip 46 SE 3x 12. Briggs & Stratton ES 45 3x 13. Briggs & Stratton LS 45 / LS 38 3x 14. Tecumseh 15. Honda16. I N G I
Page 4
SVENSKAS 17. 19.20. 21. Briggs & Stratton LS 45 / LS 3822. Briggs & Stratton ES 45 23. Honda 18.SS S
Page 5

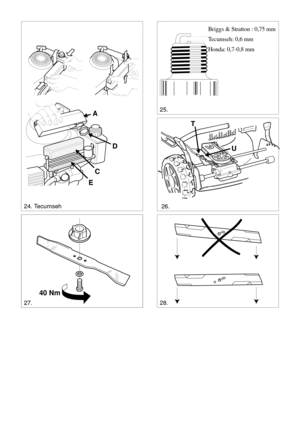

SVENSKA S 27. 40 Nm 0,75 mm 25. Briggs & Stratton : 0,75 mm Tecumseh: 0,6 mm Honda: 0,7-0,8 mm 28. 24. Tecumseh D C A E 27. 40 Nm 26. T U
Page 6
ENGLISHGB SYMBOLS The following symbols are displayed on the ma- chine in order to remind you about the safety pre- cautions and attention necessary when using the machine. The symbols mean: Warning! Read the Instruction Book and Safety Manual before using the machine. Warning! Keep spectators away. Beware of objects being flung out. Warning! Do not put hands or feet under the cover of the machine when it is run- ning. Warning! Before starting any repair work, remove the spark plug cable from the spark...
Page 7
ENGLISHGB FILL UP THE PETROL TANK Fill with petrol before starting the mo- tor. Never remove the filler cap or fill with petrol while the motor is running or still warm. Never fill the fuel tank completely full but allow a little room for the petrol to expand. Always use pure unleaded petrol. You must never use 2-stroke petrol mixed with oil. NOTE that you should always remember that pet- rol is a perishable commodity. Never buy more petrol than what you can use up in 30 days. STARTING THE ENGINE (Briggs...
Page 8
ENGLISHGB STOPPING THE ENGINE The motor may be very warm immedi- ately after it is shut off. Do not touch the silencer, cylinder or cooling flanges as it can cause burns and injury. 1. Release Start/Stop braceGto stop the engine (fig. 10, 11). This brace must not be disengaged (e.g. through fixing it in the depressed position against the steering), as the engine cannot be stopped. Honda:Close the fuel cock. 2. If the lawn mower is left unattended to, remove the lead from the spark plug. Multiclip 46...
Page 9

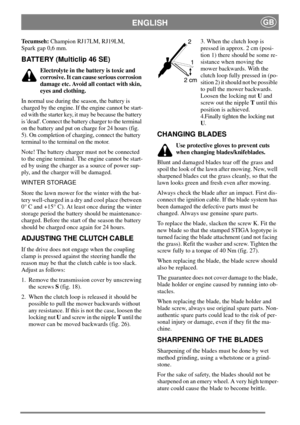

ENGLISHGB The inside of the drive wheels should be cleaned once a season. To clean a wheel, remove the hub- cap, screw, washer, and wheels. Brush or blow the gear and the gear ring on the wheel to clean them from grass and dirt (fig. 19). Remount the wheel. COOLING SYSTEM Before use, the engines cooling system should be cleaned. Clean the cylinders cooling fins and the air intake, removing any grass cuttings, dirt and the like. LUBRICATION Set at the lowest cutting height. Slacken the screws and remove...
Page 10
ENGLISHGB Tecumseh:Champion RJ17LM, RJ19LM, Spark gap 0,6 mm. BATTERY (Multiclip 46 SE) Electrolyte in the battery is toxic and corrosive. It can cause serious corrosion damage etc. Avoid all contact with skin, eyes and clothing. In normal use during the season, the battery is charged by the engine. If the engine cannot be start- ed with the starter key, it may be because the battery is dead. Connect the battery charger to the terminal on the battery and put on charge for 24 hours (fig. 5). On completion...
