Stiga Lawn Mower Multiclip 48, 48E, PRO 48, 51 S, 51 SE, Pro 51 S Instruction Manual

1
2
3
SVENSKA ............................... 1
SUOMI .................................... 7
DANSK ................................. 13
NORSK ................................. 19
DEUTSCH ............................ 25
ENGLISH .............................. 31
FRANÇAIS ............................ 37
NEDERLANDS ...................... 43
ITALIANO .............................. 49
ESPAÑOL ............................. 55
PORTUGUÊS ....................... 61
POLSKI ................................. 67...

H*
K*
STOP
G
STOP
I
6
7
9
11
5
8
10
P
R
M
G
SS
14
16
18
12
15
17
19
13
«L»«R»
T
40 Nm
40 Nm
20
L
K
SH
2 cm
2
1
DE
J*
ÖVRIGT
NORDISK
MILJÖMÄRKNING
MULTICLIP PRO 48
11-8396
MULTICLIP PRO 51 S
11-8796
Denna maskin
uppfyller kraven
enligt Nordisk
Miljömärkning
av gräsklippare
version 3.
* Produktgrupp
C
1: Maskiner avsedda att
användas i yrkesmässigt
bruk. Slagvolym mindre
än 225 cm
3.
För att undvika spill vid
tankning rekommenderar
vi att Stigas bensindunk
används. Den finns hos
auktoriserade Stiga åter-...

ENGLISHGBGB
SAFETY REGULATIONS
1) Read the instructions carefully. Get familiar
with the controls and proper use of the equip-
ment. Learn how to stop the engine quickly.
2) Only use the lawnmower for the purpose for
which it was designed, i.e. for cutting grass. Any
other use can be hazardous, causing damage to
the machine.
3) Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.
4) Never use the lawnmower:
– When...

ENGLISHGBGB
Regular maintenance is essential for safety and
performance.
2) Never store the equipment with fuel in the
tank inside a building where vapour may reach
a flame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an
enclosed space.
4) To reduce the fire hazard, keep the engine,
exhaust silencer, battery compartment and fuel
storage area free of grass, leaves, or excessive
grease. Do not leave containers with grass cut-
tings in rooms.
5) If the fuel tank has...

ENGLISHGBGB

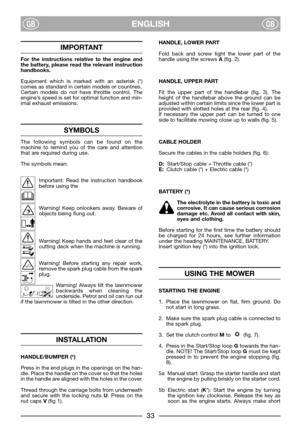

IMPORTANT
For the instructions relative to the engine and
the battery, please read the relevant instruction
handbooks.
Equipment which is marked with an asterisk (*)
comes as standard in certain models or countries.
Certain models do not have throttle control. The
engine’s speed is set for optimal function and min-
imal exhaust emissions.
SYMBOLS
The following symbols can be found on the
machine to remind you of the care and attention
that are required during use.
The symbols mean:
Important:...

ENGLISHGBGB
attempts at starting in order to prevent dis-
charging the battery.
6. For the best mowing results, the engine should
always be driven at full throttle.
STOPPING THE ENGINE
The engine may be very warm immedi-
ately after it is shut off. Do not touch the
silencer, cylinder or cooling flanges. This
can cause burn injuries.
Type I
Release the Start/Stop loop G(fig. 8) to stop the
engine.
Type II
Release the Start/Stop loop G(fig. 7) to stop the
engine.
Disengage the drive. Set the clutch...

ENGLISHGBGB

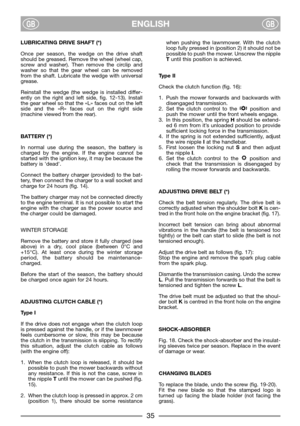

LUBRICATING DRIVE SHAFT (*)
Once per season, the wedge on the drive shaft
should be greased. Remove the wheel (wheel cap,
screw and washer). Then remove the circlip and
washer so that the gear wheel can be removed
from the shaft. Lubricate the wedge with universal
grease.
Reinstall the wedge (the wedge is installed differ-
ently on the right and left side, fig. 12-13). Install
the gear wheel so that the «L» faces out on the left
side and the «R» faces out on the right side
(machine viewed...

ENGLISHGBGB

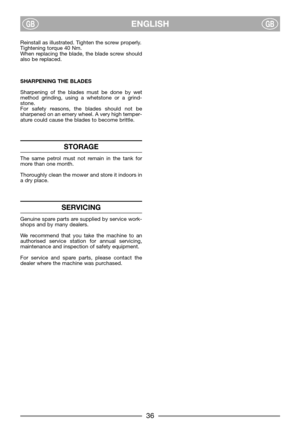

Reinstall as illustrated. Tighten the screw properly.
Tightening torque 40 Nm.
When replacing the blade, the blade screw should
also be replaced.
SHARPENING THE BLADES
Sharpening of the blades must be done by wet
method grinding, using a whetstone or a grind-
stone.
For safety reasons, the blades should not be
sharpened on an emery wheel. A very high temper-
ature could cause the blades to become brittle.
STORAGE
The same petrol must not remain in the tank for
more than one month.
Thoroughly...
