Stiga Lawn Mower Multiclip 53 S Euro, 53 S Plus, 53 S Rental, PRO 53 S Svan, PRO 53 S Ethanol Instruction Manual

1
2
3
SVENSKA ............................... 1
SUOMI .................................... 7
DANSK ................................. 13
NORSK ................................. 19
DEUTSCH ............................ 25
ENGLISH .............................. 31
FRANÇAIS ............................ 37
NEDERLANDS ...................... 43
ITALIANO .............................. 49
ESPAÑOL ............................. 55
PORTUGUÊS ....................... 61
POLSKI ................................. 67...

H*
K*
STOP
G
I
6
7
9
11
5
8
10
P
R
M
G
SS
14
16
18
12
15
17
19
13
«L»«R»
T
40 Nm
40 Nm
20
L
Z
SW
2 cm
2
1
DE
J*
STOP
K*
H*
Manufactured by:
GGP ITALY SPA  •  Via del lavoro, 6  •  I-31033 Castelfranco Veneto (TV) - ITALY

ENGLISHGBGB
SAFETY REGULATIONS
1) Read the instructions carefully. Get familiar
with the controls and proper use of the equip-
ment. Learn how to stop the engine quickly.
2) Only use the lawnmower for the purpose for
which it was designed, i.e. for cutting grass. Any
other use can be hazardous, causing damage to
the machine.
3) Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.
4) Never use the lawnmower:
– When...

ENGLISHGBGB
Regular maintenance is essential for safety and
performance.
2) Never store the equipment with fuel in the
tank inside a building where vapour may reach
a flame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an
enclosed space.
4) To reduce the fire hazard, keep the engine,
exhaust silencer, battery compartment and fuel
storage area free of grass, leaves, or excessive
grease. Do not leave containers with grass cut-
tings in rooms.
5) If the fuel tank has...

ENGLISHGBGB

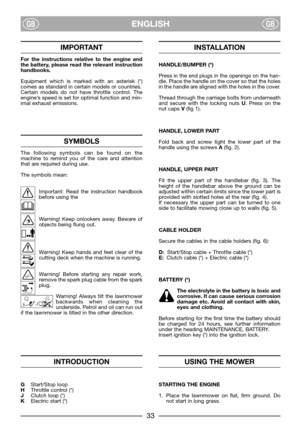

IMPORTANT
For the instructions relative to the engine and
the battery, please read the relevant instruction
handbooks.
Equipment which is marked with an asterisk (*)
comes as standard in certain models or countries.
Certain models do not have throttle control. The
engine’s speed is set for optimal function and min-
imal exhaust emissions.
SYMBOLS
The following symbols can be found on the
machine to remind you of the care and attention
that are required during use.
The symbols mean:
Important:...

ENGLISHGBGB

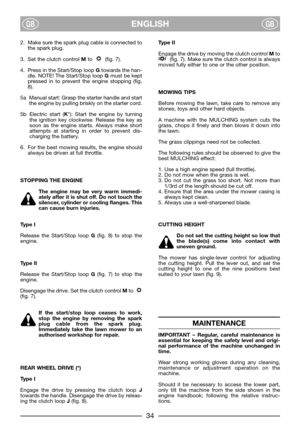

2. Make sure the spark plug cable is connected to
the spark plug.
3. Set the clutch control Mto   (fig. 7).
4. Press in the Start/Stop loop Gtowards the han-
dle. NOTE! The Start/Stop loop Gmust be kept
pressed in to prevent the engine stopping (fig.
8).
5a Manual start: Grasp the starter handle and start
the engine by pulling briskly on the starter cord.
5b Electric start (K*): Start the engine by turning
the ignition key clockwise. Release the key as
soon as the engine starts. Always make...

ENGLISHGBGB

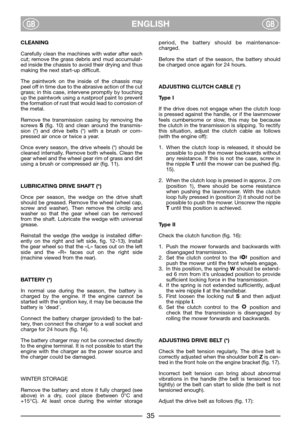

CLEANING
Carefully clean the machines with water after each
cut; remove the grass debris and mud accumulat-
ed inside the chassis to avoid their drying and thus
making the next start-up difficult.
The paintwork on the inside of the chassis may
peel off in time due to the abrasive action of the cut
grass; in this case, intervene promptly by touching
up the paintwork using a rustproof paint to prevent
the formation of rust that would lead to corrosion of
the metal.
Remove the transmission...

ENGLISHGBGB

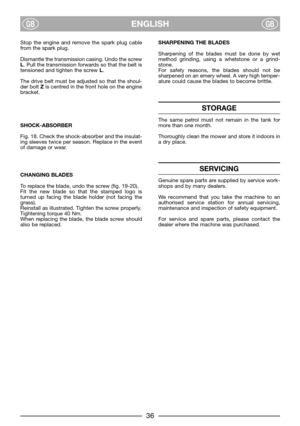

Stop the engine and remove the spark plug cable
from the spark plug.
Dismantle the transmission casing. Undo the screw
L. Pull the transmission forwards so that the belt is
tensioned and tighten the screw L.
The drive belt must be adjusted so that the shoul-
der bolt Zis centred in the front hole on the engine
bracket.
SHOCK-ABSORBER
Fig. 18. Check the shock-absorber and the insulat-
ing sleeves twice per season. Replace in the event
of damage or wear.
CHANGING BLADES
To replace the blade,...
