Stiga Lawn Mower PARK 4WD 92 M, 107 M, 107 M HD, 121 M, 110 Combi Pro, 125 Combi Pro Instructions Manual

STIGA PARK
4WD
92 M
107 M
107 M HD
121 M
110 Combi Pro
125 Combi Pro
8211-0543-04
BRUKSANVISNING
KÄYTTÖOHJEET
BRUGSANVISNING
BRUKSANVISNING
GEBRAUCHSANWEISUNG
INSTRUCTIONS FOR USE
MODE D’EMPLOI
GEBRUIKSAANWIJZING
ISTRUZIONI PER L’USO
INSTRUCCIONES DE USO
INSTRUÇõES DE UTILIZAÇÃO
INSTRUKCJA OBS£UGI
»HC“P”K÷»fl œOÀ‹«Œ¬¿“EÀfl
NÁVOD K POU®ITÍ
HASZNÁLATI UTASÍTÁS
NAVODILA ZA UPORABOSV .... 6
FI ... 11
DA .. 17
NO . 22
DE ... 27
EN... 33
FR.... 39
NL... 45
IT..... 51
ES .... 57
PT ... 63
PL .... 69
RU... 75
CS...

2
125 Combi Pro
110/125 Combi Pro
121 M
107 M HD
ABCB
E
F Torx T30
To r x  T 3 0
110/125 Combi Pro
G
H
I
110/125 Combi Pro
1
2
110/125 Combi Pro
121 M 107 M HD
110/125 Combi Pro
10 mm 10 mm
3
5
7 121 M1
4
6
8 121 M2

3
92/107 M
ABDB
10 mm13 mm
13 mm
J
K
L
110/125 Combi Pro
M
11
13 107 M HD
159 92/107
12 92/107 M
14
1610 92/107

4
92/107 M
107 M HD
121 M
1/3
92/107 M
121 M
5 mm
110/125 Combi Pro
107 M HD
19
21
23 17
20
22
24  18

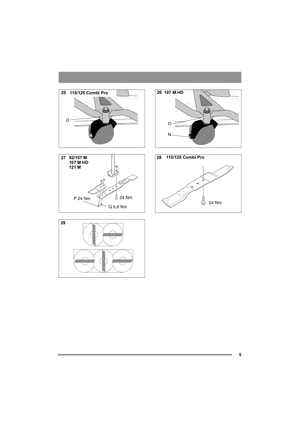

5
O
110/125 Combi Pro
Q 9,8 Nm P 24 Nm24 Nm
92/107 M
107 M HD
121 M
O
N
107 M HD
24 Nm 110/125 Combi Pro
27
29 25
28 26

33

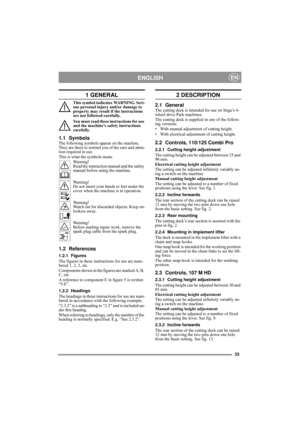

ENGLISHEN
1 GENERAL
This symbol indicates WARNING. Seri-
ous personal injury and/or damage to
property may result if the instructions
are not followed carefully.
You must read these instructions for use
and the machine’s safety instructions
carefully.
1.1 SymbolsThe following symbols appear on the machine.
They are there to remind you of the care and atten-
tion required in use.
This is what the symbols mean:
Warning!
Read the instruction manual and the safety
manual before using the machine....

34
ENGLISHEN

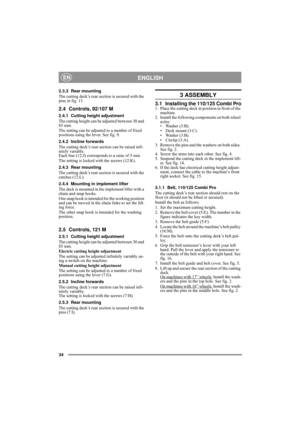

2.3.3 Rear mounting
The cutting deck’s rear section is secured with the
pins in fig. 13.
2.4 Controls, 92/107 M
2.4.1 Cutting height adjustment
The cutting height can be adjusted between 30 and
85 mm.
The setting can be adjusted to a number of fixed
positions using the lever. See fig. 9.
2.4.2 Incline forwards
The cutting deck’s rear section can be raised infi-
nitely variably.
Each line (12:J) corresponds to a raise of 5 mm.
The setting is locked with the screws (12:K).
2.4.3 Rear...

35
ENGLISHEN

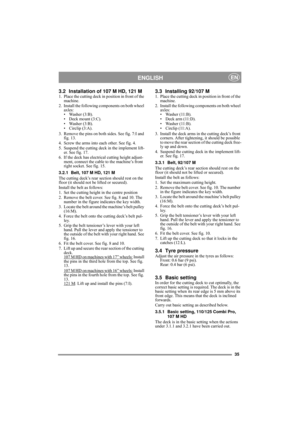

3.2 Installation of 107 M HD, 121 M1. Place the cutting deck in position in front of the
machine.
2. Install the following components on both wheel
axles:
• Washer (3:B).
• Deck mount (3:C).
• Washer (3:B).
• Circlip (3:A).
3. Remove the pins on both sides. See fig. 7:I and
fig. 13.
4. Screw the arms into each other. See fig. 4.
5. Suspend the cutting deck in the implement lift-
er. See fig. 17.
6. If the deck has electrical cutting height adjust-
ment, connect the cable to the machine’s...

36
ENGLISHEN

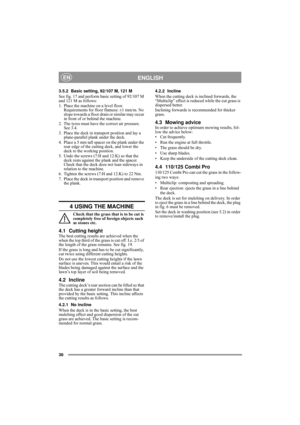

3.5.2 Basic setting, 92/107 M, 121 M
See fig. 17 and perform basic setting of 92/107 M
and 121 M as follows:
1.  Place the machine on a level floor.
Requirements for floor flatness: ±1 mm/m. No
slope towards a floor drain or similar may occur
in front of or behind the machine.
2. The tyres must have the correct air pressure.
See 3.4.
3. Place the deck in transport position and lay a
plane-parallel plank under the deck.
4. Place a 5 mm tall spacer on the plank under the
rear edge of...

37
ENGLISHEN

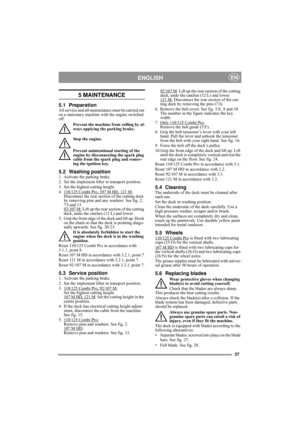

5 MAINTENANCE
5.1 PreparationAll service and all maintenance must be carried out
on a stationary machine with the engine switched
off.
Prevent the machine from rolling by al-
ways applying the parking brake.
Stop the engine.
Prevent unintentional starting of the
engine by disconnecting the spark plug
cable from the spark plug and remov-
ing the ignition key.
5.2 Washing position1. Activate the parking brake.
2. Set the implement lifter in transport position.
3. Set the highest cutting...
