Stiga Lawn Mower Turbo 55 Combi, 48 Combi, 43 Combi Instruction Manual

1
3
6
2
4
5
SVENSKA ............................................................ 1
SUOMI ................................................................. 7
DANSK .............................................................. 13
NORSK .............................................................. 19
DEUTSCH ......................................................... 25
ENGLISH ........................................................... 31
FRANÇAIS ............................................................

8a
9
11
13
7
8b
10
12
P
R
P
G
J*
H*K*
X
Y
30 mm
80 mm
S
S
S
16
18
20
14
17
19
21
15
«L»«R»
T
2 cm
2
1
40 Nm
40 Nm
22

ENGLISHGBGB
SAFETY REGULATIONS
1) Read the instructions carefully. Get familiar
with the controls and proper use of the equip-
ment. Learn how to stop the engine quickly.
2) Only use the lawnmower for the purpose for
which it was designed, i.e. for cutting and col-
lecting grass. Any other use can be hazardous,
causing damage to the machine.
3) Never allow children or people unfamiliar with
these instructions to use the lawnmower. Local
regulations may restrict the age of the operator.
4) Never use the...

ENGLISHGBGB
tance from the rotating blade. This distance is
the length of the handle.
1) Keep all nuts, bolts and screws tight to be
sure the equipment is in safe working condition.
Regular maintenance is essential for safety and
performance.
2) Never store the equipment with fuel in the
tank inside a building where vapour may reach
a flame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an
enclosed space.
4) To reduce the fire hazard, keep the engine,
exhaust...

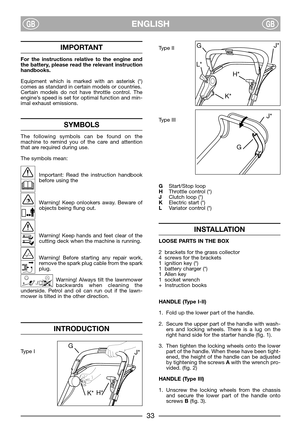

ENGLISHGBGB
IMPORTANT
For the instructions relative to the engine and
the battery, please read the relevant instruction
handbooks.
Equipment which is marked with an asterisk (*)
comes as standard in certain models or countries.
Certain models do not have throttle control. The
engine’s speed is set for optimal function and min-
imal exhaust emissions.
SYMBOLS
The following symbols can be found on the
machine to remind you of the care and attention
that are required during use.
The symbols mean:
Important:...

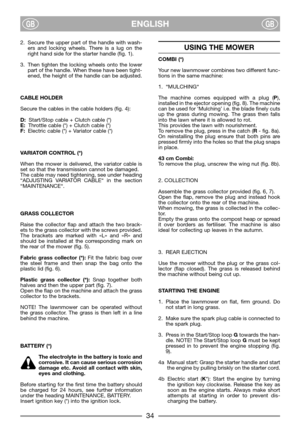

ENGLISHGBGB
2. Secure the upper part of the handle with wash-
ers and locking wheels. There is a lug on the
right hand side for the starter handle (fig. 1).
3. Then tighten the locking wheels onto the lower
part of the handle. When these have been tight-
ened, the height of the handle can be adjusted.
CABLE HOLDER
Secure the cables in the cable holders (fig. 4):
D:Start/Stop cable + Clutch cable (*)
E:Throttle cable (*) + Clutch cable (*)
F:Electric cable (*) + Variator cable (*)
VARIATOR CONTROL (*)...

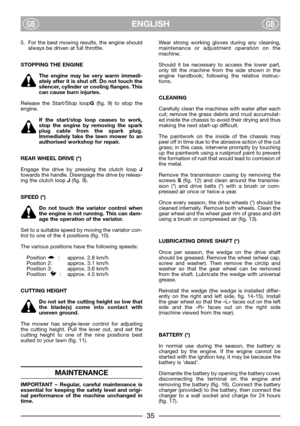

ENGLISHGBGB
5. For the best mowing results, the engine should
always be driven at full throttle.
STOPPING THE ENGINE
The engine may be very warm immedi-
ately after it is shut off. Do not touch the
silencer, cylinder or cooling flanges. This
can cause burn injuries.
Release the Start/Stop loopG(fig. 9) to stop the
engine.
If the start/stop loop ceases to work,
stop the engine by removing the spark
plug cable from the spark plug.
Immediately take the lawn mower to an
authorised workshop for repair.
REAR...

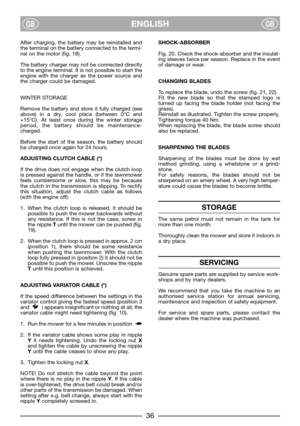

ENGLISHGBGB
After charging, the battery may be reinstalled and
the terminal on the battery connected to the termi-
nal on the motor (fig. 18).
The battery charger may not be connected directly
to the engine terminal. It is not possible to start the
engine with the charger as the power source and
the charger could be damaged.
WINTER STORAGE
Remove the battery and store it fully charged (see
above) in a dry, cool place (between 0°C and
+15°C). At least once during the winter storage
period, the battery...
