Stiga Lawn Mower Turbo Instruction Manual

DEUTSCHD
Tu r b o
8
2 11-02 08-08

SVENSKAS
2.
3.B
FD
E
4.
1.
6.7.
5.

SVENSKA S
STOP
G
I*
B
3x
12. Briggs & Stratton ES 45
ADD
FULL
FULL
ADD
8. Briggs & Stratton LS 45
0,15 l.
ADD
FULL
9. Briggs & Stratton ES 45, XTE 50
10. Honda GCV
3x
13. Briggs & Stratton XTE 50
11. Briggs & Stratton LS 45
14. Honda GCV15. FULL/MAX
ADD/MIN

SVENSKAS
17. YX
19. Vänster / Left
22. Briggs & Stratton ES 45, XTE 5021. Briggs & Stratton LS 45
18.
23. Honda GCV24.
20. Höger / Right
0,75 mm
Briggs & Stratton : 0,76 mm
Honda: 0,7-0,8 mm
16.

SVENSKA S
T
U
S
S

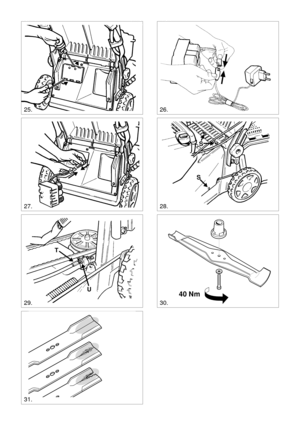

26.
29.
28.
31.
30.
25.
27.
40 Nm

ENGLISHGB

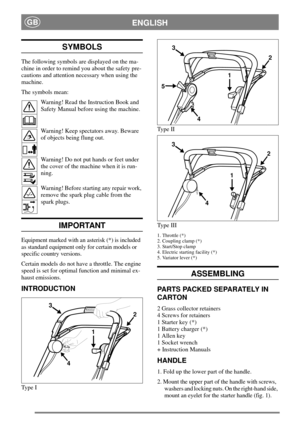

SYMBOLS
The following symbols are displayed on the ma-
chine in order to remind you about the safety pre-
cautions and attention necessary when using the
machine.
The symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep spectators away. Beware
of objects being flung out.
Warning! Do not put hands or feet under
the cover of the machine when it is run-
ning.
Warning! Before starting any repair work,
remove the spark plug cable from the
spark...

ENGLISHGB
3. Tighten the locking nuts to the lower part of the
handle. When these are tightened, the height of
the handle can be adjusted by tightening the
screwsBwith the enclosed wrench (fig. 2).
ENGINE BRAKE CABLE
Fit the engine brake cable to the engine brake,
(fig. 3). Note the cable should be fitted in the direc-
tion of the steering.
CABLE BEARER
Attach the cables to the cable bearers (fig. 4) as fol-
lows:
D: Start/Stop cable + Clutch cable (*)
E: Throttle cable(*) + Clutch cable (*)
F: Electric...

ENGLISHGB
Note that you should always remember that petrol
is a perishable commodity. Never buy more petrol
than you can use up 30 days.
STARTING THE ENGINE
(Briggs & Stratton)
1. Place the lawn mower on flat, firm ground. Do
not start in high grass.
2. Make sure that the spark plug lead is connected
to the spark plug.
3. If the lawn mower is equipped with throttle con-
trol, set the throttle controlBto the full throttle
position (fig. 15).
4. When starting a cold engine, press in the primer
fully three...

ENGLISHGB
SPEED (*)
Do not touch the variator control when
the motor is not operational. This can
have an adverse effect on the variators
performance.
Set a suitable speed by moving the variator lever
into one of the 4 positions (fig. 16).
The different positions have the following speeds:
Position : approx. 2.8 km/h
Position 2: approx. 3.1km/h
Position 3: approx. 3.6 km/h
Position : approx. 4.5 km/h
CUTTING HEIGHT
Shut off the motor before adjusting the
cutting height.
Do not set the cutting height so...

ENGLISHGB
Briggs & Stratton LS 45 (fig. 21):Carefully re-
move the air cleaner so that no dirt falls down into
the carburettor. Take out the foam-plastic filter and
wash it in liquid detergent and water. Dry the filter.
Pour a little oil on the filter and squeeze it in. Refit
the air cleaner.
Clean the filter every three months or after every
25 hours of use, whichever occurs first. More often
if the lawn mower is used on dusty ground.
Briggs & Stratton ES 45, XTE 50 (fig. 22):
Loosen the screw and fold...
