Stiga Lawn Tractor 8211 0005 80 4wd Pro25 Pro20 Pro16 Pro Svan Operators Manual
Stiga Lawn Tractor 8211 0005 80 4wd Pro25 Pro20 Pro16 Pro Svan Operators Manual
Here you can view all the pages of manual Stiga Lawn Tractor 8211 0005 80 4wd Pro25 Pro20 Pro16 Pro Svan Operators Manual. The Stiga manuals for Lawn Mower are available online for free. You can easily download all the documents as PDF.
Page 1
STIGA PARK 4WD PRO 25 PRO 20 PRO 16 PRO Svan 8211-0005-80 BRUKSANVISNING KÄYTTÖOHJEET BRUGSANVISNING BRUKSANVISNING GEBRAUCHSANWEISUNG INSTRUCTIONS FOR USE MODE D’EMPLOI GEBRUIKSAANWIJZINGSV .... 8 FI ... 19 DA .. 30 NO . 41 DE ... 52 EN... 64 FR.... 75 NL... 87
Page 2
2 S T A B CF D E Pro20 Pro25 GHIJK L N O MPro Svan P Q Pro16 GI K HJ N R 1 3 52 4 6
Page 3
3 V U Pro16 Pro20 W WPro Svan Max Pro25 W X Pro25 7 9 118 10 12
Page 4

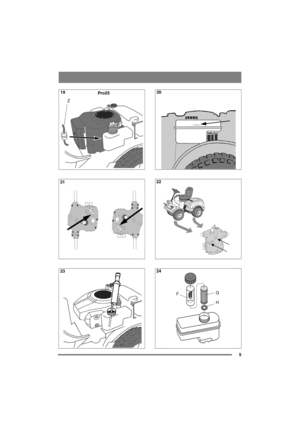

4 10 Ampere Pro16 Pro20 Y Y Z Pro Svan 0 1 Pro25 B A Y Z Pro16 Pro20 13 15 1714 16 18
Page 5

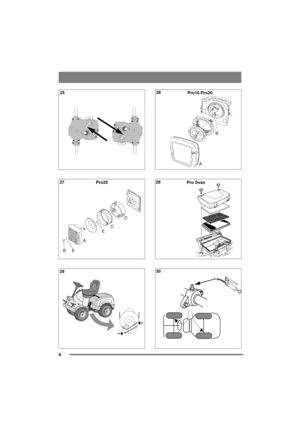

5 ZPro25 FG H 19 21 2320 22 24
Page 6

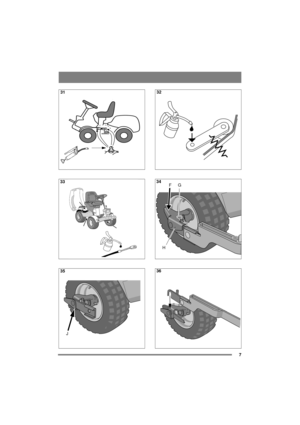

6 AECD B E Pro25 AB Pro16 Pro20 Pro Svan 25 27 2926 28 30
Page 7
7 J FG H 31 33 3532 34 36
Page 8

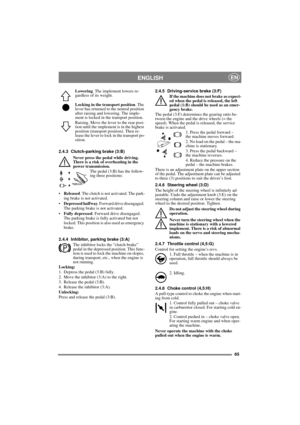

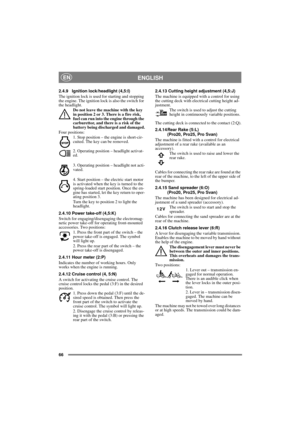

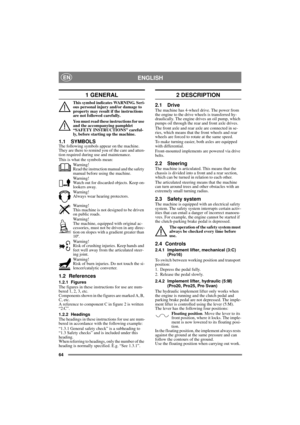

64 ENGLISHEN 1 GENERAL This symbol indicates WARNING. Seri- ous personal injury and/or damage to property may result if the instructions are not followed carefully. You must read these instructions for use and the accompanying pamphlet “SAFETY INSTRUCTIONS” careful- ly, before starting up the machine. 1.1 SYMBOLSThe following symbols appear on the machine. They are there to remind you of the care and atten- tion required during use and maintenance. This is what the symbols mean: Warning! Read the...
Page 9
65 ENGLISHEN Lowering. The implement lowers re- gardless of its weight. Locking in the transport position. The lever has returned to the neutral position after raising and lowering. The imple- ment is locked in the transport position. Raising. Move the lever to the rear posi- tion until the implement is in the highest position (transport position). Then re- lease the lever to lock in the transport po- sition. 2.4.3 Clutch-parking brake (3:B) Never press the pedal while driving. There is a risk of...
Page 10
66 ENGLISHEN 2.4.9 Ignition lock/headlight (4,5:I) The ignition lock is used for starting and stopping the engine. The ignition lock is also the switch for the headlight. Do not leave the machine with the key in position 2 or 3. There is a fire risk, fuel can run into the engine through the carburettor, and there is a risk of the battery being discharged and damaged. Four positions: 1. Stop position – the engine is short-cir- cuited. The key can be removed. 2. Operating position – headlight...
