Stiga Lawn Tractor 8211 0210 07 Villa President Senator 2000 Classic Operators Manual

8211-0210-07
STIGA VILLA
PRESIDENT
SENATOR
2000
CLASSIC

Ty p 1
Ty p 1
Ty p 2
Ty p 2

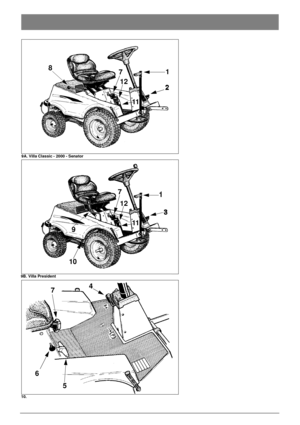

1.5. Villa Senator - President
6. 2.
3.
7.
4.
8.

J
I
12. Villa President11 .
15.
16.
13.17.
14.18.

19A. Villa Classic - 2000 - Senator21A. Villa Classic - 2000 - Senator
19B. Villa President21B. Villa President
20A. Villa Classic - 2000 - Senator 22.
20B. Villa President23.

24. Villa President
25. Villa President
26. Villa Classic - 2000 - Senator
27. Villa Senator - President

8
1
2
7
12
112
1
1097
12
11
3
1
3
64
7
5
9A. Villa Classic - 2000 - Senator
9B. Villa President
10.

ENGLISHGB
GENERAL
This symbol indicates WARNING. Per-
sonal injury and/or damage to property
mayresultiftheinstructionsarenotfol-
lowed carefully.
SYMBOLS
The following symbols are displayed on the ma-
chine in order to remind you about the safety pre-
cautions and attention necessary when using the
machine.
The symbols mean:
Warning!
Read the instruction book and safety man-
ual before using the machine.
Warning!
Beware of objects being flung out. Keep
spectators away.
Warning!
Always use hearing...

ENGLISHGB
Lift off the engine casing diagonally upwards/ back-
wards.
Before use - fit the black engine cover onto the en-
gine casing.
Do not use the machine without first fit-
tingtheenginecasing,otherwisethereis
a risk of burn injuries or crushing acci-
dents.
BATTERY
The battery is dry-charged, meaning that it must be
filled with accumulator acid before use.
Filling of accumulator acid should be
done in a well lit place where there is a
plentiful supply of rinsing water. The
acid is corrosive. Use...

ENGLISHGB
4. PARKING BRAKE
Lever for operating the mechanical parking brake.
Depress the freewheel clutch pedal fully.
Move the parking brake to the right and
then release the pedal.
The parking brake is released by pressing the free-
wheel clutch pedal lightly. The spring-loaded
brake lever then moves automatically to the side.
5. POWER TAKE - OFF (IN)
A lever for engaging the power take-off for driving
front-mounted accessories. There are two posi-
tions:
1. Lever in lower position - power take-off...

ENGLISHGB
hand without using the engine.The machine must
not be towed behind a vehicle.
1. Lever back - transmission
engaged for normal use.
2. Lever forward - transmission
disengaged. The machine can
be moved by hand.
When the disengagement lever is in the
forward position, the drive lever brak-
ing function is deactivated. The ma-
chine has no brakes.
This must be taken into account if the machine is
to be rolled by hand down from, for example, a
trailerorramp.
11. THROTTLE/CHOKE CONTROL
A control for...
