Stiga MULTICLIP 46 S 46 SE 46 S EURO Instruction Manual

STIGA
MULTICLIP
46 S
46 SE
46 S EURO
8211-0203-11

2
SVENSKA S
12
34
F
EE
STOP
N
G
I
I
EURO
G
ADDFULL
12
34
3.4. Multiclip 46 SE
2.
ADD
FULL
FULL
ADD
0,15 l.
ADD
FULL
7. Honda
6. Briggs & Stratton ES 45
8. Multiclip 46 S
5. Briggs & Stratton LS 45
1.

3
SVENSKAS
3x
STOP
N
G
9. Multiclip 46 SE10. Briggs & Stratton LS 45
11. Briggs & Stratton ES 45
3x
12. Honda
13.14.
15.16.
I
SS
S
FRONTREAR

4
SVENSKA S
17. Briggs & Stratton LS 45
19. Honda20.
21.22.
18. Briggs & Stratton ES 45
0,75 mm
Briggs & Stratton : 0,75 mm
Honda: 0,7-0,8 mm
40 Nm

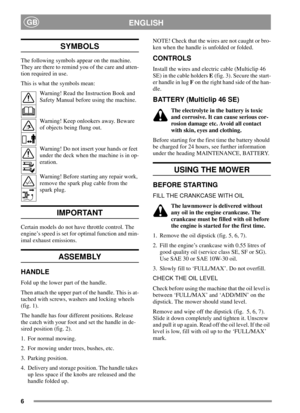

6
ENGLISHGB
SYMBOLS
The following symbols appear on the machine.
They are there to remind you of the care and atten-
tion required in use.
This is what the symbols mean:
Warning! Read the Instruction Book and
Safety Manual before using the machine.
Warning! Keep onlookers away. Beware
of objects being flung out.
Warning! Do not insert your hands or feet
under the deck when the machine is in op-
eration.
Warning! Before starting any repair work,
remove the spark plug cable from the
spark plug.
IMPORTANT...

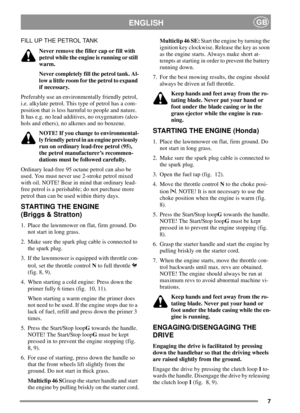

7
ENGLISHGB
FILL UP THE PETROL TANK
Never remove the filler cap or fill with
petrol while the engine is running or still
warm.
Never completely fill the petrol tank. Al-
low a little room for the petrol to expand
if necessary.
Preferably use an environmentally friendly petrol,
i.e. alkylate petrol. This type of petrol has a com-
position that is less harmful to people and nature.
It has e.g. no lead additives, no oxygenators (alco-
hols and ethers), no alkenes and no benzene.
NOTE! If you change to...

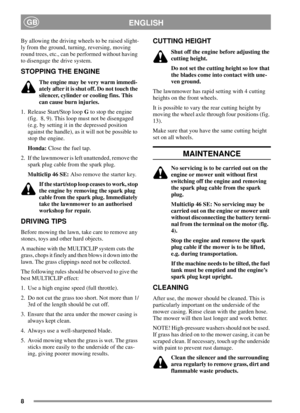

8
ENGLISHGB
By allowing the driving wheels to be raised slight-
ly from the ground, turning, reversing, moving
round trees, etc., can be performed without having
to disengage the drive system.
STOPPING THE ENGINE
The engine may be very warm immedi-
ately after it is shut off. Do not touch the
silencer, cylinder or cooling fins. This
can cause burn injuries.
1. Release Start/Stop loopGto stop the engine
(fig. 8, 9). This loop must not be disengaged
(e.g. by setting it in the depressed position
against the...

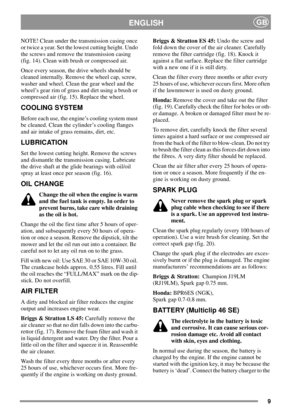

9
ENGLISHGB
NOTE! Clean under the transmission casing once
or twice a year. Set the lowest cutting height. Undo
the screws and remove the transmission casing
(fig. 14). Clean with brush or compressed air.
Once every season, the drive wheels should be
cleaned internally. Remove the wheel cap, screw,
washer and wheel. Clean the gear wheel and the
wheel’s gear rim of grass and dirt using a brush or
compressed air (fig. 15). Replace the wheel.
COOLING SYSTEM
Before each use, the engine’s cooling system must...

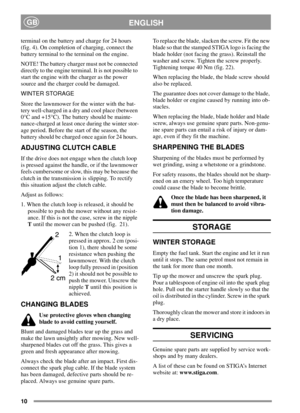

10
ENGLISHGB
terminal on the battery and charge for 24 hours
(fig. 4). On completion of charging, connect the
battery terminal to the terminal on the engine.
NOTE! The battery charger must not be connected
directly to the engine terminal. It is not possible to
start the engine with the charger as the power
source and the charger could be damaged.
WINTER STORAGE
Store the lawnmower for the winter with the bat-
tery well-charged in a dry and cool place (between
0°C and +15°C). The battery should be...
