Tascam Interface Format Converter IF-TAD Owners Manual


 IF-TAD Interface
TASCAM IF-TAD Ð
11
WARNING
Note that you should always use genuine TASCAM
cables, or cables which have been approved for use
with TDIF-1 interfaces by TASCAM.
Although these cables appear similar to certain types
of computer cables and use similar connectors, the
cables themselves are very different, and the different
electrical characteristics of the cables can cause dam-
age to the equipment connected with the wrong
cables.
If the use of cables other than TASCAM cables...

 IF-TAD Interface
12 Ð TASCAM IF-TAD
6adat indicator
This indicator will light orange when a valid adat signal is
received at the IN connector.
If the indicator is not lit, the connection may not be made cor-
rectly, or the adat device may be turned off.
If the indicator is ßashing, it means that both units (the TDIF-1
and the adat device) have been selected as the clock master, or
both have been selected as the clock slave. Make sure that one unit
is selected as the word clock master, and the other...

 IF-TAD Interface
TASCAM IF-TAD Ð 13
2 Operation
We suggest (though it is not absolutely necessary) that all equip-
ment is turned off when making connections to and from the
IF-TAD.
WARNING
Since the word clock source will probably be changed
for one of the devices, causing an audible ÒglitchÓ, you
should turn down the levels of all monitoring equip-
ment, to avoid damage to speaker systems, etc.
2.1 Word clock selection
As mentioned earlier, one, and only one, of the devices connected
to the IF-TAD...

 IF-TAD Interface
14 Ð TASCAM IF-TAD
¥ On the TASCAM DA-98 and DA-88 DTRS recorders, the
CLOCK key is used to select between the different clock
sources available. If this is set to INT, the word clock is be
internally derived, or if a word clock is available at the BNC
WORD IN connector, the word clock is taken from there.
¥ On the TASCAM DA-38 DTRS recorder, the WORD
SYNC IN key is used to select between internal clocking
and an external word clock received at the WORD IN con-
nector.
¥ To set...

 IF-TAD Interface
TASCAM IF-TAD Ð 15
2.3 Notes on word length
Some models of ADAT recorder record and play back digital data
at 20-bit resolution.
¥ On the TASCAM DA-38 and DA-98 recorders, if a 16-bit
input word length is selected, 20-bit data will be truncated to
the 16 bits recorded on the DTRS recorder. If 20-bit or 24-bit
is selected as the input word length, the 20-bit data will be
rounded to 16 bits, using the dither facilities built into the
DTRS recorder.
¥ On DA-88 DTRS recorders, the...

 IF-TAD Interface
16 Ð TASCAM IF-TAD
3 Examples
The following provide examples of simple connections which use
the IF-TAD to convert between digital audio formats.
3.1 DTRS and ADAT recorders
This simple example allows data transfer between a DTRS
recorder and an ADAT multitrack recorder:
Note that here the ADAT recorder acts as the word clock master,
and the DTRS recorder takes its clock reference from the IF-TAD
through the IF-TADÕs WORD SYNC OUT connector.
3.2 TASCAM digital mixer and ADAT LX20...

 IF-TAD Interface
TASCAM IF-TAD Ð 17
through the optical interface. No dedicated word clock connec-
tions are required in this setup.
However, as described earlier, the ADAT LX20 may sometimes
experience problems at Þrst with the word clock synchronization,
but using the PITCH UP and PITCH DOWN keys to change the
pitch away from standard, and then re-set to standard pitch will
usually re-lock the word synchronization (as described in 2.2,
Problems which may occur).

 IF-TAD Interface
18 Ð TASCAM IF-TAD
4 SpeciÞcations
TDIF-1 interface Bi-directional 8-channel, conforms
to TDIF-1  speciÞcations
TDIF indicator Lights orange when valid TDIF data
received
adat  IN Optical, 8-channel input conforms to
adat speciÞcations
adat OUT Optical, 8-channel output conforms
to adat speciÞcations
ADAT indicator Lights orange when valid data
received at the adat IN
WORD SYNC OUT 75
W BNC connector
Power input and indicator For use with PS-P414 only
Dimensions (w x h x d)  191 x...

 IF-TAD Interface
TASCAM IF-TAD Ð 19

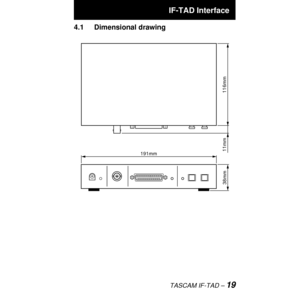

4.1 Dimensional drawing
191mm
116mm
38mm11mm
