Vivitek Qumi Q6 User Manual

15

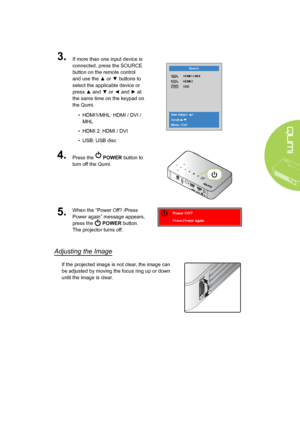

3.If more than one input device is
connected, press the SOURCE
button on the remote control
and use the ▲ or ▼ buttons to
select the applicable device or
press ▲ and ▼ or ◄ and ► at
the same time on the keypad on
the Qumi.
• HDMI1/MHL: HDMI / DVI /
MHL
• HDMI 2: HDMI / DVI
• USB: USB disc
4.Press the  POWER button to
turn off the Qumi.
5.When the “Power Off? /Press
Power again” message appears,
press the  POWER button.
The projector turns off.
Adjusting the Image
If the projected image is...

16

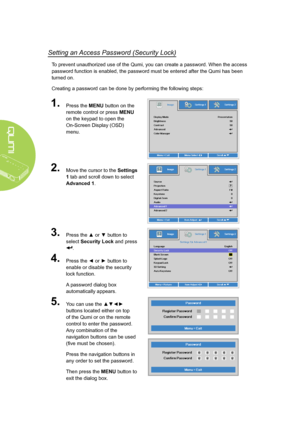

Setting an Access Password (Security Lock)
To prevent unauthorized use of the Qumi, you can create a password. When the access
password function is enabled, the password must be entered after the Qumi has been
turned on.
Creating a password can be done by performing the following steps:
1.Press the MENU button on the
remote control or press MENU
on the keypad to open the
On-Screen Display (OSD)
menu.
2.Move the cursor to the Settings
1 tab and scroll down to select
Advanced 1.
3.Press the ▲...

17

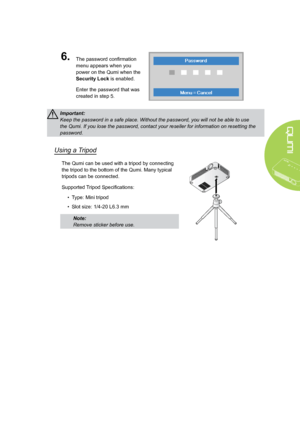

6.The password confirmation
menu appears when you
power on the Qumi when the
Security Lock is enabled.
Enter the password that was
created in step 5.
Important:
Keep the password in a safe place. Without the password, you will not be able to use
the Qumi. If you lose the password, contact your reseller for informatio\
n on resetting the
password.
Using a Tripod
The Qumi can be used with a tripod by connecting
the tripod to the bottom of the Qumi. Many typical
tripods can be connected....

18
Setting Up the Remote
The remote control comes with one (1) 3V lithium
battery (CR2025). The battery is pre-installed in
the remote control.
To begin using the remote control, remove the
plastic tab (A) from the battery compartment.
A
Replacing the Remote Control Batteries
1.Remove the battery
compartment cover
by sliding the cover
towards the arrow
(A). Then pull out
the cover towards
the arrow (B).
2.Remove the old
battery and insert
the new battery
with the positive
side facing up....

19
Chapter 3  Qumi User Interface
Overview
The Qumi User Interface (UI) is design to provide setting and operational ease of use. The
UI also allows you to access media files from your smart devices (phones or tablets) or
USB drives for a complete media experience.
The UI contains three main functions:
• Connect to PC - Allows the use of a connected PC as a storage device.
• EZ Media - Allows the use of media stored in the internal memory or a connected
USB drive to display photos, music, audio and...

20
Connect to PC
The Connect to PC function allows a connected PC to function as an exter\
nal storage
device. Once connected, the Qumi can function as an external storage dev\
ice, which
allows you to transfer media files directly to Qumi’s internal memory, and provide you with
direct access to the projector function of the Qumi.
To use the Qumi projection function through the Connect to PC function, you will need to
install the included software package, see the following information.
1. Power on...

21

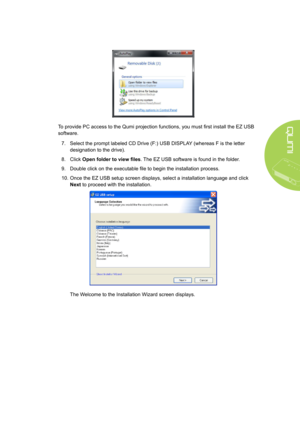

To provide PC access to the Qumi projection functions, you must first install the EZ USB
software.
7. Select the prompt labeled CD Drive (F:) USB DISPLAY (whereas F is the letter
designation to the drive).
8. Click Open folder to view files. The EZ USB software is found in the folder.
9. Double click on the executable file to begin the installation process.
10. Once the EZ USB setup screen displays, select a installation language and click
Next to proceed with the installation.

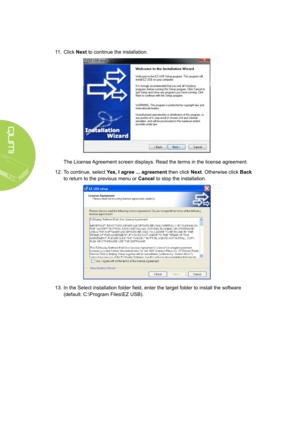

The Welcome to the...

22
11. Click Next to continue the installation.
The License Agreement screen displays. Read the terms in the license agreement.
12. To continue, select Yes, I agree ... agreement then click Next. Otherwise click Back
to return to the previous menu or Cancel to stop the installation.
13. In the Select installation folder field, enter the target folder to install the software
(default: C:\Program Files\EZ USB).

23
14. Click Next to continue. Otherwise, click Back to return to the previous menu or
Cancel to stop the installation.
15. Once the installation is finished, click Finish to conclude the process and exit the EZ
USB setup.
The EZ USB software allows for display video or graphic from the PC.

24

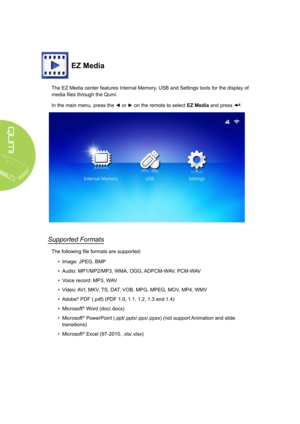

EZ Media
The EZ Media center features Internal Memory, USB and Settings tools for the display of
media files through the Qumi.
In the main menu, press the ◄ or ► on the remote to select EZ Media and press .
Supported Formats
The following file formats are supported:
• Image: JPEG, BMP
• Audio: MP1/MP2/MP3, WMA, OGG, ADPCM-WAV, PCM-WAV
• Voice record: MP3, WAV
• Video: AVI, MKV, TS, DAT, VOB, MPG, MPEG, MOV, MP4, WMV
• Adobe® PDF (.pdf) (PDF 1.0, 1.1, 1.2, 1.3 and 1.4)
• Microsoft® Word (doc/.docx)
•...
