Vizio Television M801d-A3 User Manual

7
44

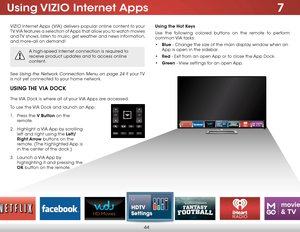

Using VIZIO  Internet  Apps
VIZIO Internet Apps (VIA) delivers popular online content to your
TV. VIA features a selection of Apps that allow you to watch movies
and TV shows, listen to music, get weather and news information,
and more–all on demand!
A high-speed internet connection is required to
receive product updates and to access online
content.
See Using the Network Connection Menu on page 24 if  your TV
is not yet connected to your home network.
Using the ViA Dock
The VIA Dock is where...

8
45
How to View 3D
How THeaTer 3D works
Because our eyes have space between them, when we look
around, we see two slightly different pictures. We never notice,
because we are able to combine these pictures into one three-
dimensional image.
The VIZIO Theater 3D HDTV takes advantage of this phenomenon
to create a stunning 3D image. When displaying 3D content, the
3D HDTV actually displays two separate images at the same
time—one for each eye.
Because Theater 3D glasses only allow each eye to see its...

8
46

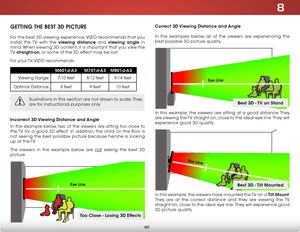

geTTiNg THe BesT 3D PiCTure
For the best 3D viewing experience, VIZIO recommends that you
install the TV with the viewing distance and viewing angle in
mind. When viewing 3D content, it is important that you view the
TV straight-on, or some of the 3D effect may be lost.
For your TV, VIZIO recommends:
M601d-A3 M701d-A3M801d-A3
Viewing Range: 7-10 feet8-12 feet9-14 feet
Optimal Distance: 8 feet9 feet10 feet
Illustrations in this section are not drawn to scale. They
are for instructional purposes...

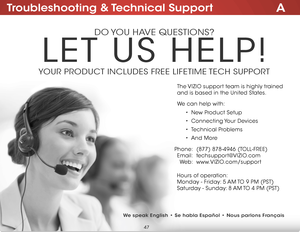

ATroubleshooting & Technical Support
do you have questions?
Let us heLP!
youR PRoduCt inCLudes FRee LiFetiMe  teCh suPPoRt
Phone:
e mail:
We b :(877) 878-4946 (toLL-FRee)
techsupport@
viZio.com
www.viZio .com/support
hours of operation:
M onday - Friday: 5 aM to 9 PM (Pst)
s aturday - sunday: 8 aM to 4 PM (Pst)
t
he  viZio support team is highly trained
and is based in the united states.
We can help with:
•  new Product setup
•  Connecting y our devices
•  technical Problems
•  and More
We speak...

A
48

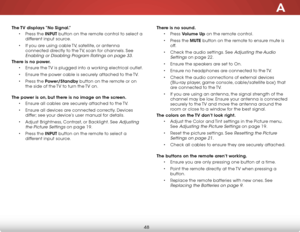

The TV displays “No Signal.”• Press the INPUT button on the remote control to select a
different input source.
•  if you are using cable  tv, satellite, or antenna
connected directly to the  tv, scan for channels. see
enabling or disabling Program Ratings on page 33.
There is no power. • ensure the  tv is plugged into a working electrical outlet.
•  ensure the power cable is securely attached to the  tv.
•  Press the Power/Standby button on the remote or on
the side of the  tv to turn the tv on....

A
49

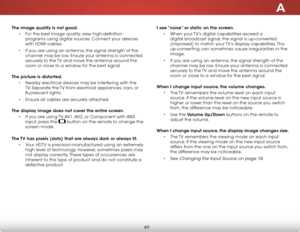

The image quality is not good.• For the best image quality, view high-definition
programs using digital sources. Connect your devices
with hdMi cables.
•  if you are using an antenna, the signal strength of the
channel may be low. ensure your antenna is connected
securely to the  tv and move the antenna around the
room or close to a window for the best signal.
The picture is distorted. • nearby electrical devices may be interfering with the
tv. separate the  tv from electrical appliances,...

B
50

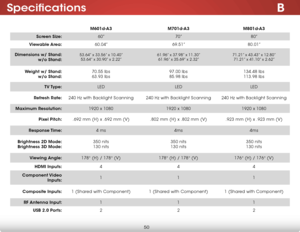

Specifications
M601d-A3M701d-A3M801d-A3
Screen Size: 60” 70”80”
Viewable Area: 60.04” 69.51”80.01”
Dimensions w/ Stand:
w/o Stand:
53.64” x 33.56” x 10.40”
53.64” x 30.90” x 2.22” 61.96” x 37.98” x 11.30”

61.96” x 35.69” x 2.32” 71.21” x 43.43” x 12.80”

71.21” x 41.10” x 2.62”
Weight w/ Stand:
w/o Stand: 70.55 lbs

63.93 lbs 97.00 lbs
85.98 lbs134.48 lbs
113.98 lbs
TV Type: LED LEDLED
Refresh Rate: 240 Hz with Backlight Scanning 240 Hz with Backlight Scanning240 Hz with Backlight...

B
51

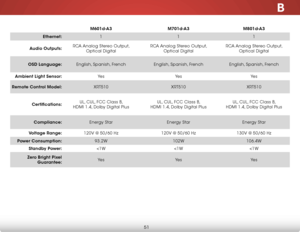

M601d-A3M701d-A3M801d-A3
Ethernet: 1 11
Audio Outputs: RCA Analog Stereo Output,

Optical Digital RCA Analog Stereo Output,

Optical Digital RCA Analog Stereo Output,

Optical Digital
OSD Language: English, Spanish, French English, Spanish, FrenchEnglish, Spanish, French
Ambient Light Sensor: Ye sYe sYe s
Remote Control Model: XRT510XRT510XRT510
Certifications: UL, CUL, FCC Class B,

HDMI 1.4, Dolby Digital Plus UL, CUL, FCC Class B,

HDMI 1.4, Dolby Digital Plus UL, CUL, FCC Class B,...

C
52

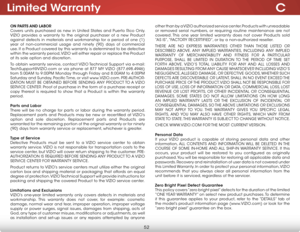

Limited Warranty
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only.
VIZIO provides a warranty to the original purchaser of a new Product
against defects in materials and workmanship for a period of one (1)
year of non-commercial usage and ninety (90) days of commercial
use. If a Product covered by this warranty is determined to be defective
within the warranty period, VIZIO will either repair or replace the Product
at its sole option and discretion.
To...

D
53

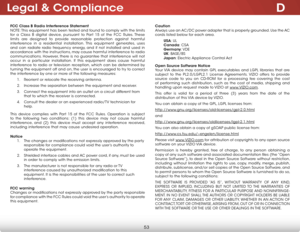

Legal & Compliance
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio...
