Zanussi Zwg 385 User Manual

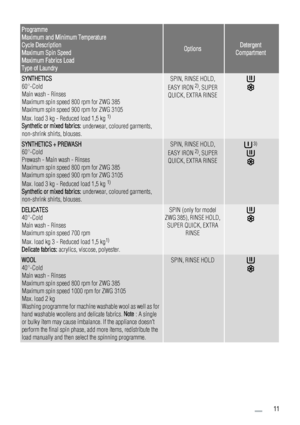

Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
OptionsDetergent
Compartment
SYNTHETICS
60°-Cold
Main wash - Rinses
Maximum spin speed 800 rpm for ZWG 385
Maximum spin speed 900 rpm for ZWG 3105
Max. load 3 kg - Reduced load 1,5 kg
1)
Synthetic or mixed fabrics: underwear, coloured garments,
non-shrink shirts, blouses.
SPIN, RINSE HOLD,
EASY IRON 2), SUPER
QUICK, EXTRA RINSE
SYNTHETICS + PREWASH
60°-Cold
Prewash - Main wash - Rinses...

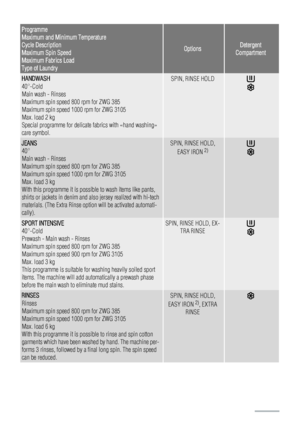

Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
OptionsDetergent
Compartment
HANDWASH
40°-Cold
Main wash - Rinses
Maximum spin speed 800 rpm for ZWG 385
Maximum spin speed 1000 rpm for ZWG 3105
Max. load 2 kg
Special programme for delicate fabrics with «hand washing»
care symbol.SPIN, RINSE HOLD
JEANS
40°
Main wash - Rinses
Maximum spin speed 800 rpm for ZWG 385
Maximum spin speed 1000 rpm for ZWG 3105
Max. load 3 kg
With this programme...

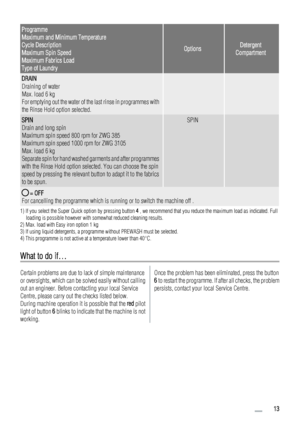

Programme
Maximum and Minimum Temperature
Cycle Description
Maximum Spin Speed
Maximum Fabrics Load
Type of Laundry
OptionsDetergent
Compartment
DRAIN
Draining of water
Max. load 6 kg
For emptying out the water of the last rinse in programmes with
the Rinse Hold option selected.
SPIN
Drain and long spin
Maximum spin speed 800 rpm for ZWG 385
Maximum spin speed 1000 rpm for ZWG 3105
Max. load 6 kg
Separate spin for hand washed garments and after programmes
with the Rinse Hold option selected. You can...

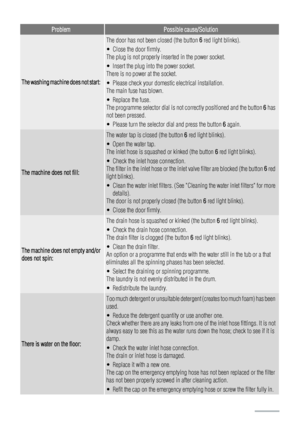

ProblemPossible cause/Solution
The washing machine does not start:
The door has not been closed (the button 6 red light blinks).
• Close the door firmly.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
• Replace the fuse.
The programme selector dial is not correctly positioned and the button 6 has
not been pressed.
• Please turn the selector dial...

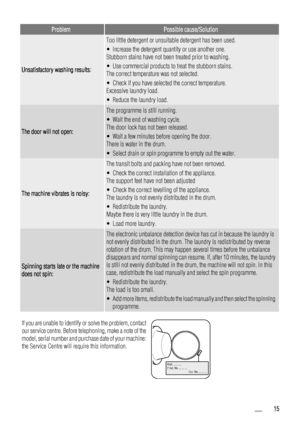

ProblemPossible cause/Solution
Unsatisfactory washing results:
Too little detergent or unsuitable detergent has been used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to washing.
• Use commercial products to treat the stubborn stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Reduce the laundry load.
The door will not open:
The programme is still running.
• Wait the end of...

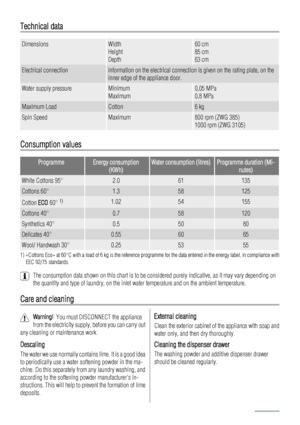

Technical data
DimensionsWidth
Height
Depth60 cm
85 cm
63 cm
Electrical connectionInformation on the electrical connection is given on the rating plate, on the
inner edge of the appliance door.
Water supply pressureMinimum
Maximum0,05 MPa
0,8 MPa
Maximum LoadCotton6 kg
Spin SpeedMaximum800 rpm (ZWG 385)
1000 rpm (ZWG 3105)
Consumption values
ProgrammeEnergy consumption
(KWh)Water consumption (litres)Programme duration (Mi-
nutes)
White Cottons 95°2.061135
Cottons 60°1.358125
Cotton ECO 60° 1)1.0254155...

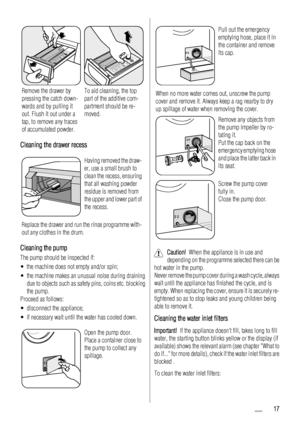

Remove the drawer by
pressing the catch down-
wards and by pulling it
out. Flush it out under a
tap, to remove any traces
of accumulated powder.To aid cleaning, the top
part of the additive com-
partment should be re-
moved.
Cleaning the drawer recess
Having removed the draw-
er, use a small brush to
clean the recess, ensuring
that all washing powder
residue is removed from
the upper and lower part of
the recess.
Replace the drawer and run the rinse programme with-
out any clothes in the drum.
Cleaning...

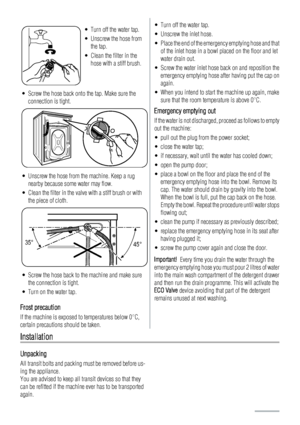

• Turn off the water tap.
• Unscrew the hose from
the tap.
• Clean the filter in the
hose with a stiff brush.
• Screw the hose back onto the tap. Make sure the
connection is tight.
• Unscrew the hose from the machine. Keep a rug
nearby because some water may flow.
• Clean the filter in the valve with a stiff brush or with
the piece of cloth.
35°
45°
• Screw the hose back to the machine and make sure
the connection is tight.
• Turn on the water tap.
Frost precaution
If the machine is exposed to...

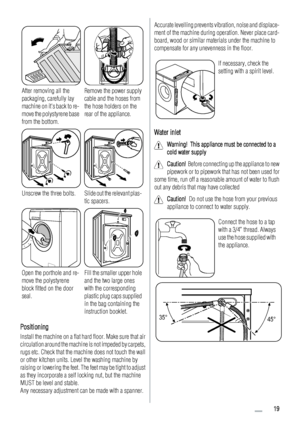

After removing all the
packaging, carefully lay
machine on its back to re-
move the polystyrene base
from the bottom.Remove the power supply
cable and the hoses from
the hose holders on the
rear of the appliance.
Unscrew the three bolts.Slide out the relevant plas-
tic spacers.
Open the porthole and re-
move the polystyrene
block fitted on the door
seal.Fill the smaller upper hole
and the two large ones
with the corresponding
plastic plug caps supplied
in the bag containing the
instruction booklet....

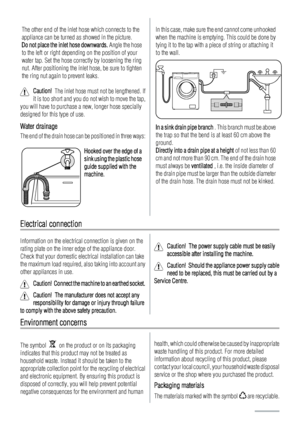

The other end of the inlet hose which connects to the
appliance can be turned as showed in the picture.
Do not place the inlet hose downwards. Angle the hose
to the left or right depending on the position of your
water tap. Set the hose correctly by loosening the ring
nut. After positioning the inlet hose, be sure to tighten
the ring nut again to prevent leaks.
Caution!  The inlet hose must not be lengthened. If
it is too short and you do not wish to move the tap,
you will have to purchase a new, longer...
