AEG Lavamat 86810 Information Manual

11

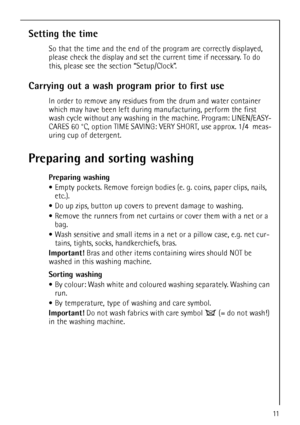

Setting the time
So that the time and the end of the program are correctly displayed,
please check the display and set the current time if necessary. To do
this, please see the section “Setup/Clock”.
Carrying out a wash program prior to first use
In order to remove any residues from the drum and water container
which may have been left during manufacturing, perform the first
wash cycle without any washing in the machine. Program: LINEN/EASY-
CARES 60 °C, option TIME SAVING: VERY SHORT, use approx....

12

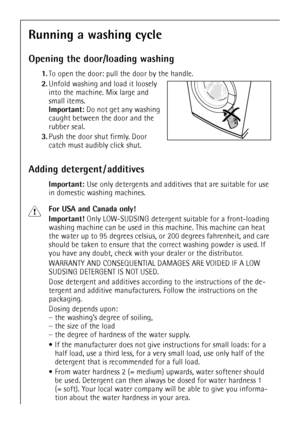

Running a washing cycle
Opening the door/loading washing
1.To open the door: pull the door by the handle.
2.Unfold washing and load it loosely
into the machine. Mix large and
small items.
Important: Do not get any washing
caught between the door and the
rubber seal.
3.Push the door shut firmly. Door
catch must audibly click shut.
Adding detergent / additives
Important: Use only detergents and additives that are suitable for use
in domestic washing machines.
1For USA and Canada only!...

13

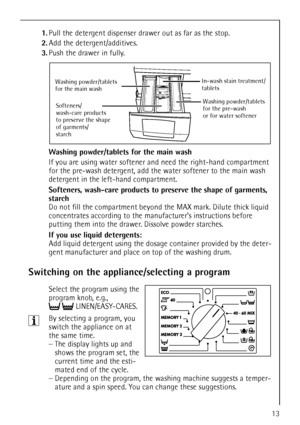

1.Pull the detergent dispenser drawer out as far as the stop.
2.Add the detergent/additives.
3.Push the drawer in fully.
Washing powder/tablets for the main wash
If you are using water softener and need the right-hand compartment
for the pre-wash detergent, add the water softener to the main wash
detergent in the left-hand compartment.
Softeners, wash-care products to preserve the shape of garments,
starch
Do not fill the compartment beyond the MAX mark. Dilute thick liquid
concentrates...

14

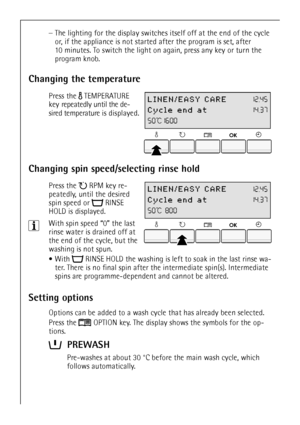

–The lighting for the display switches itself off at the end of the cycle
or, if the appliance is not started after the program is set, after
10 minutes. To switch the light on again, press any key or turn the
program knob.
Changing the temperature
 Press the  TEMPERATURE
key repeatedly until the de-
sired temperature is displayed.
Changing spin speed/selecting rinse hold
 Press the  RPM key re-
peatedly, until the desired
spin speed or  RINSE
HOLD is displayed.
3With spin speed “0” the last...

15

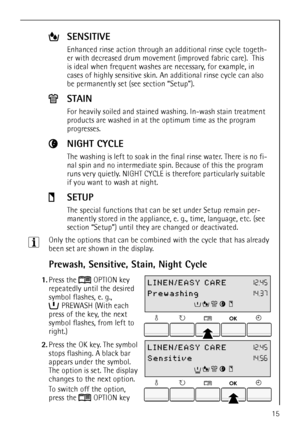

3Only the options that can be combined with the cycle that has already
been set are shown in the display.
Prewash, Sensitive, Stain, Night Cycle
 1.Press the  OPTION key
repeatedly until the desired
symbol flashes, e. g.,
PREWASH (With each
press of the key, the next
symbol flashes, from left to
right.)
 2.Press the OK key. The symbol
stops flashing. A black bar
appears under the symbol.
The option is set. The display
changes to the next option.
To switch off the option,
press the...

16

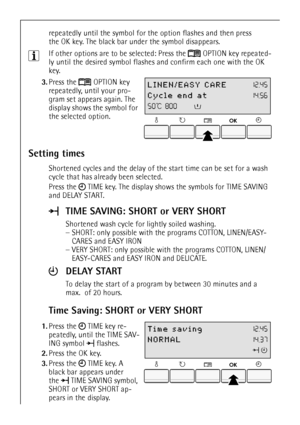

repeatedly until the symbol for the option flashes and then press
the OK key. The black bar under the symbol disappears.
3If other options are to be selected: Press the  OPTION key repeated-
ly until the desired symbol flashes and confirm each one with the OK
key.

3.Press the  OPTION key
repeatedly, until your pro-
gram set appears again. The
display shows the symbol for
the selected option.
Setting times
Shortened cycles and the delay of the start time can be set for a wash
cycle that has...

17

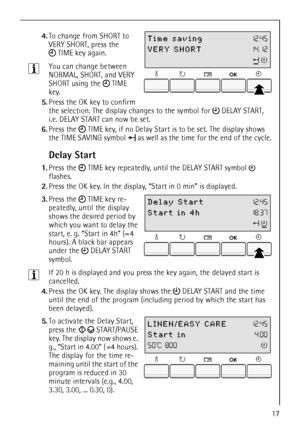

 4.To change from SHORT to
VERY SHORT, press the
TIME key again.
3You can change between
NORMAL, SHORT, and VERY
SHORT using the  TIME
key.
5.Press the OK key to confirm
the selection. The display changes to the symbol for  DELAY START,
i.e. DELAY START can now be set.
6.Press the  TIME key, if no Delay Start is to be set. The display shows
the TIME SAVING symbol  as well as the time for the end of the cycle.
Delay Start
1.Press the  TIME key repeatedly, until the DELAY START symbol...

18

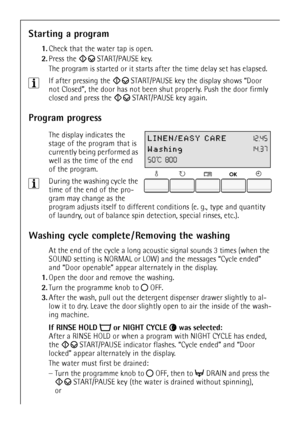

Starting a program
1.Check that the water tap is open.
2.Press the  START/PAUSE key.
The program is started or it starts after the time delay set has elapsed.
3If after pressing the  START/PAUSE key the display shows “Door
not Closed”, the door has not been shut properly. Push the door firmly
closed and press the  START/PAUSE key again.
Program progress
 The display indicates the
stage of the program that is
currently being performed as
well as the time of the end
of the program.
3During the...

19

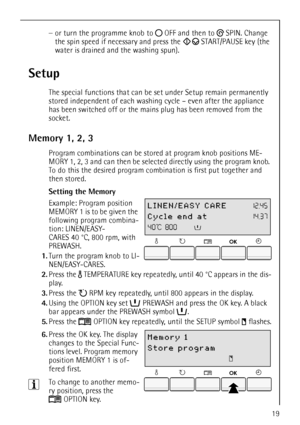

–or turn the programme knob to  OFF and then to  SPIN. Change
the spin speed if necessary and press the  START/PAUSE key (the
water is drained and the washing spun).
Setup
The special functions that can be set under Setup remain permanently
stored independent of each washing cycle – even after the appliance
has been switched off or the mains plug has been removed from the
socket.
Memory 1, 2, 3
Program combinations can be stored at program knob positions ME-
MORY 1, 2, 3 and can then be selected...

20

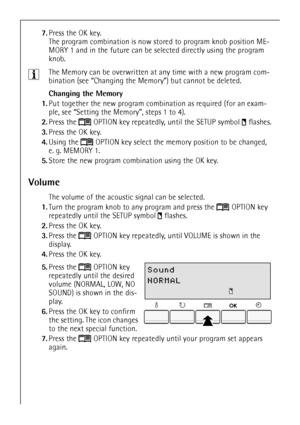

7.Press the OK key.
The program combination is now stored to program knob position ME-
MORY 1 and in the future can be selected directly using the program
knob.
3The Memory can be overwritten at any time with a new program com-
bination (see “Changing the Memory”) but cannot be deleted.
Changing the Memory
1.Put together the new program combination as required (for an exam-
ple, see “Setting the Memory”, steps 1 to 4).
2.Press the  OPTION key repeatedly, until the SETUP symbol   flashes.
3.Press the...
