AEG Lavamat 86810 Information Manual

21

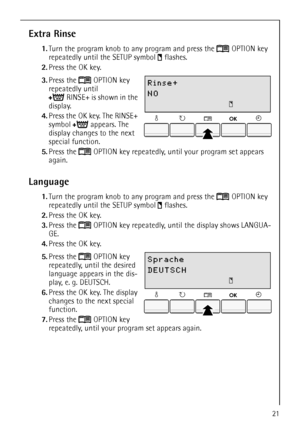

Extra Rinse
1.Turn the program knob to any program and press the  OPTION key
repeatedly until the SETUP symbol  flashes.
2.Press the OK key.

3.Press the  OPTION key
repeatedly until
RINSE+ is shown in the
display.
4.Press the OK key. The RINSE+
symbol appears. The
display changes to the next
special function.
5.Press the  OPTION key repeatedly, until your program set appears
again.
Language
1.Turn the program knob to any program and press the  OPTION key
repeatedly until the SETUP symbol...

22

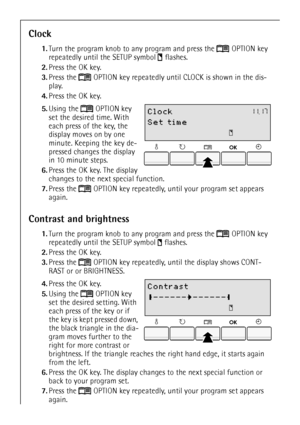

Clock
1.Turn the program knob to any program and press the  OPTION key
repeatedly until the SETUP symbol  flashes.
2.Press the OK key.
3.Press the  OPTION key repeatedly until CLOCK is shown in the dis-
play.
4.Press the OK key.
 5.Using the  OPTION key
set the desired time. With
each press of the key, the
display moves on by one
minute. Keeping the key de-
pressed changes the display
in 10 minute steps.
6.Press the OK key. The display
changes to the next special function.
7.Press the  OPTION...

23

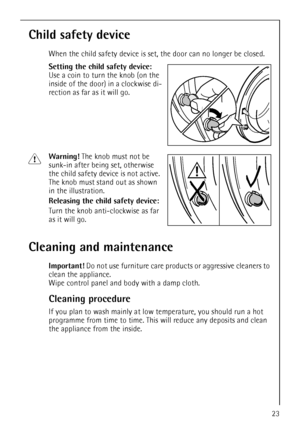

Child safety device
When the child safety device is set, the door can no longer be closed.
Setting the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise di-
rection as far as it will go.
1Warning! The knob must not be
sunk-in after being set, otherwise
the child safety device is not active.
The knob must stand out as shown
in the illustration.
Releasing the child safety device:
Turn the knob anti-clockwise as far
as it will go.
Cleaning and...

24

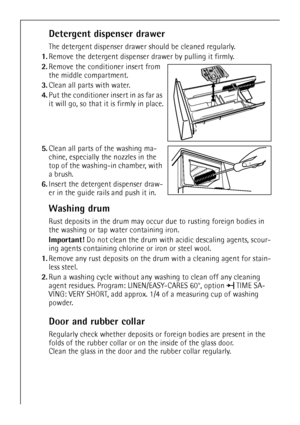

Detergent dispenser drawer
The detergent dispenser drawer should be cleaned regularly.
1.Remove the detergent dispenser drawer by pulling it firmly.
2.Remove the conditioner insert from
the middle compartment.
3.Clean all parts with water.
4.Put the conditioner insert in as far as
it will go, so that it is firmly in place.
5.Clean all parts of the washing ma-
chine, especially the nozzles in the
top of the washing-in chamber, with
a brush.
6.Insert the detergent dispenser draw-
er in the guide...

25

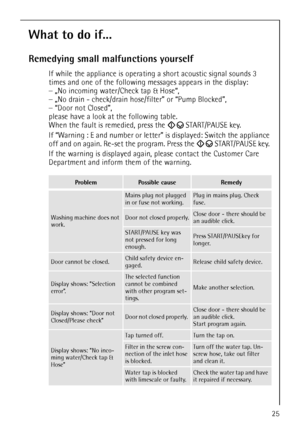

What to do if...
Remedying small malfunctions yourself
If while the appliance is operating a short acoustic signal sounds 3
times and one of the following messages appears in the display:
–„No incoming water/Check tap & Hose“,
–„No drain - check/drain hose/filter” or “Pump Blocked”,
–“Door not Closed”,
please have a look at the following table.
When the fault is remedied, press the  START/PAUSE key.
If “Warning : E and number or letter” is displayed: Switch the appliance
off and on again. Re-set...

26

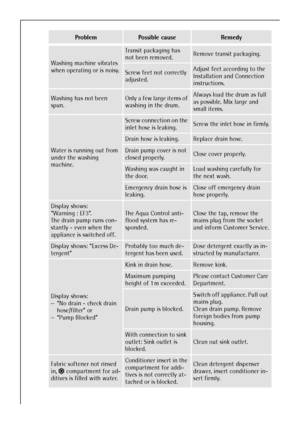

Washing machine vibrates
when operating or is noisy.
Transit packaging has
not been removed.Remove transit packaging.
Screw feet not correctly
adjusted.Adjust feet according to the
Installation and Connection
instructions.
Washing has not been
spun.Only a few large items of
washing in the drum.Always load the drum as full
as possible. Mix large and
small items.
Water is running out from
under the washing
machine.
Screw connection on the
inlet hose is leaking.Screw the inlet hose in...

27

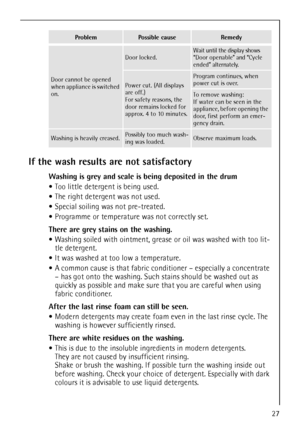

If the wash results are not satisfactory
Washing is grey and scale is being deposited in the drum
Too little detergent is being used.
The right detergent was not used.
Special soiling was not pre-treated.
Programme or temperature was not correctly set.
There are grey stains on the washing.
Washing soiled with ointment, grease or oil was washed with too lit-
tle detergent.
It was washed at too low a temperature.
A common cause is that fabric conditioner – especially a concentrate
– has got onto the...

28

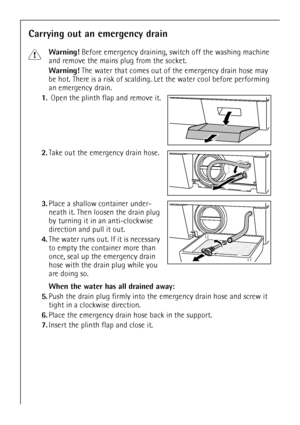

Carrying out an emergency drain
1Warning! Before emergency draining, switch off the washing machine
and remove the mains plug from the socket.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain.
1.Open the plinth flap and remove it.
2.Take out the emergency drain hose.
3.Place a shallow container under-
neath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and...

29

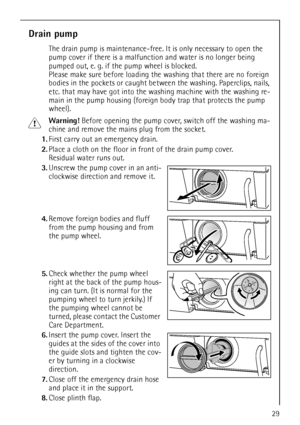

Drain pump
The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e. g. if the pump wheel is blocked.
Please make sure before loading the washing that there are no foreign
bodies in the pockets or caught between the washing. Paperclips, nails,
etc. that may have got into the washing machine with the washing re-
main in the pump housing (foreign body trap that protects the pump
wheel).
1Warning! Before...

30

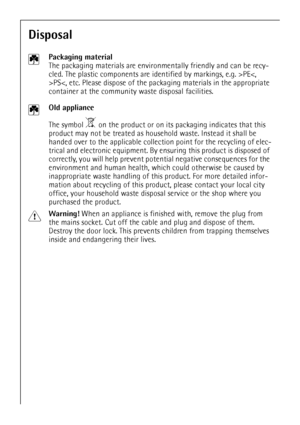

Disposal
2
Packaging material
The packaging materials are environmentally friendly and can be recy-
cled. The plastic components are identified by markings, e.g. >PEPS
