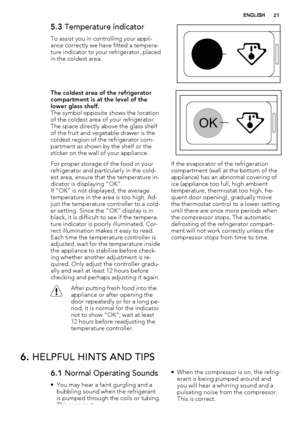

5.3 Temperature indicator
To assist you in controlling your appli-
ance correctly we have fitted a tempera-
ture indicator to your refrigerator, placed
in the coldest area.
The coldest area of the refrigerator
compartment is at the level of the
lower glass shelf.
The symbol opposite shows the location
of the coldest area of your refrigerator.
The space directly above the glass shelf
of the fruit and vegetable drawer is the
coldest region of the refrigerator com-
partment as shown by the shelf or the...

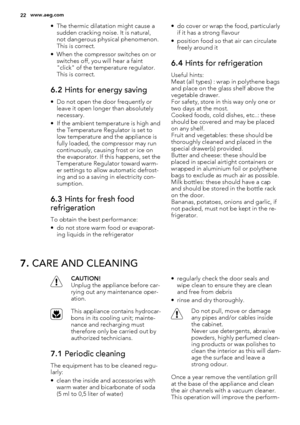

• The thermic dilatation might cause a
sudden cracking noise. It is natural,
not dangerous physical phenomenon.
This is correct.
• When the compressor switches on or
switches off, you will hear a faint
"click" of the temperature regulator.
This is correct.
6.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to
low temperature and the appliance is
fully loaded, the...

ance of the appliance and save electrici-
ty consumption.
CAUTION!
Take care of not to damage the
cooling system.
Many proprietary kitchen surface clean-
ers contain chemicals that can attack/damage the plastics used in this appli-
ance. For this reason it is recommended
that the outer casing of this appliance is
only cleaned with warm water with a little
washing-up liquid added.
After cleaning, reconnect the equipment
to the mains supply.

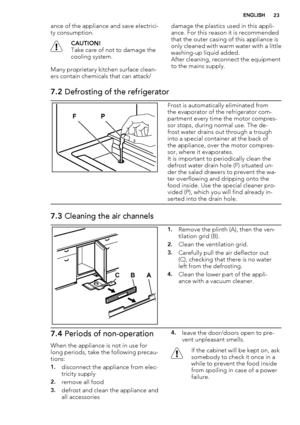

7.2 Defrosting of the refrigerator
P F
Frost is automatically...

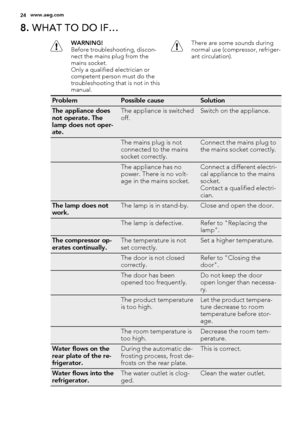

8. WHAT TO DO IF…
WARNING!
Before troubleshooting, discon-
nect the mains plug from the
mains socket.
Only a qualified electrician or
competent person must do the
troubleshooting that is not in this
manual.There are some sounds during
normal use (compressor, refriger-
ant circulation).
ProblemPossible causeSolution
The appliance does
not operate. The
lamp does not oper-
ate.The appliance is switched
off.Switch on the appliance.
 The mains plug is not
connected to the mains
socket correctly.Connect the...

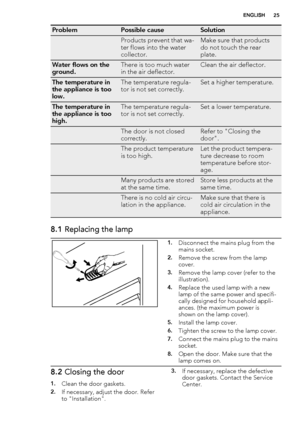

ProblemPossible causeSolution
 Products prevent that wa-
ter flows into the water
collector.Make sure that products
do not touch the rear
plate.
Water flows on the
ground.There is too much water
in the air deflector.Clean the air deflector.
The temperature in
the appliance is too
low.The temperature regula-
tor is not set correctly.Set a higher temperature.
The temperature in
the appliance is too
high.The temperature regula-
tor is not set correctly.Set a lower temperature.
 The door is not closed...

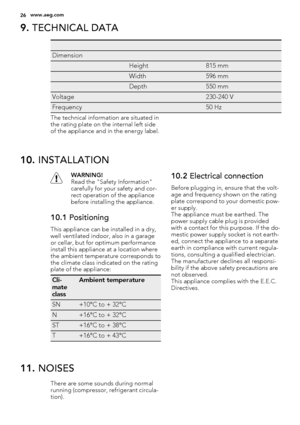

9. TECHNICAL DATA

Dimension
 Height815 mm
 Width596 mm
 Depth550 mm
Voltage 230-240 V
Frequency 50 Hz
The technical information are situated in
the rating plate on the internal left side
of the appliance and in the energy label.
10. INSTALLATION
WARNING!
Read the "Safety Information"
carefully for your safety and cor-
rect operation of the appliance
before installing the appliance.
10.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor, also in a garage
or cellar,...

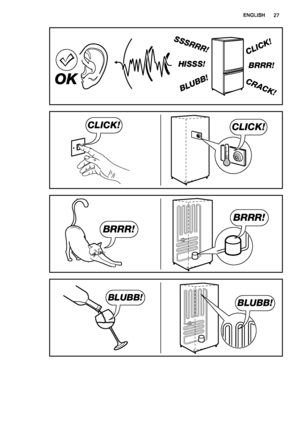

BRRR! HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK!CLICK!
BRRR!
BRRR!
BLUBB!BLUBB!
ENGLISH27


HISSS!
HISSS!
SSSRRR!SSSRRR!
CRACK!
CRACK!

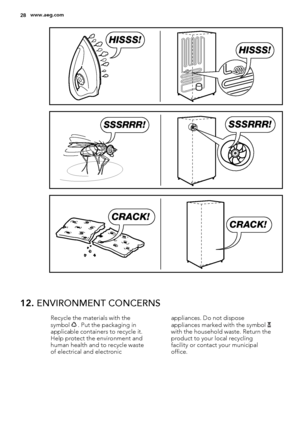

12. ENVIRONMENT CONCERNS
Recycle the materials with the
symbol  . Put the packaging in
applicable containers to recycle it.
Help protect the environment and
human health and to recycle waste
of electrical and electronicappliances. Do not dispose
appliances marked with the symbol with the household waste. Return the
product to your local recycling
facility or contact your municipal
office.
28www.aeg.com

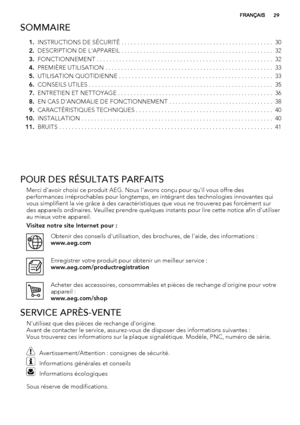

SOMMAIRE
1.INSTRUCTIONS DE SÉCURITÉ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30
2.DESCRIPTION DE L'APPAREIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  32
3.FONCTIONNEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  32
4.PREMIÈRE UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

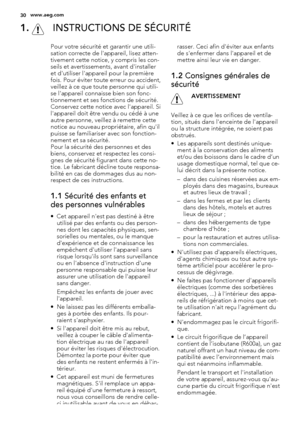

1.  INSTRUCTIONS DE SÉCURITÉ
Pour votre sécurité et garantir une utili-
sation correcte de l'appareil, lisez atten-
tivement cette notice, y compris les con-
seils et avertissements, avant d'installer
et d'utiliser l'appareil pour la première
fois. Pour éviter toute erreur ou accident,
veillez à ce que toute personne qui utili-
se l'appareil connaisse bien son fonc-
tionnement et ses fonctions de sécurité.
Conservez cette notice avec l'appareil. Si
l'appareil doit être vendu...
