BenQ M2700hd User Manual

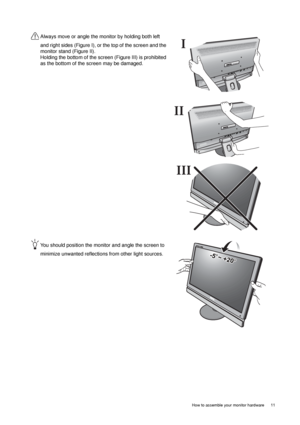

  11   How to assemble your monitor hardware
Always move or angle the monitor by holding both left
and right sides (Figure I), or the top of the screen and the
monitor stand (Figure II).
Holding the bottom of the screen (Figure III) is prohibited
as the bottom of the screen may be damaged.
You should position the monitor and angle the screen to
minimize unwanted reflections from other light sources.
I
II
III
-5O~ +20O

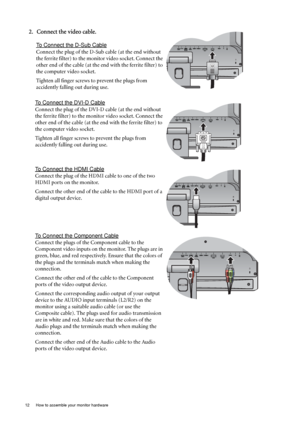

12  How to assemble your monitor hardware
2. Connect the video cable.
To Connect the D-Sub Cable
Connect the plug of the D-Sub cable (at the end without
the ferrite filter) to the monitor video socket. Connect the
other end of the cable (at the end with the ferrite filter) to
the computer video socket.
Tighten all finger screws to prevent the plugs from
accidently falling out during use.
To Connect the DVI-D Cable
Connect the plug of the DVI-D cable (at the end without
the ferrite filter) to the...

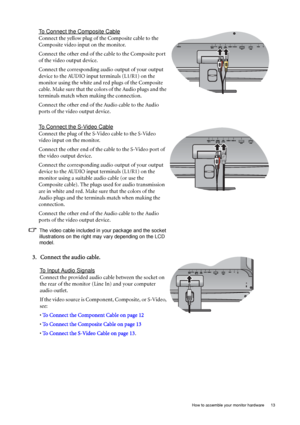

  13   How to assemble your monitor hardware
To Connect the Composite Cable
Connect the yellow plug of the Composite cable to the
Composite video input on the monitor.
Connect the other end of the cable to the Composite port
of the video output device.
Connect the corresponding audio output of your output
device to the AUDIO input terminals (L1/R1) on the
monitor using the white and red plugs of the Composite
cable. Make sure that the colors of the Audio plugs and the
terminals match when making...

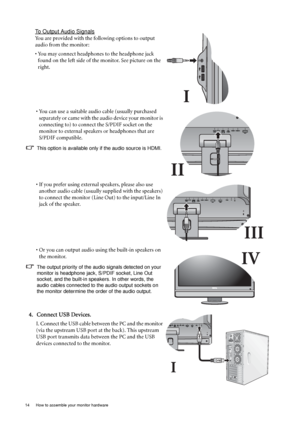

14  How to assemble your monitor hardware
To Output Audio Signals
You are provided with the following options to output
audio from the monitor:
• You may connect headphones to the headphone jack
found on the left side of the monitor. See picture on the
right.

• You can use a suitable audio cable (usually purchased
separately or came with the audio device your monitor is
connecting to) to connect the S/PDIF socket on the
monitor to external speakers or headphones that are
S/PDIF compatible....

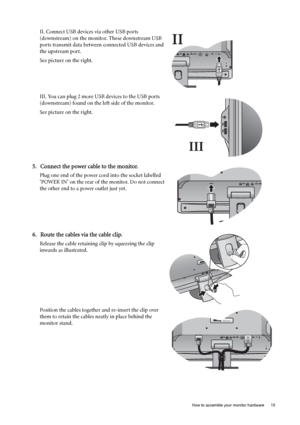

  15   How to assemble your monitor hardware
II. Connect USB devices via other USB ports
(downstream) on the monitor. These downstream USB
ports transmit data between connected USB devices and
the upstream port.
See picture on the right.
III. You can plug 2 more USB devices to the USB ports
(downstream) found on the left side of the monitor.
See picture on the right.
5. Connect the power cable to the monitor.
Plug one end of the power cord into the socket labelled
‘POWER IN’ on the rear of the...

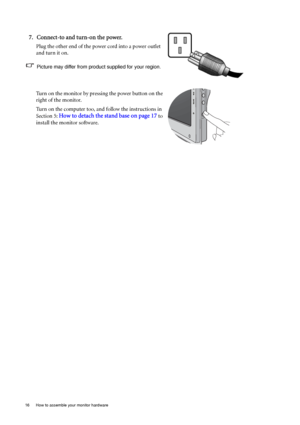

16  How to assemble your monitor hardware
7. Connect-to and turn-on the power.
Plug the other end of the power cord into a power outlet
and turn it on.
Picture may differ from product supplied for your region.
Turn on the monitor by pressing the power button on the
right of the monitor.
Turn on the computer too, and follow the instructions in
Section 5:
How to detach the stand base on page 17 to
install the monitor software.

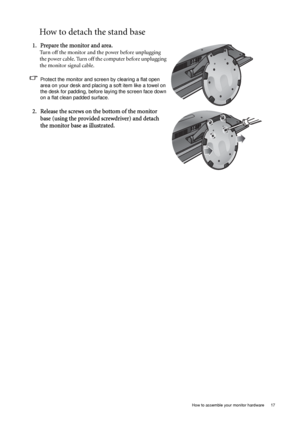

  17   How to assemble your monitor hardware
How to detach the stand base
1. Prepare the monitor and area.
Turn off the monitor and the power before unplugging
the power cable. Turn off the computer before unplugging
the monitor signal cable.
Protect the monitor and screen by clearing a flat open
area on your desk and placing a soft item like a towel on
the desk for padding, before laying the screen face down
on a flat clean padded surface.
2. Release the screws on the bottom of the monitor
base...

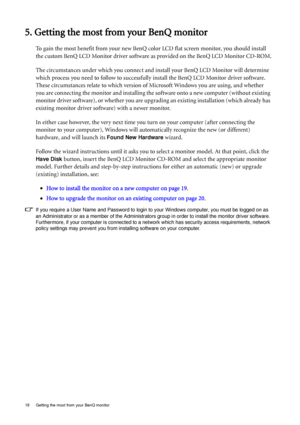

18  Getting the most from your BenQ monitor
5. Getting the most from your BenQ monitor
To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install
the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.
The circumstances under which you connect and install your BenQ LCD Monitor will determine
which process you need to follow to successfully install the BenQ LCD Monitor driver software.
These circumstances relate to which version of...

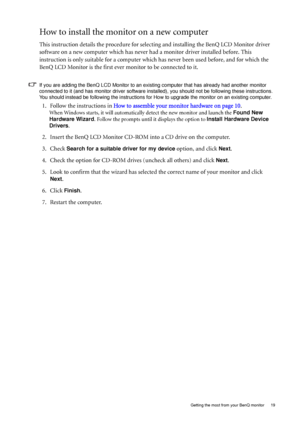

  19   Getting the most from your BenQ monitor
How to install the monitor on a new computer
This instruction details the procedure for selecting and installing the BenQ LCD Monitor driver
software on a new computer which has never had a monitor driver installed before. This
instruction is only suitable for a computer which has never been used before, and for which the
BenQ LCD Monitor is the first ever monitor to be connected to it.
If you are adding the BenQ LCD Monitor to an existing computer that...

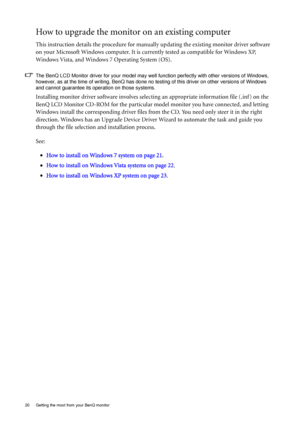

20  Getting the most from your BenQ monitor
How to upgrade the monitor on an existing computer
This instruction details the procedure for manually updating the existing monitor driver software
on your Microsoft Windows computer. It is currently tested as compatible for Windows XP,
Windows Vista, and Windows 7 Operating System (OS).
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows,
however, as at the time of writing, BenQ has done no testing of...
