BenQ M2700hd User Manual

  21   Getting the most from your BenQ monitor

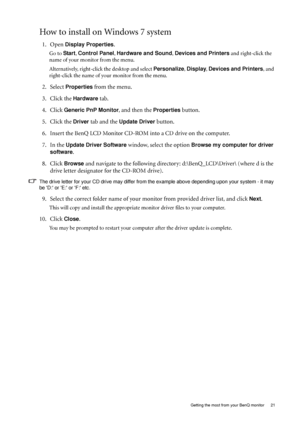

How to install on Windows 7 system
1. Open Display Properties.
Go to Start, Control Panel, Hardware and Sound, Devices and Printers and right-click the
name of your monitor from the menu.
Alternatively, right-click the desktop and select Personalize, Display, Devices and Printers, and
right-click the name of your monitor from the menu.
2. Select Properties from the menu.
3. Click the
Hardware tab.
4. Click
Generic PnP Monitor, and then the Properties...

22  Getting the most from your BenQ monitor

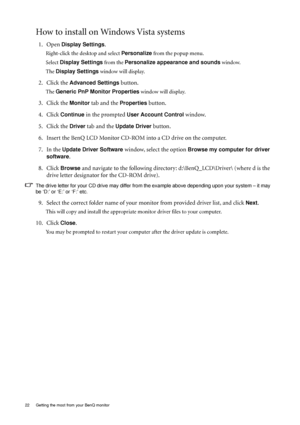

How to install on Windows Vista systems
1. Open Display Settings.
Right-click the desktop and select Personalize from the popup menu.
Select Display Settings from the Personalize appearance and sounds window.
The Display Settings window will display.
2. Click the Advanced Settings button.
The Generic PnP Monitor Properties window will display.
3. Click the Monitor tab and the Properties button.
4. Click
Continue in the prompted User Account Control...

  23   Getting the most from your BenQ monitor

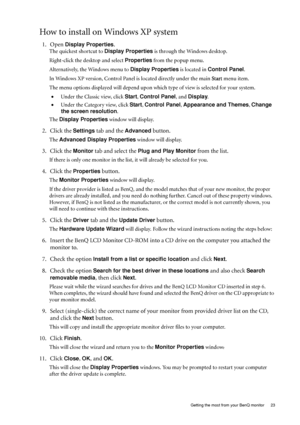

How to install on Windows XP system
1. Open Display Properties.
The quickest shortcut to Display Properties is through the Windows desktop.
Right-click the desktop and select Properties from the popup menu.
Alternatively, the Windows menu to Display Properties is located in Control Panel.
In Windows XP version, Control Panel is located directly under the main Start menu item.
The menu options displayed will depend upon which type of view is selected for...

24  Picture optimization

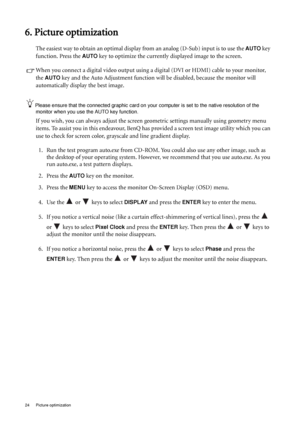

6. Picture optimization
The easiest way to obtain an optimal display from an analog (D-Sub) input is to use the AUTO key
function. Press the
AUTO key to optimize the currently displayed image to the screen.
When you connect a digital video output using a digital (DVI or HDMI) cable to your monitor,
the
AUTO key and the Auto Adjustment function will be disabled, because the monitor will
automatically display the best image.
Please ensure that the connected graphic card on...

  25   How to adjust your monitor

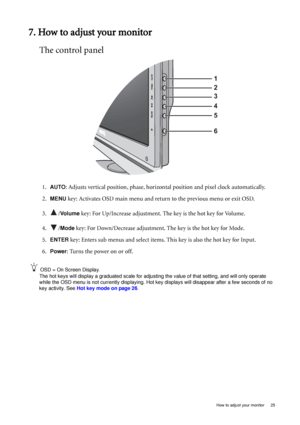

7. How to adjust your monitor
The control panel
1.AUTO: Adjusts vertical position, phase, horizontal position and pixel clock automatically.
2.
MENU key: Activates OSD main menu and return to the previous menu or exit OSD.
3. /
Vo l u m e key: For Up/Increase adjustment. The key is the hot key for Volume.
4. /
Mode key: For Down/Decrease adjustment. The key is the hot key for Mode.
5.
ENTER key: Enters sub menus and select items. This key is also the hot key for Input....

26  How to adjust your monitor

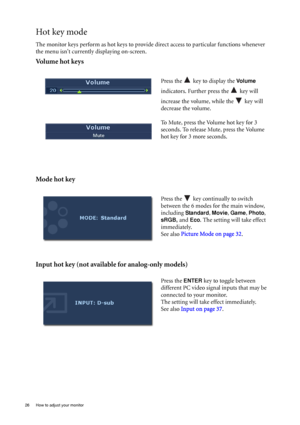

Hot key mode
The monitor keys perform as hot keys to provide direct access to particular functions whenever
the menu isnt currently displaying on-screen.
Volume hot keys
Mode hot key
Input hot key (not available for analog-only models)
Press the   key to display the Vo l u m e
indicators. Further press the   key will
increase the volume, while the   key will
decrease the volume.
To Mute, press the Volume hot key for 3
seconds. To release Mute, press the Volume
hot...

  27   How to adjust your monitor

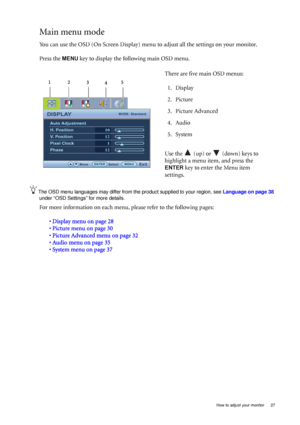

Main menu mode
You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor.
Press the
MENU key to display the following main OSD menu.
The OSD menu languages may differ from the product supplied to your region, see Language on page 38
under “OSD Settings” for more details.
For more information on each menu, please refer to the following pages:
• Display menu on page 28
• Picture menu on page 30
• Picture Advanced menu on page 32
• Audio...

28  How to adjust your monitor

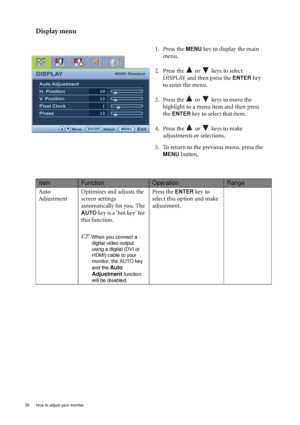

Display menu
1. Press the MENU key to display the main
menu.
2. Press the   or   keys to select
DISPLAY and then press the
ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU button.
DISPLAYMODE: Standard
Auto Adjustment
H. Position
V. Position
Pixel Clock
Phase
10...

  29   How to adjust your monitor
H. Position Adjusts the horizontal
position of the screen
image. Press the   or   keys to
adjust the value.0 to 100
V. Position Adjusts the vertical
position of the screen
image.0 to 100
Pixel Clock Adjusts the pixel clock
frequency timing to
synchronize with the
analog input video signal.
Not applicable to a digital
input signal.
See also: Picture
optimization on page 24.0 to 100
Phase Adjusts the pixel clock
phase timing to
synchronize with the
analog...

30  How to adjust your monitor

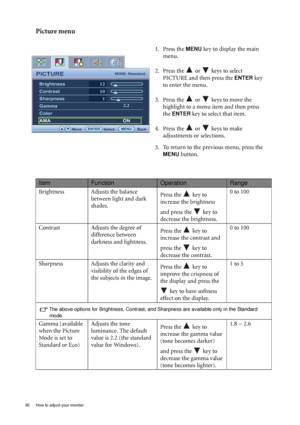

Picture menu
1. Press the MENU key to display the main
menu.
2. Press the   or   keys to select
PICTURE and then press the
ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU button.
2.2
PICTUREMODE:Standard
Brightness
Contrast
Sharpness
Gamma
Color
AMA12
10
1...
