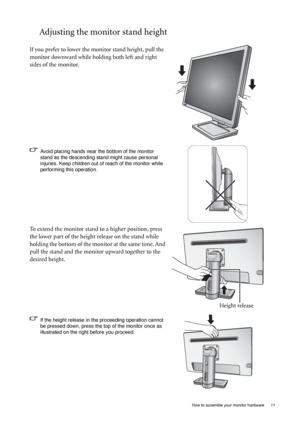

  11   How to assemble your monitor hardware
Adjusting the monitor stand height
If you prefer to lower the monitor stand height, pull the
monitor downward while holding both left and right
sides of the monitor.
Avoid placing hands near the bottom of the monitor
stand as the descending stand might cause personal
injuries. Keep children out of reach of the monitor while
performing this operation.
To extend the monitor stand to a higher position, press
the lower part of the height release on the stand...

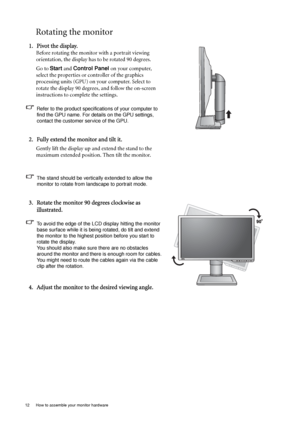

12  How to assemble your monitor hardware
Rotating the monitor
1. Pivot the display.
Before rotating the monitor with a portrait viewing
orientation, the display has to be rotated 90 degrees.
Go to Start and Control Panel on your computer,
select the properties or controller of the graphics
processing units (GPU) on your computer. Select to
rotate the display 90 degrees, and follow the on-screen
instructions to complete the settings.
Refer to the product specifications of your computer to
find...

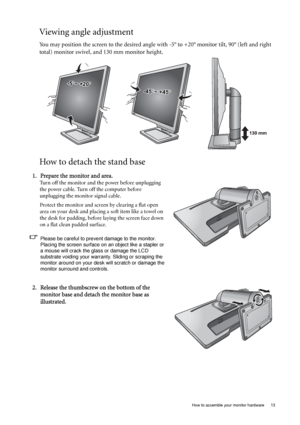

  13   How to assemble your monitor hardware
Viewing angle adjustment
You may position the screen to the desired angle with -5° to +20° monitor tilt, 90° (left and right
total) monitor swivel, and 130 mm monitor height.
How to detach the stand base
-45-45O O ~ +45~ +45O-45O ~ +45O
-5O~ +20O
130 mm
1. Prepare the monitor and area.
Turn off the monitor and the power before unplugging
the power cable. Turn off the computer before
unplugging the monitor signal cable.
Protect the monitor and screen by...

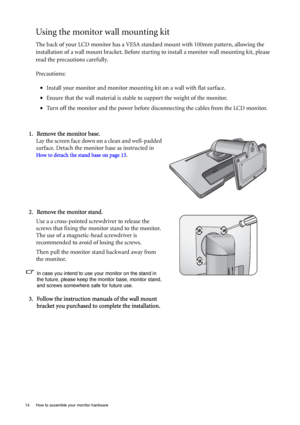

14  How to assemble your monitor hardware
Using the monitor wall mounting kit
The back of your LCD monitor has a VESA standard mount with 100mm pattern, allowing the
installation of a wall mount bracket. Before starting to install a monitor wall mounting kit, please
read the precautions carefully.
Precautions:
•Install your monitor and monitor mounting kit on a wall with flat surface.
•Ensure that the wall material is stable to support the weight of the monitor.
•Turn off the monitor and the power...

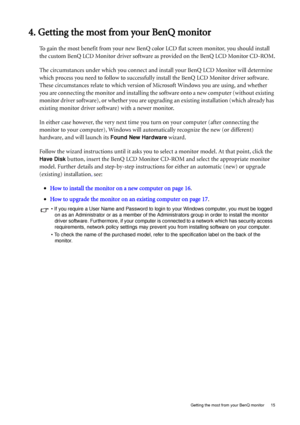

  15   Getting the most from your BenQ monitor
4. Getting the most from your BenQ monitor
To gain the most benefit from your new BenQ color LCD flat screen monitor, you should install
the custom BenQ LCD Monitor driver software as provided on the BenQ LCD Monitor CD-ROM.
The circumstances under which you connect and install your BenQ LCD Monitor will determine
which process you need to follow to successfully install the BenQ LCD Monitor driver software.
These circumstances relate to which version of...

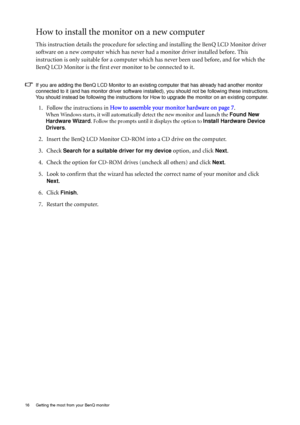

16  Getting the most from your BenQ monitor
How to install the monitor on a new computer
This instruction details the procedure for selecting and installing the BenQ LCD Monitor driver
software on a new computer which has never had a monitor driver installed before. This
instruction is only suitable for a computer which has never been used before, and for which the
BenQ LCD Monitor is the first ever monitor to be connected to it.
If you are adding the BenQ LCD Monitor to an existing computer that...

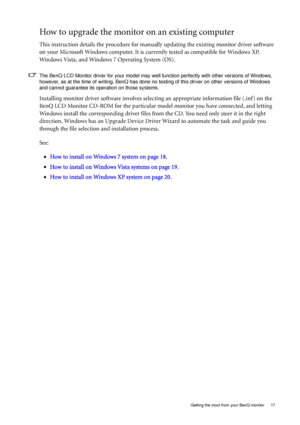

  17   Getting the most from your BenQ monitor
How to upgrade the monitor on an existing computer
This instruction details the procedure for manually updating the existing monitor driver software
on your Microsoft Windows computer. It is currently tested as compatible for Windows XP,
Windows Vista, and Windows 7 Operating System (OS).
The BenQ LCD Monitor driver for your model may well function perfectly with other versions of Windows,
however, as at the time of writing, BenQ has done no testing of...

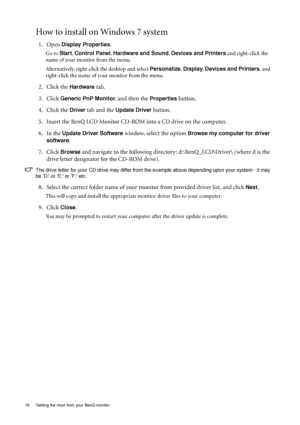

18  Getting the most from your BenQ monitor
How to install on Windows 7 system
1. Open Display Properties.
Go to Start, Control Panel, Hardware and Sound, Devices and Printers and right-click the
name of your monitor from the menu.
Alternatively, right-click the desktop and select Personalize, Display, Devices and Printers, and
right-click the name of your monitor from the menu.
2. Click the Hardware tab.
3. Click
Generic PnP Monitor, and then the Properties button.
4. Click the
Driver tab and the...

  19   Getting the most from your BenQ monitor
How to install on Windows Vista systems
1. Open Display Settings.
Right-click the desktop and select Personalize from the popup menu.
Select Display Settings from the Personalize appearance and sounds window.
The Display Settings window will display.
2. Click the Advanced Settings button.
The Generic PnP Monitor Properties window will display.
3. Click the Monitor tab and the Properties button.
4. Click
Continue in the prompted User Account Control...

20  Getting the most from your BenQ monitor
How to install on Windows XP system
1. Open Display Properties.
The quickest shortcut to Display Properties is through the Windows desktop.
Right-click the desktop and select Properties from the popup menu.
Alternatively, the Windows menu to Display Properties is located in Control Panel.
In Windows XP version, Control Panel is located directly under the main Start menu item.
The menu options displayed will depend upon which type of view is selected for...
