BenQ Xl2410t User Manual

  21   Getting the most from your BenQ monitor

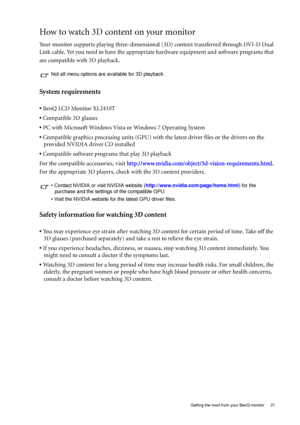

How to watch 3D content on your monitor
Your monitor supports playing three-dimensional (3D) content transferred through DVI-D Dual
Link cable. Yet you need to have the appropriate hardware equipment and software programs that
are compatible with 3D playback.
System requirements
• BenQ LCD Monitor XL2410T
• Compatible 3D glasses
• PC with Microsoft Windows Vista or Windows 7 Operating System
• Compatible graphics processing units (GPU) with the latest...

22  Picture optimization
5. Picture optimization
The easiest way to obtain an optimal display from an analog (D-Sub) input is to use the AUTO key
function. Press the
AUTO key to optimize the currently displayed image to the screen.
When you connect a digital video output using a digital (DVI or HDMI) cable to your monitor,
the
AUTO key and the Auto Adjustment function will be disabled, because the monitor will
automatically display the best image.
Please ensure that the connected graphic card on...

  23   How to adjust your monitor

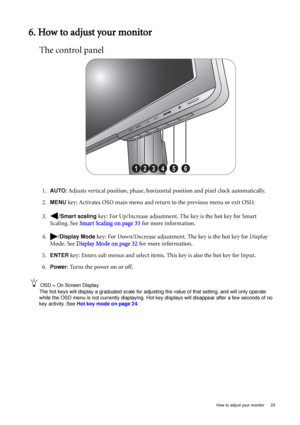

6. How to adjust your monitor
The control panel
1.AUTO: Adjusts vertical position, phase, horizontal position and pixel clock automatically.
2.
MENU key: Activates OSD main menu and return to the previous menu or exit OSD.
3. /
Smart scaling key: For Up/Increase adjustment. The key is the hot key for Smart
Scaling. See Smart Scaling on page 33 for more information.
4. /
Display Mode key: For Down/Decrease adjustment. The key is the hot key for Display
Mode. See Display...

24  How to adjust your monitor

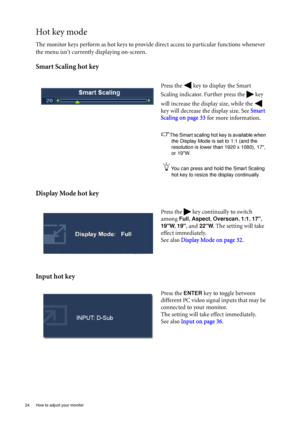

Hot key mode
The monitor keys perform as hot keys to provide direct access to particular functions whenever
the menu isnt currently displaying on-screen.
Smart Scaling hot key
Display Mode hot key
Input hot key
Press the   key to display the Smart
Scaling indicator. Further press the   key
will increase the display size, while the
key will decrease the display size. See Smart
Scaling on page 33 for more information.
The Smart scaling hot key is available when
the...

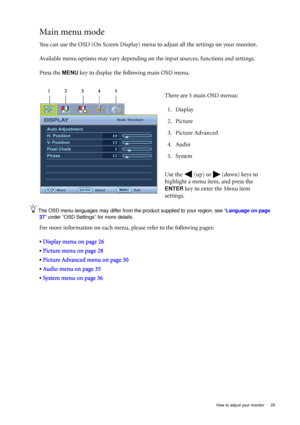

  25   How to adjust your monitor
Main menu mode
You can use the OSD (On Screen Display) menu to adjust all the settings on your monitor.
Available menu options may vary depending on the input sources, functions and settings.
Press the
MENU key to display the following main OSD menu.
The OSD menu languages may differ from the product supplied to your region, see “Language on page
37” under “OSD Settings” for more details.
For more information on each menu, please refer to the following pages:
•...

26  How to adjust your monitor

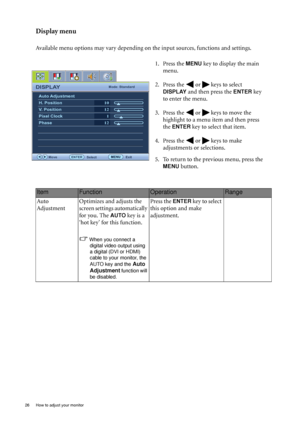

Display menu
Available menu options may vary depending on the input sources, functions and settings.
1. Press the
MENU key to display the main
menu.
2. Press the   or   keys to select
DISPLAY and then press the ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU...

  27   How to adjust your monitor

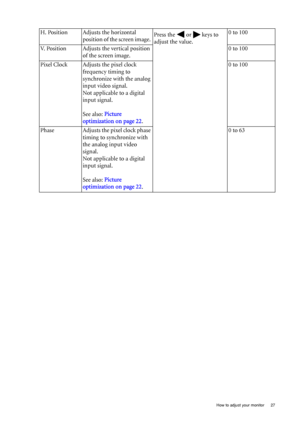

H. Position Adjusts the horizontal
position of the screen image. Press the   or   keys to
adjust the value.0 to 100
V. Position Adjusts the vertical position
of the screen image.0 to 100
Pixel Clock Adjusts the pixel clock
frequency timing to
synchronize with the analog
input video signal.
Not applicable to a digital
input signal.
See also: Picture
optimization on page 22.0 to 100
Phase Adjusts the pixel clock phase
timing to synchronize with
the analog input...

28  How to adjust your monitor

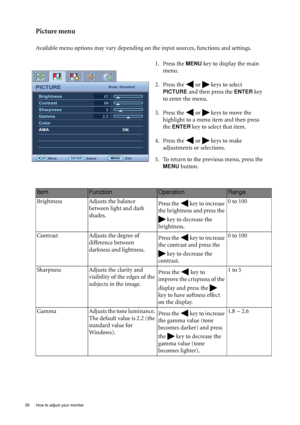

Picture menu
Available menu options may vary depending on the input sources, functions and settings.
1. Press the
MENU key to display the main
menu.
2. Press the   or   keys to select
PICTURE and then press the ENTER key
to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu, press the
MENU...

  29   How to adjust your monitor
Color - Press ENTER to enter the Color menu

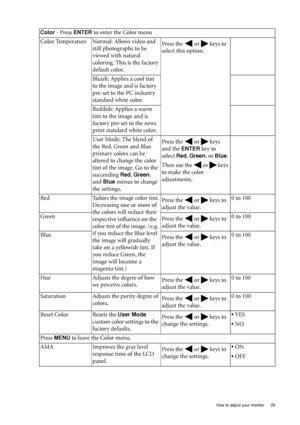

Color Temperature Normal: Allows video and
still photographs to be
viewed with natural
coloring. This is the factory
default color. Press the   or   keys to
select this option.
Bluish: Applies a cool tint
to the image and is factory
pre-set to the PC industry
standard white color.
Reddish: Applies a warm
tint to the image and is
factory pre-set to the news
print standard white color.
User Mode: The blend of
the Red,...

30  How to adjust your monitor

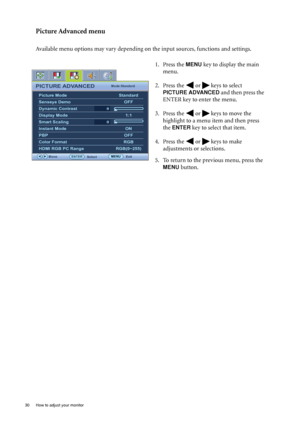

Picture Advanced menu
Available menu options may vary depending on the input sources, functions and settings.
1. Press the
MENU key to display the main
menu.
2. Press the   or   keys to select
PICTURE ADVANCED and then press the
ENTER key to enter the menu.
3. Press the   or   keys to move the
highlight to a menu item and then press
the
ENTER key to select that item.
4. Press the   or   keys to make
adjustments or selections.
5. To return to the previous menu,...
