Boxlight Projector P12 User Manual

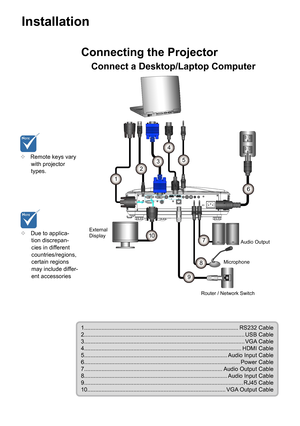

InstallationConnecting the Projector
Connect a Desktop/Laptop Computer
E62405SPR
MOLEX
1
2
4
5
6
3
7
8
9
10
Due to applica-
tion discrepan-
cies in differentcountries/regions,
certain regions
may include differ-
ent accessories

Remote keys vary
with projector
types.
1................................................................................................. RS232 Cable
2..................................................................................................... USB Cable...

E62405SP
R
1
5
6
4
7
3
8
2

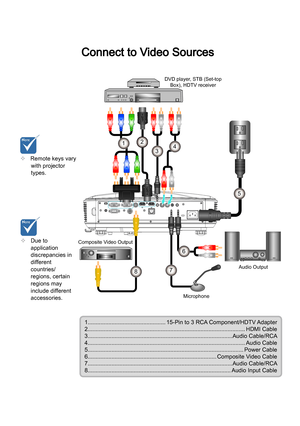

Connect to Video Sources
Due to
application
discrepancies
in
different
countries/
regions, certain
regions may
include different
accessories .
Remote keys vary
with projector
types.
1................................................. 15-Pin to 3 RCA Component/HDTV Adapter2................................................................................................... HDMI Cable...

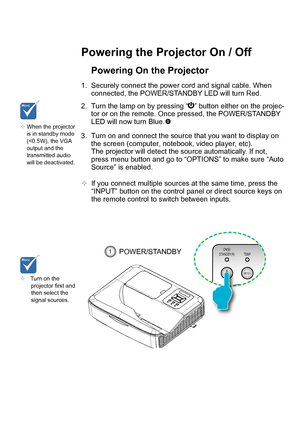

Powering the Projector On / Off
Turn on the
projector first and
then select the
signal sources.
Powering On the Projector 1.
Securely connect the power cord and signal cable. When
connected, the POWER/STANDBY LED will turn Red.
2. Turn the lamp on by pressing  “ ” button either on the projec-
tor or on the remote. Once pressed, the POWER/STANDBY
LED will now turn Blue. 
3. Turn on and connect the source that you want to display  on
the screen (computer, notebook, video player, etc).
The projector will...

Contact the
nearest service
center if the
projector displays
these symptoms.

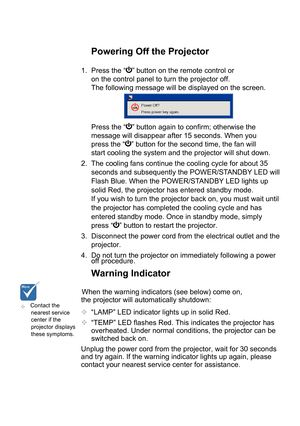

When the warning indicators (see below) come on,
the projector will automatically shutdown: 
“LAMP” LED indicator lights  up in solid Red.
 “TEMP” LED flashes Red. This indicates the projector
has
overheated. Under normal conditions, the projector can
be
switched back on. Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light
s up again, please
contact your nearest...

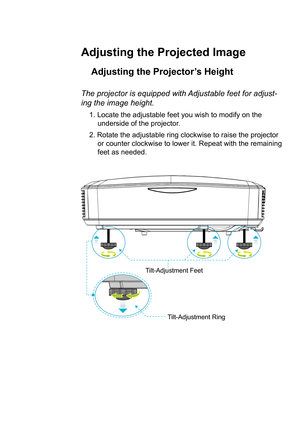

Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with Adjustable feet for adjust-
ing the image height.
1.Locate the adjustable feet you wish to modify on theunderside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring

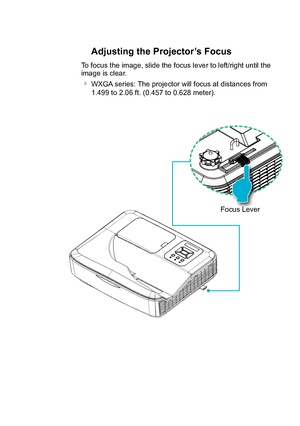

Adjusting the Projector’s Focus
To focus the image, slide the focus lever to left/right until the
image is clear.
 WXGA series: The projector will focus at distances from
1.499 to 2.06 ft. (0.457 to 0.628 meter).
Focus Lever

17

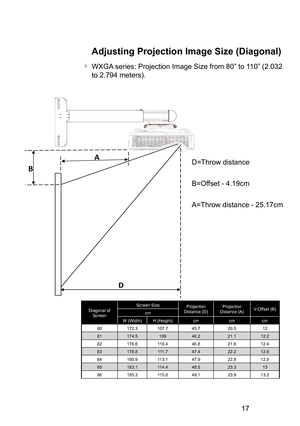

Adjusting Projection Image Size (Diagonal)
 WXGA series: Projection Image Size from 80” to 110” (2.032
to 2.794 meters).
Diagonal of Screen Screen Size
Projection
Distance (D) Projection
Distance (A) V-Offset (B)
cm
W (Width) H (Height) cm cmcm
80 172.3 107.7 45.720.512
81 174.5 109 46.2 21.112.2
82 176.6 110.4 46.821.612.4
83 178.8 111 . 7 47.4 22.212.6
84 180.9 113.1 47.922.812.8
85 183.1 114.4 48.523.313
86 185.2 115.8 49.123.913.2
B A
D D= Throw distance
B= Offset-
4.19cm
A= Throw distance...

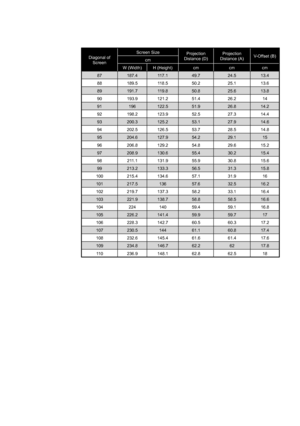

Diagonal of Screen Screen Size
Projection
Distance (D) Projection
Distance (A) V-Offset (B)
cm
W (Width) H (Height) cm cmcm
87 187.4 117.1 49.724.513.4
88 189.5 118.5 50.225.113.6
89 191.7 119.8 50.825.613.8
90 193.9 121.2 51.426.214
91 196122.5 51.9 26.814.2
92 198.2 123.9 52.527.314.4
93 200.3 125.2 53.127.914.6
94 202.5 126.5 53.728.514.8
95 204.6 127.9 54.229.115
96 206.8 129.2 54.829.615.2
97 208.9 130.6 55.430.215.4
98 211.1 131.9 55.930.815.6
99 213.2 133.3 56.531.315.8
100 215.4 134.6...

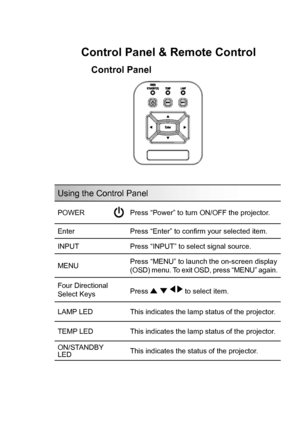

Control Panel
Control Panel & Remote Control
Using the Control Panel
POWERPress “Power” to turn ON/OFF the projector.
Enter  Press “Enter” to confirm your selected item.
INPUT Press “INPUT” to select signal source.
MENU Press “MENU” to launch the on-screen display
(OSD) menu. To exit OSD, press “MENU” again.
Four Directional
Select Keys Press
 to select item.
LAMP LED This indicates the lamp status of the projector.
TEMP LED This indicates the lamp status of the projector.
ON/STANDBY
LED This...

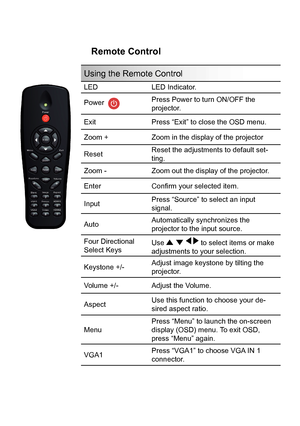

Remote Control
Using the Remote Control
LEDLED Indicator.
Power
Press Power to turn ON/OFF the
projector.
Exit Press “Exit” to close the OSD menu.
Zoom + Zoom in the display of the projector
Reset Reset the adjustments to default set-
ting.
Zoom - Zoom out the display of the projector.
Enter Confirm your selected item.
Input Press “Source” to select an input
signal.
Auto Automatically synchronizes the
projector to the input source.
Four Directional
Select Keys Use
 to select items or make...
