Boxlight Projector P12 User Manual

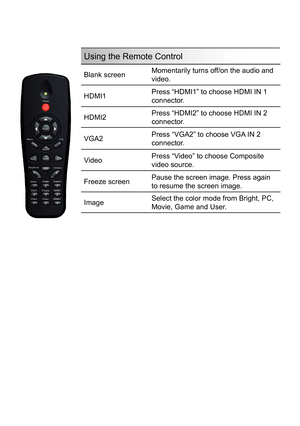

Using the Remote Control
Blank screenMomentarily turns off/on the audio and
video.
HDMI1 Press “HDMI1” to choose HDMI IN 1
connector.
HDMI2 Press “HDMI2” to choose HDMI IN 2
connector.
VGA2 Press “VGA2” to choose VGA IN 2
connector.
Video Press “Video” to choose Composite
video source.
Freeze screen Pause the screen image. Press again
to resume the screen image.
Image Select the color mode from Bright, PC,
Movie, Game and User.
User Controls

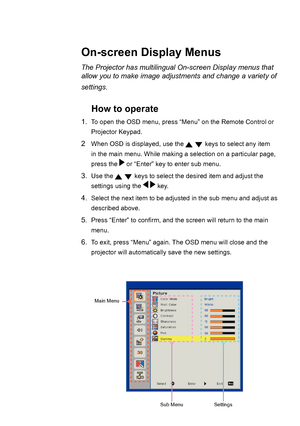

On-screen Display Menus
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings.
How to operate
1.To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use the   keys to select any item
in the main menu. While making a selection on a particular page,
press the
 or “Enter” key to enter sub menu.
3.Use the keys to select the desired item and adjust the
settings using the
 key....

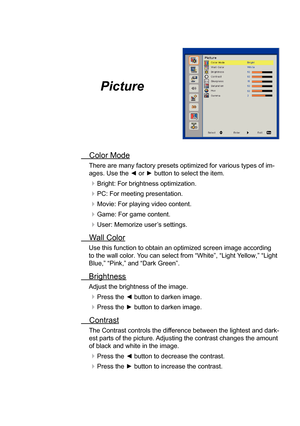

Color ModeThere are many factory presets optimized for various types of im
-
ages. Use the ◄ or ► button to select the item.
Bright: For brightness optimization.
PC: For meeting presentation.
Movie: For playing video content.
Game: For game content.
User: Memorize user’s settings.
Wall Color Use this function to obtain an optimized screen image according
to the wall color.
Y
ou can select from “White”, “Light  Yellow,” “Light
Blue,” “Pink,” and “Dark Green”.
Brightness
Adjust the...

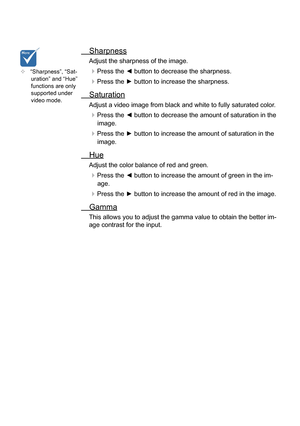

 Sharpness
Adjust the sharpness of the image.
Press the ◄ button to decrease the sharpness.
Press the ► button to increase the sharpness.
 Saturation
Adjust a video image from black and white to fully saturated color.
Press the ◄ button to decrease the amount of saturation in the
image.
Press the ► button to increase the amount of saturation in the image.
 Hue
Adjust the color balance of red and green.
Press the ◄ button to increase the amount of green in the im -
age.
Press the ► button to...

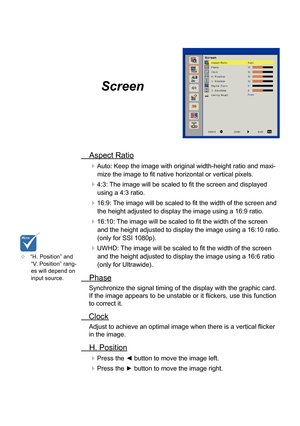

Screen
Aspect Ratio
Auto: Keep the image with original width-height ratio and maxi-
mize the image to fit native horizontal or vertical pixels.
4:3: The image will be scaled to fit the screen and displayed  using a 4:3 ratio.
16:9: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:9 ratio.
16:10: The image will be scaled to fit the width of the screen and the height adjusted to display the image using a 16:10 ratio.
(only for SSI 1080p)....

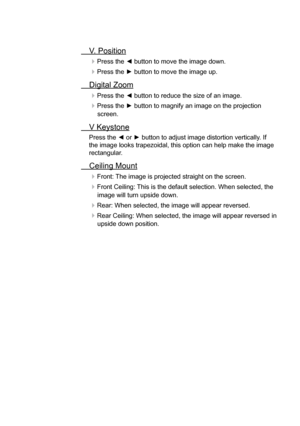

V. Position
Press the ◄ button to move the image down.
Press the ► button to move the image up.
Digital Zoom
Press the ◄ button to reduce the size of an image.
Press the ► button to magnify an image on the projection screen.
V Keystone
Press the ◄ or ► button to adjust image distortion vertically. If
the image looks trapezoidal, this option can help make the image
rectangular.
Ceiling Mount
Front: The image is projected straight on the screen.
Front Ceiling: This is the default selection. When...

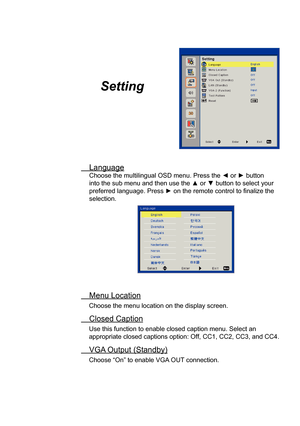

Setting
 Language
Choose the multilingual OSD menu. Press the ◄ or ► button
into the sub menu and then use the ▲ or ▼ button to select your
preferred language. Press ► on the remote control to finalize the
selection.
Menu LocationChoose the menu location on the display screen.
Closed Caption
Use this function to enable close d caption menu. Select an
appropri ate closed captions option: Off, CC1, CC2, CC3, and CC4.
VGA Output (Standby)
Choose “On” to enable VGA  OUT connection.
User Controls

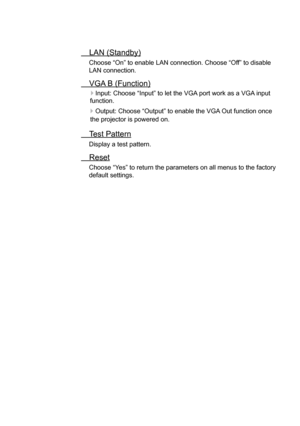

LAN (Standby)
Choose “On” to enable LAN connection. Choose “Off” to disable
LAN connection.
VGA B (Function)

Input: Choose “Input” to let the VGA port work as a VGA
input
function.
    Output: Choose “Output” to enable the VGA Out function once
the projector is powered on.
Test Pattern
Display a test pattern.
 Reset
Choose “Yes” to return the parameters on all menus to the factory
default settings. 
User Controls

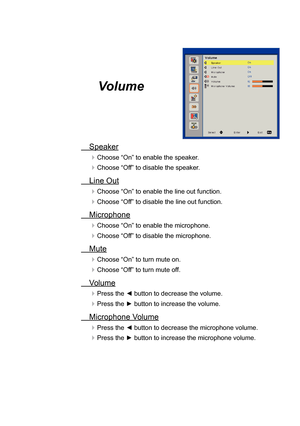

Volume
Speaker
Choose “On” to enable the speaker.
Choose “Off” to disable the speaker.
Line Out
Choose “On” to enable the line out function.
Choose “Off” to disable the line out function.
 Microphone
Choose “On” to enable the microphone.
Choose “Off” to disable the microphone.
 Mute
Choose “On” to turn mute on.
Choose “Off” to turn mute off.
 Volume
Press the ◄ button to decrease the volume.
Press the ► button to increase the volume.
Microphone Volume
Press the ◄ button to decrease the...

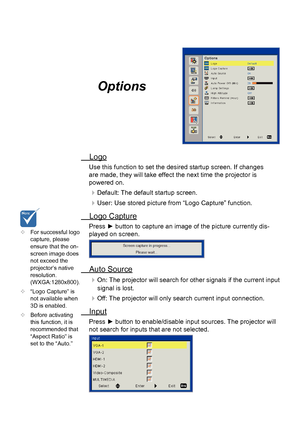

Options
 LogoUse this function to set the desired startup screen. If changes
are made, they will take effect the next time the projector is
powered
on.
Default: The default startup screen.
User: Use stored picture from “Logo Capture” function.
Logo Capture
Press ► button to capture an image of the picture currently dis-
played on screen.
Auto Source
On: The projector will search for other signals if the current input
signal is lost.
Off: The projector will only search current input connection....
