Boxlight Projectowrite 2 User Manual

28
MENU (Video Mode)

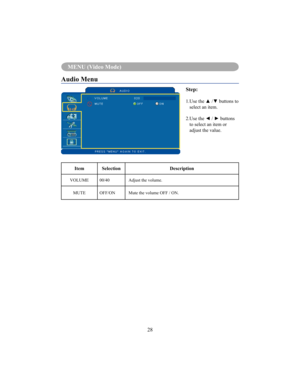

Audio MenuStep:
1. Use the  / buttons to
select an item.
2. Use the  /  buttons  to select an item or
adjust the value.
Item Selection Description
VOLUME 00/40 Adjust the volume.
MUTE OFF/ON Mute the volume OFF / ON.

29
MENU (Video Mode)

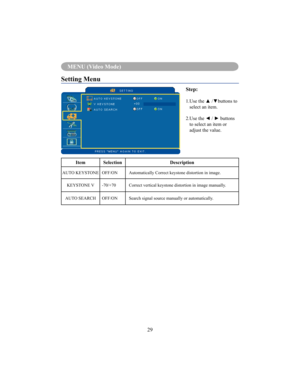

Setting MenuStep:
1. Use the  /buttons to select an item.
2. Use the  /  buttons  to select an item or
adjust the value.
Item Selection Description
AUTO KEYSTONE OFF/ON Automatically Correct keystone distortion in image.
KEYSTONE V -70/+70 Correct vertical keystone distortion in image manually.
AUTO SEARCH OFF/ON Search signal source manually or automatically.

MENU
30
MENU

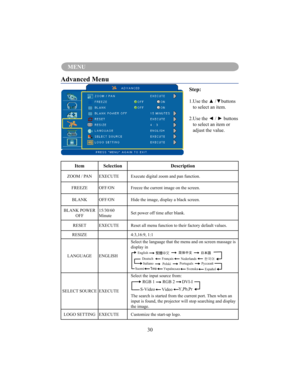

Advanced MenuStep:
1. Use the  /buttons to select an item.
2. Use the  /  buttons  to select an item or
adjust the value.
Item Selection Description
ZOOM / PAN EXECUTE Execute digital zoom and pan function.
FREEZE OFF/ON Freeze the current image on the screen.
BLANK OFF/ON Hide the image, display a black screen.
BLANK POWER OFF 15/30/60
Minute
Set power off time after blank.
RESET EXECUTE Reset all menu function to their factory default values.
RESIZE 4:3,16:9, 1:1
LANGUAGE ENGLISH...

31
MENU

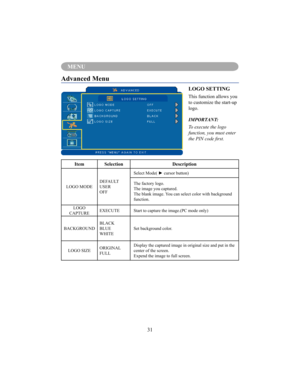

Advanced MenuLOGO SETTING
This function allows you
to customize the start-up
logo.
IMPORTANT:
To execute the logo
function, you must enter
the PIN code rst.
Item Selection Description
LOGO MODEDEFAULT
USER
OFF Select Mode(  cursor button)
The factory logo.
The image you captured.
The blank image. You can select color with background
function.
LOGO
CAPTURE EXECUTE Start to capture the image.(PC mode only)
BACKGROUND BLACK
BLUE
WHITESet background color.
LOGO SIZE ORIGINAL
FULL...

32
MENU
NOTE  To capture an image is available only in computer mode.
  The area that can be captured is 512 x 384 dots.

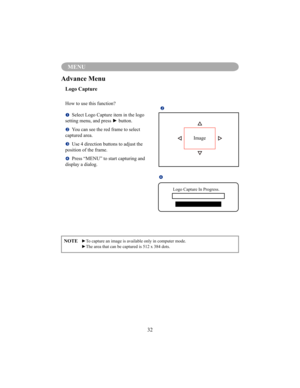

Advance Menu
Logo Capture
How to use this function?
 Select Logo Capture item in the logo
setting menu, and press  button.
  You can see the red frame to select
captured area.
  Use 4 direction buttons to adjust the
position of the frame.
  Press “MENU” to start capturing and
display a dialog.


Logo Capture In Progress.

33
MENU

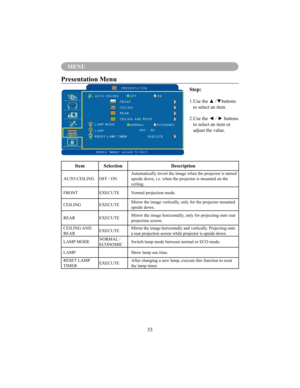

Presentation MenuStep:
1. Use the  /buttons to select an item.
2. Use the  /  buttons  to select an item or
adjust the value.
Item Selection Description
AUTO CEILING OFF / ON Automatically invert the image when the projector is turned
upside down, i.e. when the projector is mounted on the
ceiling.
FRONT EXECUTE Normal projection mode.
CEILING EXECUTE Mirror the image vertically, only for the projector mounted
upside down.
REAR EXECUTE Mirror the image horizontally, only for projecting...

34
MENU
NOTE
  The replacement warning message is set to appear after about 2000 hours of lamp use in order to maintain the initial brightness. When replacement message appears, replace the lamp with a
new one as soon as possible, even if the lamp is still workable.

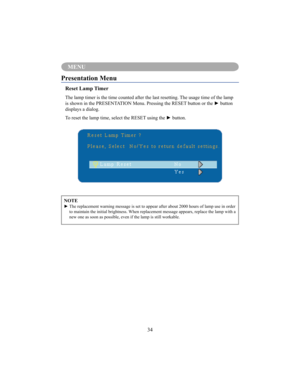

Presentation Menu
Reset Lamp Timer
The lamp timer is the time counted after the last resetting. The usage time of the lamp
is shown in the PRESENTATION Menu. Pressing the RESET button or the  button
displays a dialog.
To reset the lamp...

35
MENU

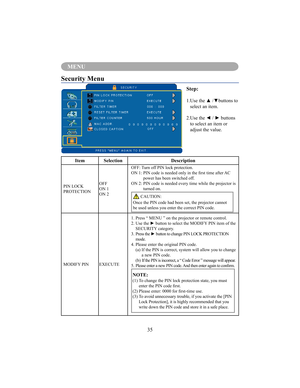

Security MenuStep:
1. Use the  /buttons to select an item.
2. Use the  /  buttons  to select an item or
adjust the value.
Item Selection Description
PIN LOCK
PROTECTION OFF
ON 1
ON 2OFF: Turn off PIN lock protection.
ON 1:  PIN code is needed only in the rst time after AC
power has been switched off.
ON 2:  PIN code is needed every time while the projector is
turned on.
 CAUTION:
Once the PIN code had been set, the projector cannot
be used unless you enter the correct PIN code....

36
MENU

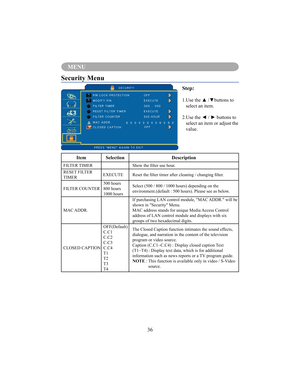

Security MenuStep:
1. Use the  /buttons to select an item.
2. Use the  /  buttons to  select an item or adjust the
value.
Item Selection Description
FILTER TIMER Show the lter use hour.
RESET FILTER
TIMER  EXECUTE
Reset the lter timer after cleaning / changing lter.
FILTER COUNTER 500 hours
800 hours
1000 hoursSelect (500 / 800 / 1000 hours) depending on the
environment.(default : 500 hours). Please see as below.
MAC ADDR. If purchasing LAN control module, MAC ADDR. will be
shown in...

37
MENU
NOTE
 Please reset the Filter time only when you replace the lter.

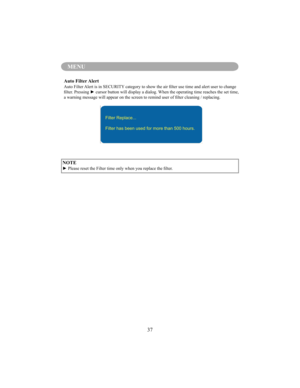

Auto Filter Alert
Auto Filter Alert is in SECURITY category to show the air lter use time and alert user to change
lter. Pressing  cursor button will display a dialog. When the operating time reaches the set time,
a warning message will appear on the screen to remind user of lter cleaning / replacing.
Filter Replace...
Filter has been used for more than 500 hours.
