Boxlight Projectowrite 2 User Manual

ii
Interactive Projector Packing ListAccessories Introduction

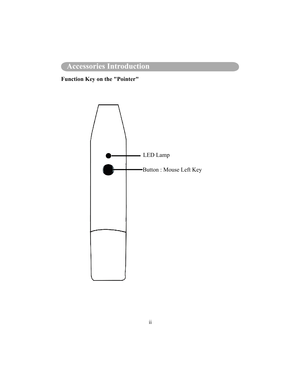

Function Key on the PointerLED Lamp
Button : Mouse Left Key

iii
Interactive Projector Packing ListAccessories Introduction

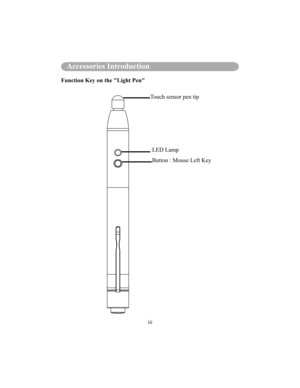

Function Key on the Light Pen
Touch sensor pen tipLED Lamp
Button : Mouse Left Key

iv

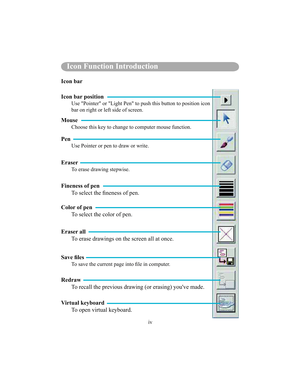

Interactive Projector Packing ListIcon Function Introduction
Icon bar
Icon bar position
Use Pointer or Light Pen to push this button to position icon
bar on right or left side of screen.
Mouse
Choose this key to change to computer mouse function.
Pen
Use Pointer or pen to draw or write.
Eraser
To erase drawing stepwise.
Fineness of penTo select the neness of pen.
Color of pen To select the color of pen.
Eraser all To erase drawings on the screen all at once.
Save les
To save the current page into le...

1
Installation Guide for Window OS
1. System RequirementsTo ensure the interactive function work properly, please check your
computer to see if it meets the following conditions.
System Requirements
OS Required Microsoft Window 2000(SP4)/XP(SP2)/Vista
Processor Type Intel Pentium IV or above
RAM 256 MB above
Min. Free disk space 30 MB
CD-ROM Driver & USB 2.0 port available
2.  LightPen Software Installation
Step 1:   Insert the Installation Disc to the CD-ROM or DVD-ROM  player.
Step 2: Copy LightPen...

2
Installation Guide for Window OS
Note!
Notice for Vista System Setting: (Dont need to set up in XP)

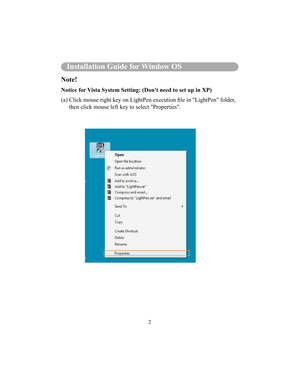

(a)  Click mouse right key on LightPen execution le in LightPen folder, then click mouse left key to select Properties.

3
Installation Guide for Window OS

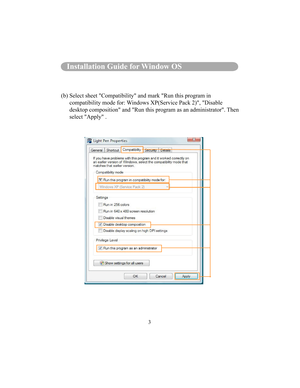

(b)  Select sheet Compatibility and mark Run this program in compatibility mode for: Windows XP(Service Pack 2), Disable
desktop composition and Run this program as an ad ministrator. Then
select Apply .
v

4
Installation Guide for Window OS

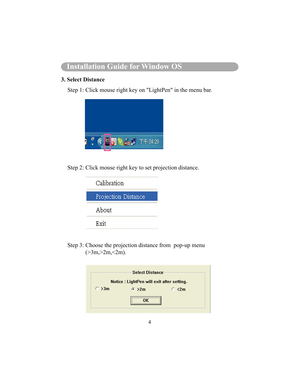

3. Select DistanceStep 1: Click mouse right key on LightPen in the menu bar.
Step 2: Click mouse right key to set projection distance.
Step 3:  Choose the projection distance from  pop-up menu  (>3m,>2m,

5
Installation Guide for Window OS
4. CalibrationStep 1: Click LightPen.
Step 2 :  Select  LightPen  from  Tray  Icon,  then  click  mouse   right  key
and select Calibration.

6
Installation Guide for Window OS

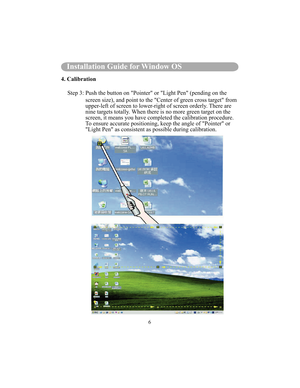

4. CalibrationStep 3:  Push the button on Pointer or Light Pen (pending on the  screen size), and point to the Center of green cross target from
upper-left of screen to lower-right of screen orderly. There are
nine targets totally. When there is no more green target on the
screen, it means you have completed the calibration procedure.
To ensure accurate positioning, keep the angle of Pointer or
Light Pen as consistent as possible during calibration.

7
Installation Guide for Window OS

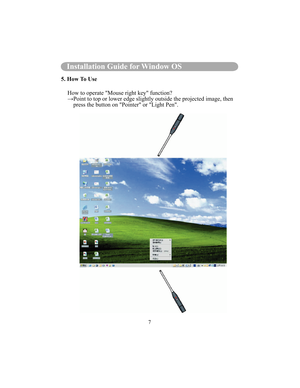

5. How To UseHow to operate Mouse right key function?
 Point to top or lower edge slightly outside the projected image, then press the button on Pointer or Light Pen.
