Canon Maxify Mb5020 User Guide

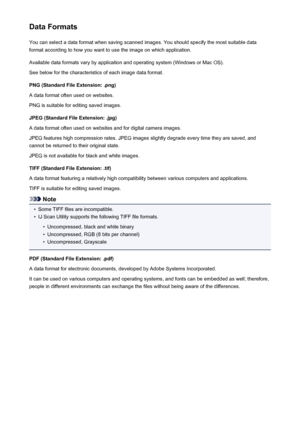

Data FormatsYou can select a data format when saving scanned images. You should specify the most suitable data
format according to how you want to use the image on which application.
Available data formats vary by application and operating system (Windows or Mac OS).
See below for the characteristics of each image data format.
PNG (Standard File Extension: .png)
A data format often used on websites.
PNG is suitable for editing saved images.
JPEG (Standard File Extension: .jpg)
A data format often used on...

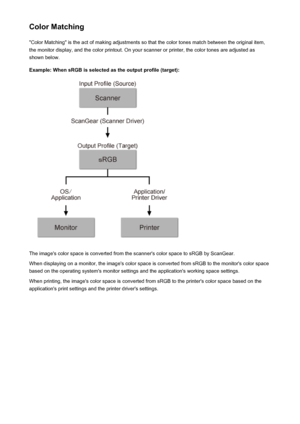

Color Matching"Color Matching" is the act of making adjustments so that the color tones match between the original item,
the monitor display, and the color printout. On your scanner or printer, the color tones are adjusted as shown below.
Example: When sRGB is selected as the output profile (target):
The image's color space is converted from the scanner's color space to sRGB by ScanGear.
When displaying on a monitor, the image's color space is converted from sRGB to the monitor's...

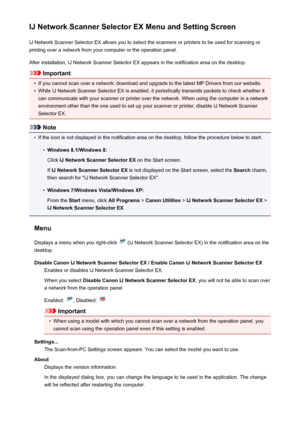

IJ Network Scanner Selector EX Menu and Setting ScreenIJ Network Scanner Selector EX allows you to select the scanners or printers to be used for scanning or
printing over a network from your computer or the operation panel.
After installation, IJ Network Scanner Selector EX appears in the notification area on the desktop.
Important
•
If you cannot scan over a network, download and upgrade to the latest MP Drivers from our website.
•
While IJ Network Scanner Selector EX is enabled, it periodically...

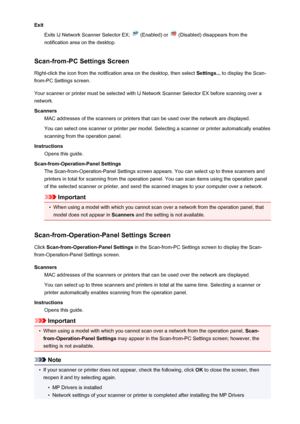

ExitExits IJ Network Scanner Selector EX;
 (Enabled) or  (Disabled) disappears from the
notification area on the desktop.
Scan-from-PC Settings Screen Right-click the icon from the notification area on the desktop, then select  Settings... to display the Scan-
from-PC Settings screen.
Your scanner or printer must be selected with IJ Network Scanner Selector EX before scanning over a
network.
Scanners MAC addresses of the scanners or printers that can be used over the network are displayed.
You can...

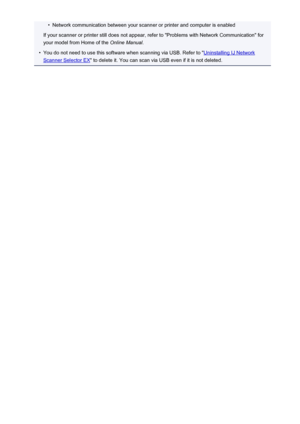

•Network communication between your scanner or printer and computer is enabled
If your scanner or printer still does not appear, refer to "Problems with Network Communication" for
your model from Home of the  Online Manual.•
You do not need to use this software when scanning via USB. Refer to "Uninstalling IJ Network
Scanner Selector EX " to delete it. You can scan via USB even if it is not deleted.
735

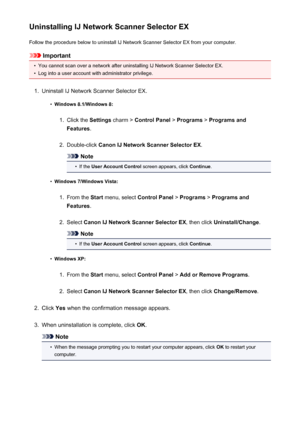

Uninstalling IJ Network Scanner Selector EXFollow the procedure below to uninstall IJ Network Scanner Selector EX from your computer.
Important
•
You cannot scan over a network after uninstalling IJ Network Scanner Selector EX.
•
Log into a user account with administrator privilege.
1.
Uninstall IJ Network Scanner Selector EX.
•
Windows 8.1/Windows 8:
1.
Click the  Settings charm >  Control Panel  > Programs  > Programs and
Features .
2.
Double-click  Canon IJ Network Scanner Selector EX .
Note
•
If the...

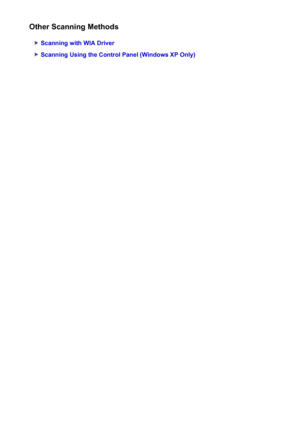

Other Scanning Methods
Scanning with WIA Driver
Scanning Using the Control Panel (Windows XP Only)
737

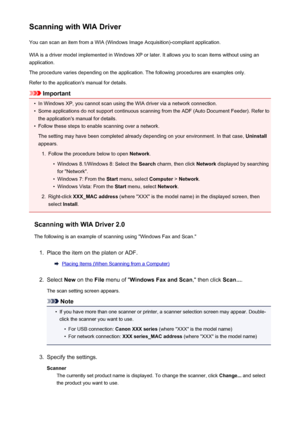

Scanning with WIA DriverYou can scan an item from a WIA (Windows Image Acquisition)-compliant application.
WIA is a driver model implemented in Windows XP or later. It allows you to scan items without using an
application.
The procedure varies depending on the application. The following procedures are examples only.
Refer to the application's manual for details.
Important
•
In Windows XP, you cannot scan using the WIA driver via a network connection.
•
Some applications do not support continuous...

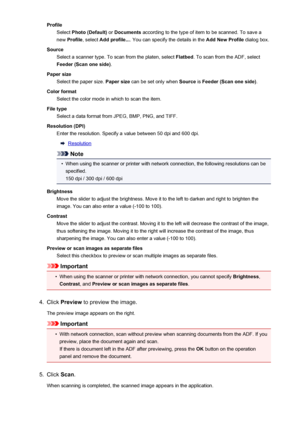

ProfileSelect  Photo (Default)  or Documents  according to the type of item to be scanned. To save a
new  Profile , select  Add profile... . You can specify the details in the  Add New Profile dialog box.
Source Select a scanner type. To scan from the platen, select  Flatbed. To scan from the ADF, select
Feeder (Scan one side) .
Paper size Select the paper size.  Paper size can be set only when  Source is Feeder (Scan one side) .
Color format Select the color mode in which to scan the item.
File type...

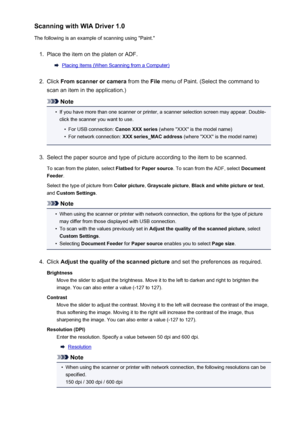

Scanning with WIA Driver 1.0
The following is an example of scanning using "Paint."1.
Place the item on the platen or ADF.
Placing Items (When Scanning from a Computer)
2.
Click  From scanner or camera  from the File menu of Paint. (Select the command to
scan an item in the application.)
Note
•
If you have more than one scanner or printer, a scanner selection screen may appear. Double-
click the scanner you want to use.
•
For USB connection:  Canon XXX series (where "XXX" is the model...
